Achromatic Depolarizers
Two Wedged Prisms: Made from birefringent materials with a 45° offset.
Variable Path Lengths: The wedges cause varying path lengths through each prism, resulting in net birefringence and a final polarization state dependent on spatial variations.
Randomized Polarization: Converts polarized light into a pseudo-polarized state, ideal for beams of large diameter.
Crystal Quartz Construction: Durable and reliable material with excellent optical properties.
Applications: Optical Systems, Scientific Instruments, Laser Systems, etc.

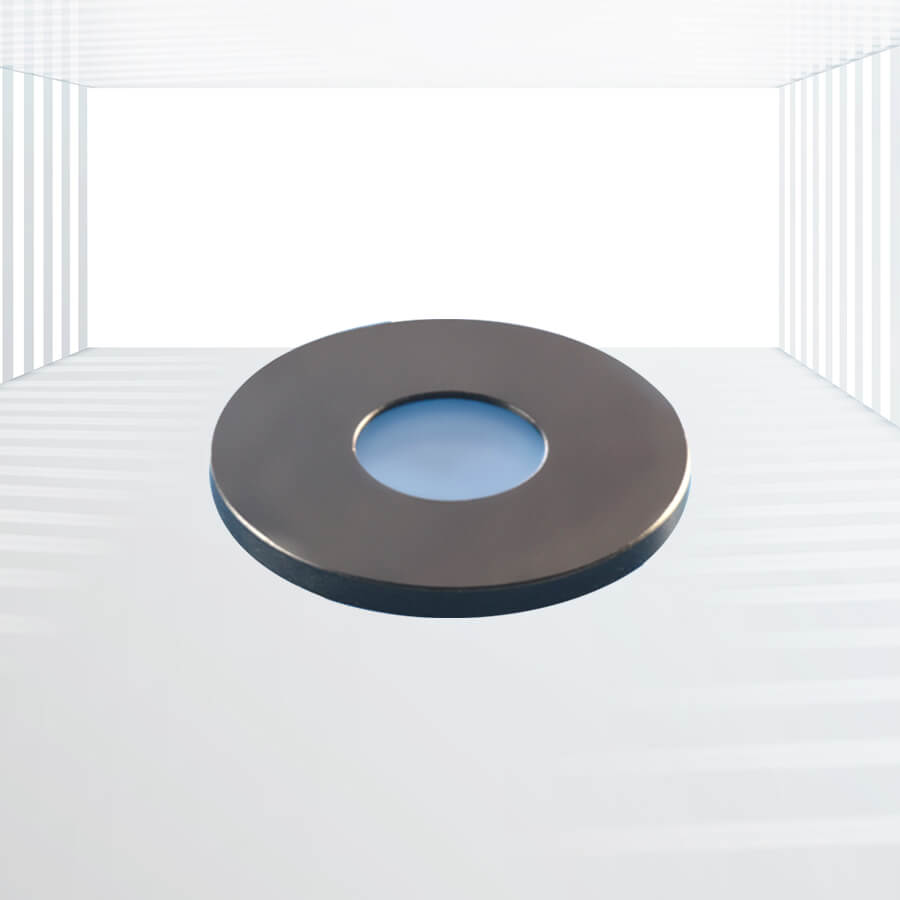

An Achromatic Depolarizer is a sophisticated optical component that consists of two wedged prisms made of birefringent materials, typically crystal quartz, with their fast axes aligned at a 45° angle to each other. One prism is twice as thick as the other. This design transforms polarized light into a pseudo-polarized state, meaning the polarization of the incident beam is randomized rather than converted into a completely unpolarized state.
Specifications:
| Material | Quartz 200-2500nm |
| Dimension Tolerance | ±0.2mm |
| Surface Quality | Better than 60/40 S/D |
| Beam Deviation | <3 arc minutes |
| Wavefront Distortion | <λ/4@632.8nm |
| Clear Aperture | >90% central |
| Coating | Uncoated, AR coating available |
Features:
- Two Wedged Prisms: Made from birefringent materials with a 45° offset.
- Variable Path Lengths: The wedges cause varying path lengths through each prism, resulting in net birefringence and a final polarization state dependent on spatial variations.
- Randomized Polarization: Converts polarized light into a pseudo-polarized state, ideal for beams of large diameter.
- Crystal Quartz Construction: Durable and reliable material with excellent optical properties.
Applications:
- Optical Systems: Used in systems requiring depolarization of light to reduce polarization-related artifacts.
- Scientific Instruments: Suitable for experiments and devices where light polarization needs to be controlled or randomized.
- Laser Systems: Ideal for applications involving large diameter beams and varying polarization states.
Kingwin Optics provides high-quality Achromatic Depolarizers designed for precision and reliability in various optical applications. For more information or to check the availability of Achromatic Depolarizers, please visit our website.
