BBO Crystals for EO Applications

Exceptional Laser Power Handling: Beta BBO crystals can handle high laser power levels, making them suitable for demanding laser applications.

High Damage Threshold: With a high damage threshold, Beta BBO crystals can withstand intense laser pulses without degradation.

Temperature Stability: Beta BBO crystals exhibit excellent temperature stability, ensuring reliable performance even in thermally challenging environments.

Minimal Piezoelectric Ringing: The low piezoelectric ringing of Beta BBO crystals reduces unwanted vibrations and noise in laser systems.

Applications: High Repetition Rate Q-Switching, Pulse Picking, Laser Cavity Dumping, Regenerative Amplifier Control, Beam Chopper, etc.

Beta Barium Borate (Beta BBO) crystals exhibit several significant advantages over other materials, making them highly attractive for a wide range of laser and electro-optic applications. These advantages include exceptional laser power handling abilities, a high damage threshold, temperature stability, and substantial freedom from piezoelectric ringing.

Specifications:

Materials Beta BBO crystals
Size Tolerance L(±0.1mm)W(±0.1mm)H(+0.5/-0.1mm)
Cut Angle Z-Cut
Clear Aperture central 90% or the diameter
Scattering of Crystals No visible scattering paths or centers when inspected by a 50mW green Laser
Flatness less than λ/8 @ 633nm
Transmitting Wavefront Distortion less than λ/8 @ 633nm
Chamfer ≤0.2mmx45°
Chip ≤0.1mm
Surface Quality better than 10/5 S/D (MIL-PRF-13830B)
Parallelism ≤20 arc seconds
Perpendicularity ≤5 arc minutes
Angle Tolerance ≤0.25°
Coating AR/AR on both end surfaces
Cr-Au electrode on two side surfaces
Quarter-wave voltage TBA
Optical Transmission >98%
Typical capacitance 3pf
Damage Threshold >500MW/cm^2 @1064nm, 10nS
Quality Warranty Period one year under proper use



Features:

  • Exceptional Laser Power Handling: Beta BBO crystals can handle high laser power levels, making them suitable for demanding laser applications.
  • High Damage Threshold: With a high damage threshold, Beta BBO crystals can withstand intense laser pulses without degradation.
  • Temperature Stability: Beta BBO crystals exhibit excellent temperature stability, ensuring reliable performance even in thermally challenging environments.
  • Minimal Piezoelectric Ringing: The low piezoelectric ringing of Beta BBO crystals reduces unwanted vibrations and noise in laser systems.

Applications:

  • High Repetition Rate Q-Switching: Beta BBO crystals are ideal for high repetition rate Q-switching applications, enabling precise control of laser pulses.
  • Pulse Picking: With capabilities up to 3 MHz, Beta BBO crystals are suitable for pulse picking applications in laser systems.
  • Laser Cavity Dumping: Beta BBO crystals are effective for laser cavity dumping, allowing for efficient energy extraction from laser resonators.
  • Regenerative Amplifier Control: Beta BBO crystals can be used for regenerative amplifier control, enabling precise amplification of laser pulses.
  • Beam Chopper: Beta BBO crystals are suitable for beam chopper applications, allowing for precise modulation of laser beams.

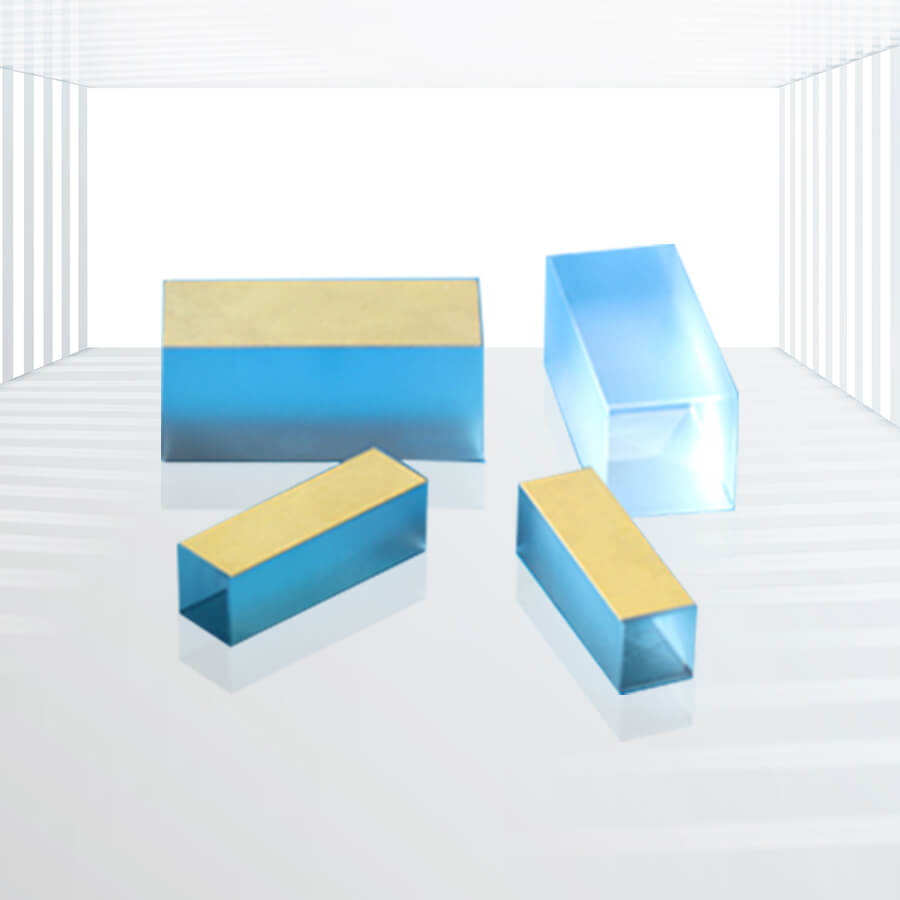

Kingwin Optics offers high-quality Beta BBO crystals for use in Pockels cells. These crystals are precision polished, AR coated, and equipped with Cr-Au electrodes, ensuring optimal performance in laser and electro-optic applications. Stocked crystals of standard specifications are available for immediate selection, and customized special crystals can be provided upon customer request. Additionally, Kingwin Optics offers BBO Pockels cells, providing a complete solution for laser and electro-optic system integration.
