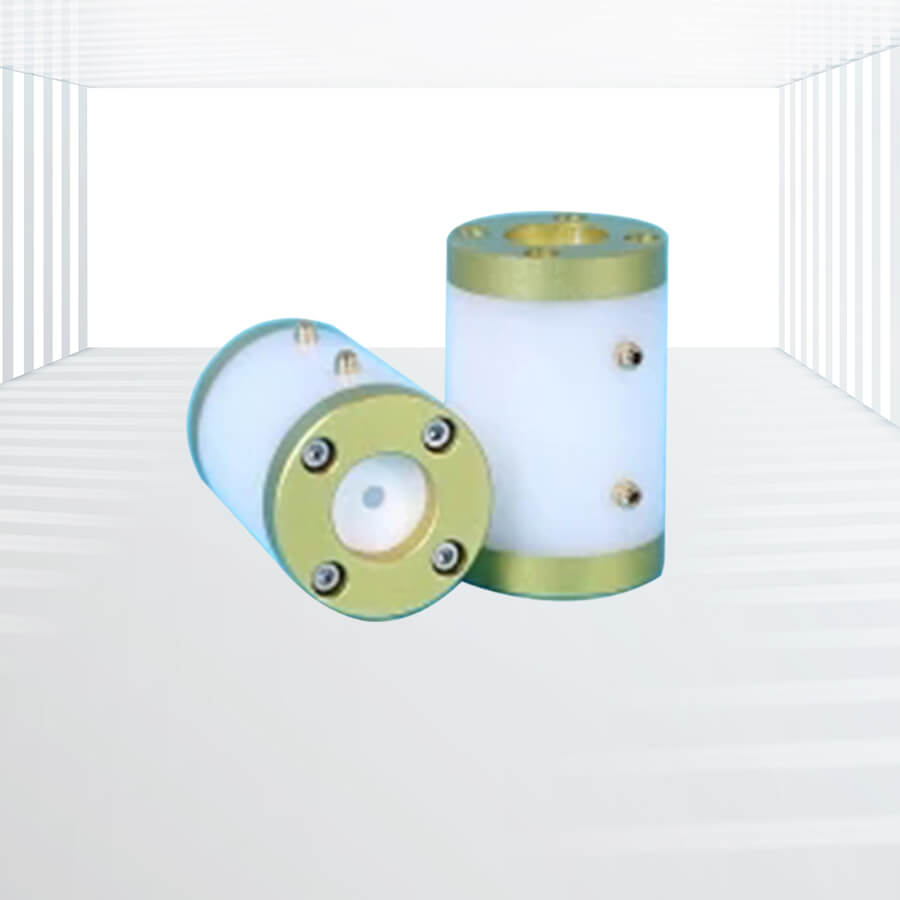

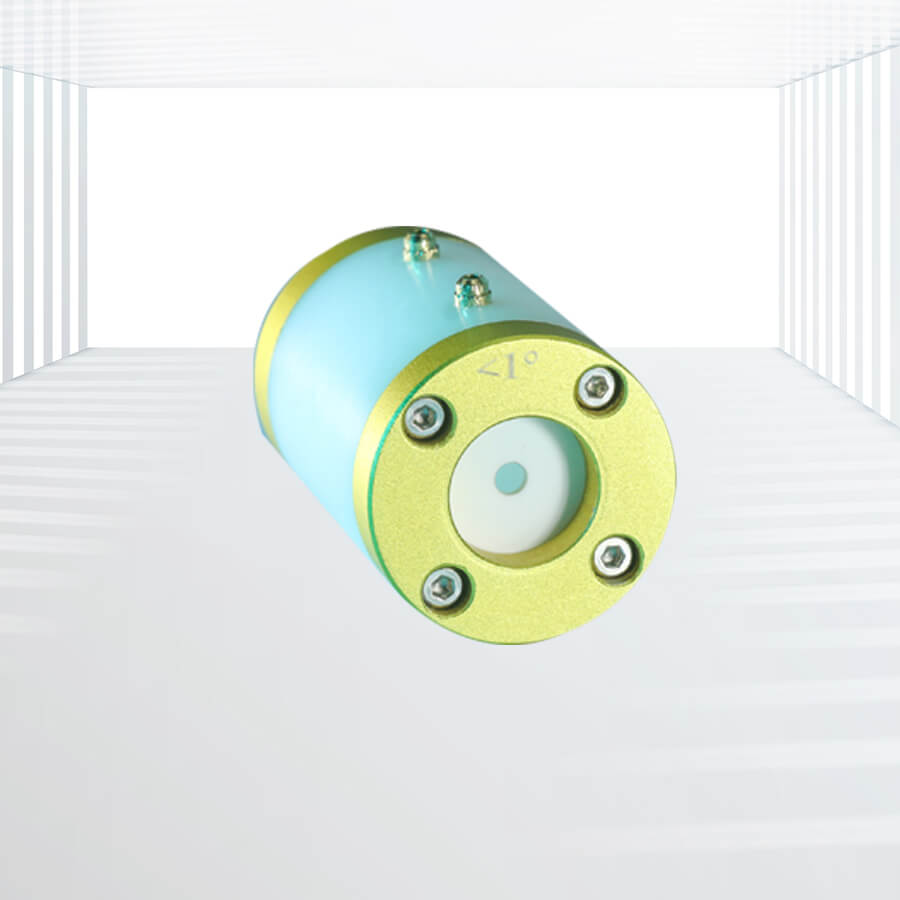

BBO Pockels Cells
High Damage Threshold: Suitable for high power laser applications.
Low Insertion Loss: Ensures efficient light transmission.
High Extinction Ratio: Provides excellent modulation depth.
Minimal Piezoelectric Ringing: Reduces signal distortion at high repetition rates.
Temperature Endurance: Maintains performance across a wide temperature range.
Applications: High Repetition Rate Q-Switching, Pulse Picking, Laser Cavity Dumping, Regenerative Amplifier Control, Beam Chopper, etc.
Beta Barium Borate (BBO) Pockels cells offer superior performance in terms of laser power handling, temperature endurance, and freedom from piezoelectric ringing. These cells are ideal for high repetition rate applications, pulse picking up to 3 MHz, laser cavity dumping, regenerative amplifier control, and beam chopping. BBO Pockels cells outperform KDP Pockels cells in high repetition rate and high power applications due to their low piezoelectric coupling coefficients.
Specifications:
| Aperture | TBA |
| Quarter-wave voltage | 3.4KV |
| Optical Transmission | >98% |
| Damage Threshold | 500MW/cm2 @ 10ns, 1064nm |
| Wavefront Distortion @ 1064 | < Lambda/8 |
| Typical Capacitance | < 3pF |
| Outline Dimension | φ25.4 x 44mm |
Features:
- High Damage Threshold: Suitable for high power laser applications.
- Low Insertion Loss: Ensures efficient light transmission.
- High Extinction Ratio: Provides excellent modulation depth.
- Minimal Piezoelectric Ringing: Reduces signal distortion at high repetition rates.
- Temperature Endurance: Maintains performance across a wide temperature range.
Applications:
- High Repetition Rate Q-Switching: Ideal for generating high-frequency pulses.
- Pulse Picking: Capable of pulse picking at rates up to 3 MHz.
- Laser Cavity Dumping: Efficient for managing laser pulses within the cavity.
- Regenerative Amplifier Control: Controls the amplification process in regenerative amplifiers.
- Beam Chopper: Used for chopping laser beams in various optical setups.
Kingwin Optics provides a range of BBO Pockels cells designed to meet the rigorous demands of high power and high repetition rate laser systems. For more information or to check the availability of BBO Pockels cells, please visit our website.
