Bonding Crystals

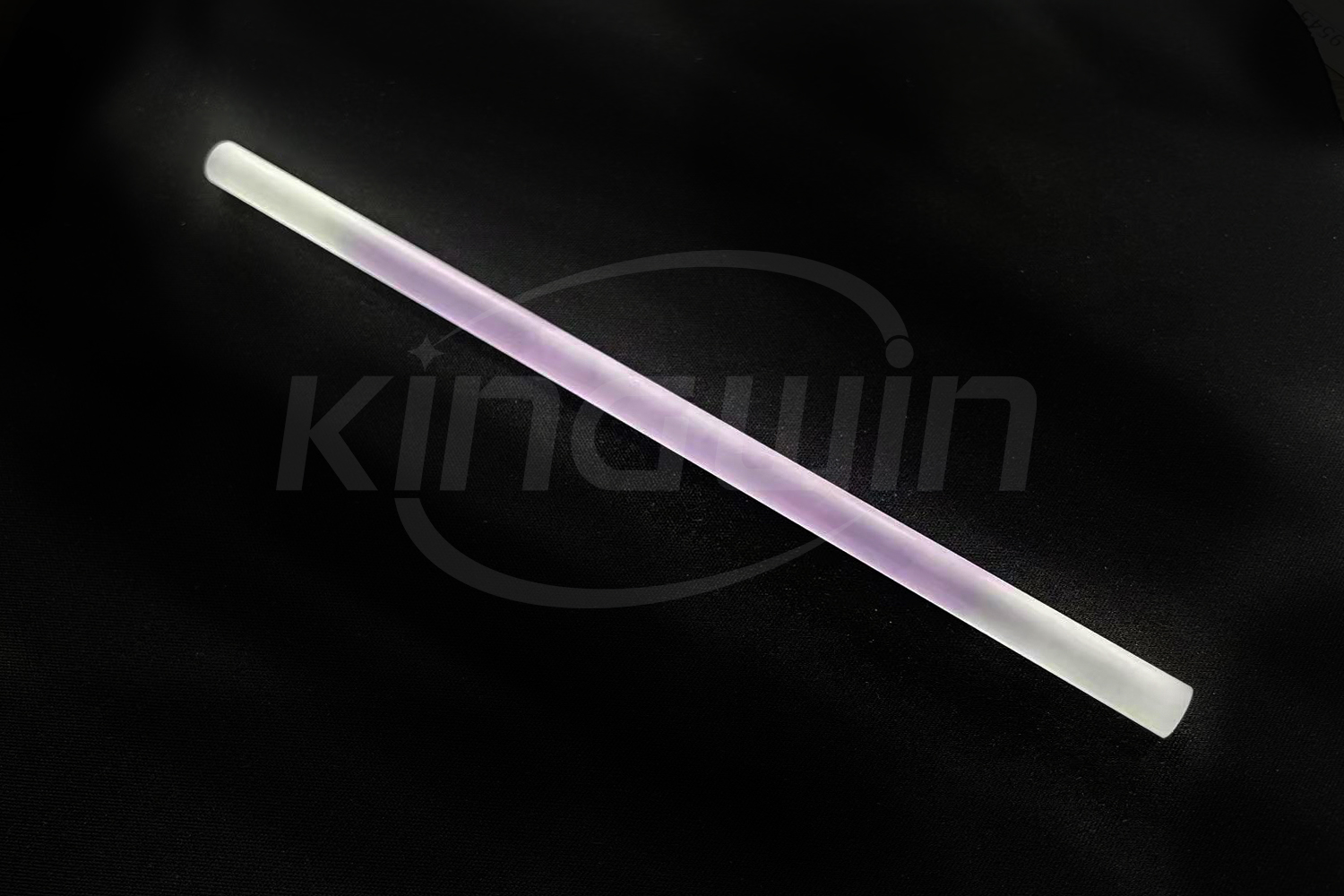

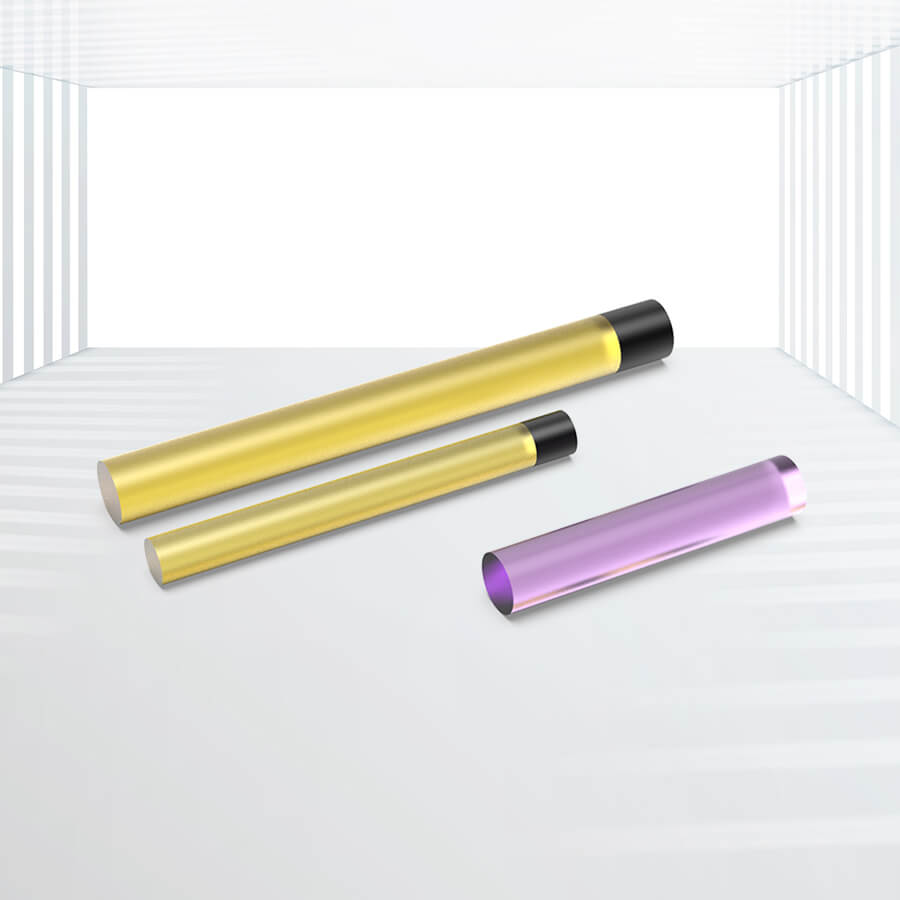

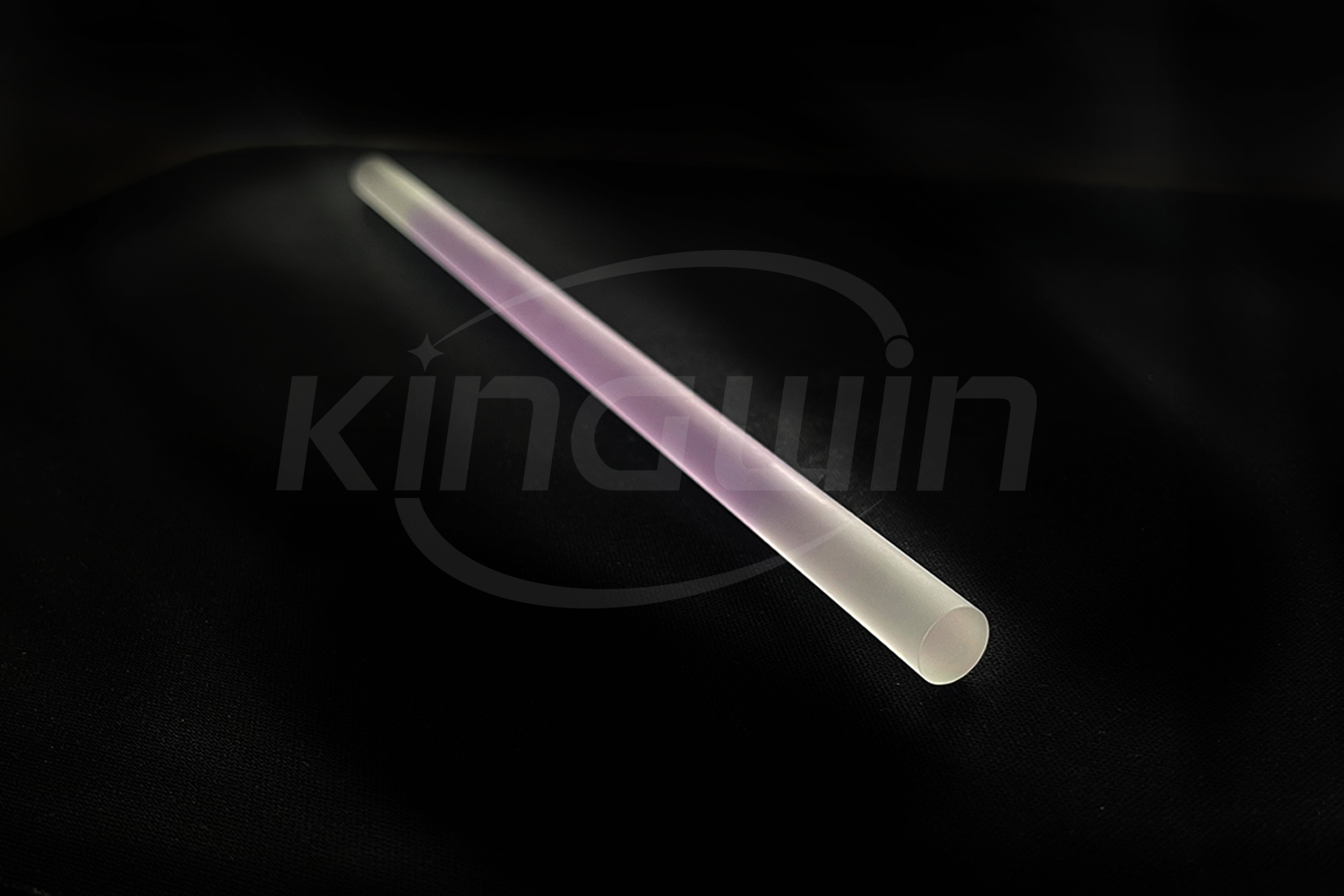

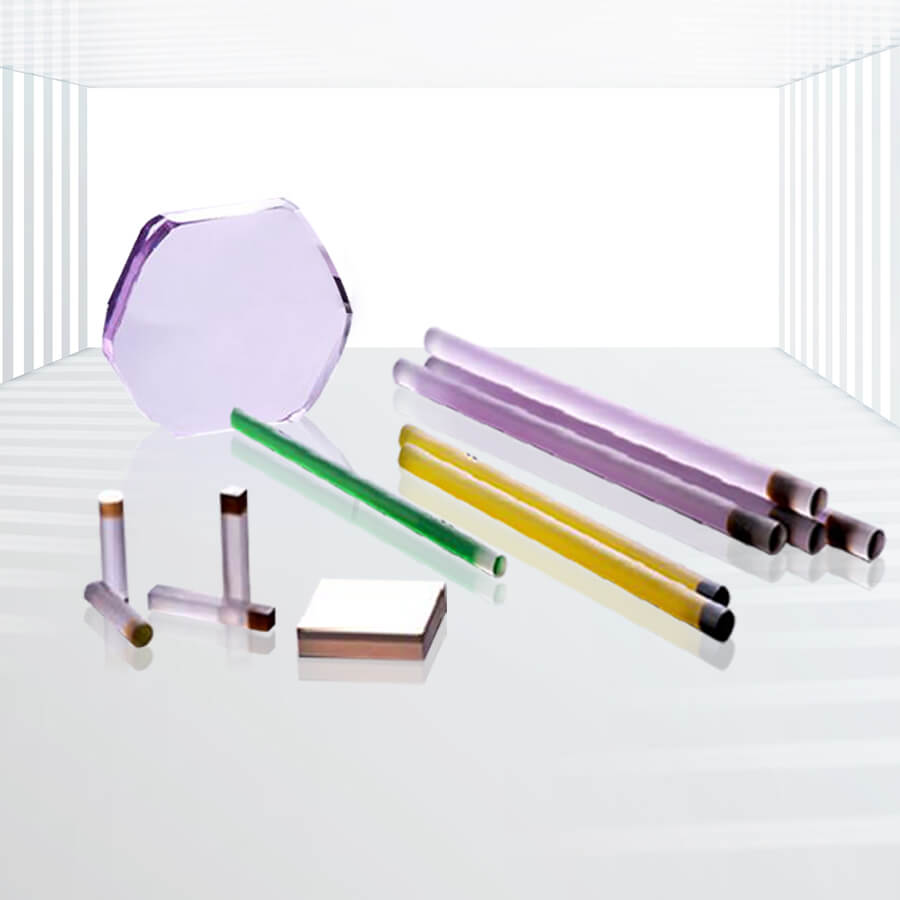

Kingwin Optics offers a wide range of bonded crystals, including: YAG+Nd :YAG, YAG+Cr4+ :YAG, Nd :YAG + Cr4+:YAG, YAG+Nd :YAG+YAG, YAG+Nd:YAG+Cr4+:YAG, YAG+Nd:YAG+Cr4+:YAG+YAG, Cr:YAG+Nd:Ce:YAG, YAG+Cr4+:YAG+Nd:Ce:YAG+YAG, YVO4+Nd:YVO4+YVO4, Glass+Er:Yb:glass+Co2+MgAl204, Yb:YAG-YAG, Tm:YAG-YAG, Er:YAG-YAG, YAG+CTH:YAG+YAG,etc.
Main Feature: Reduce laser rod thermal lensing, Improve beam quality, Make the laser device system more compact, Miniaturized and integrated

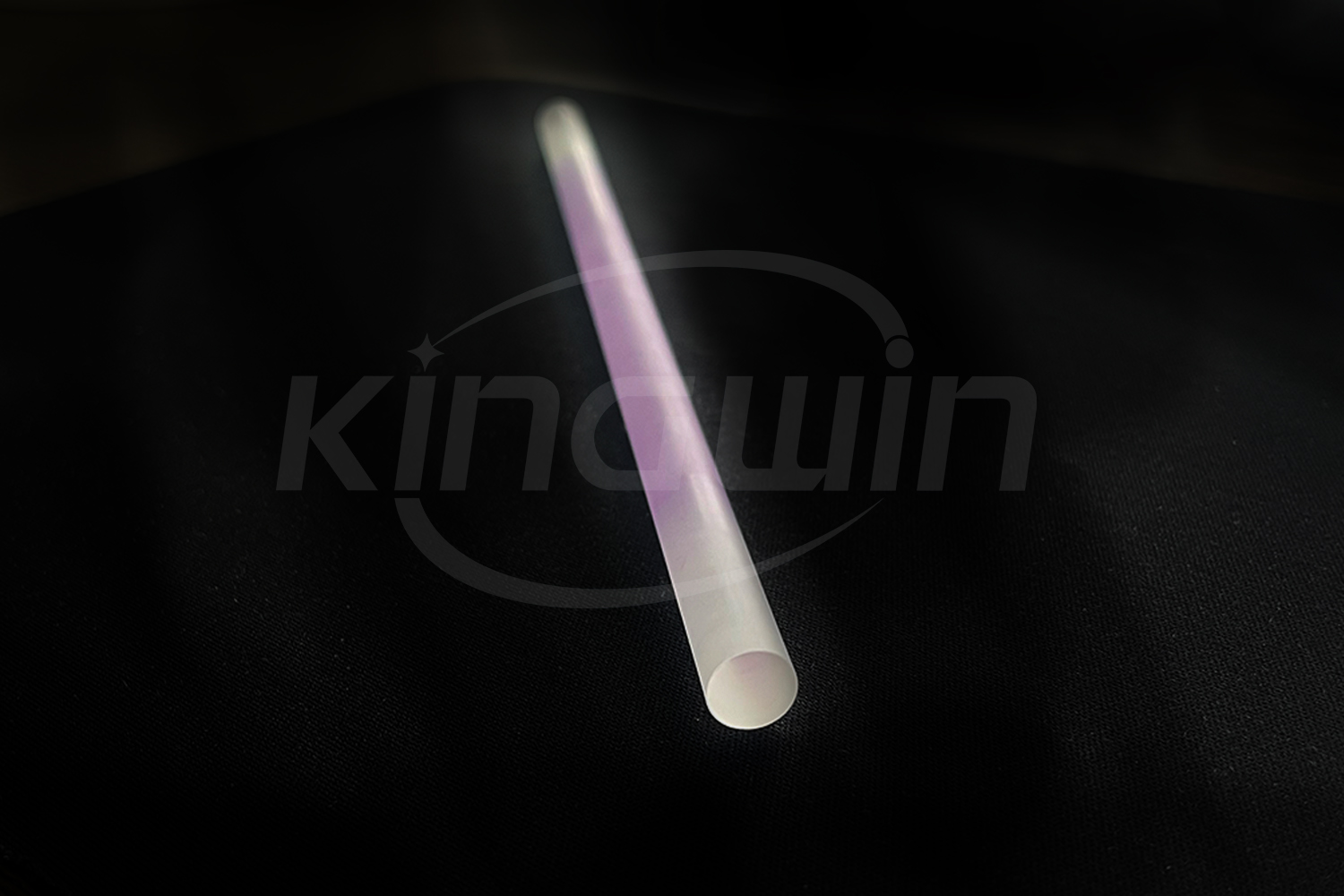

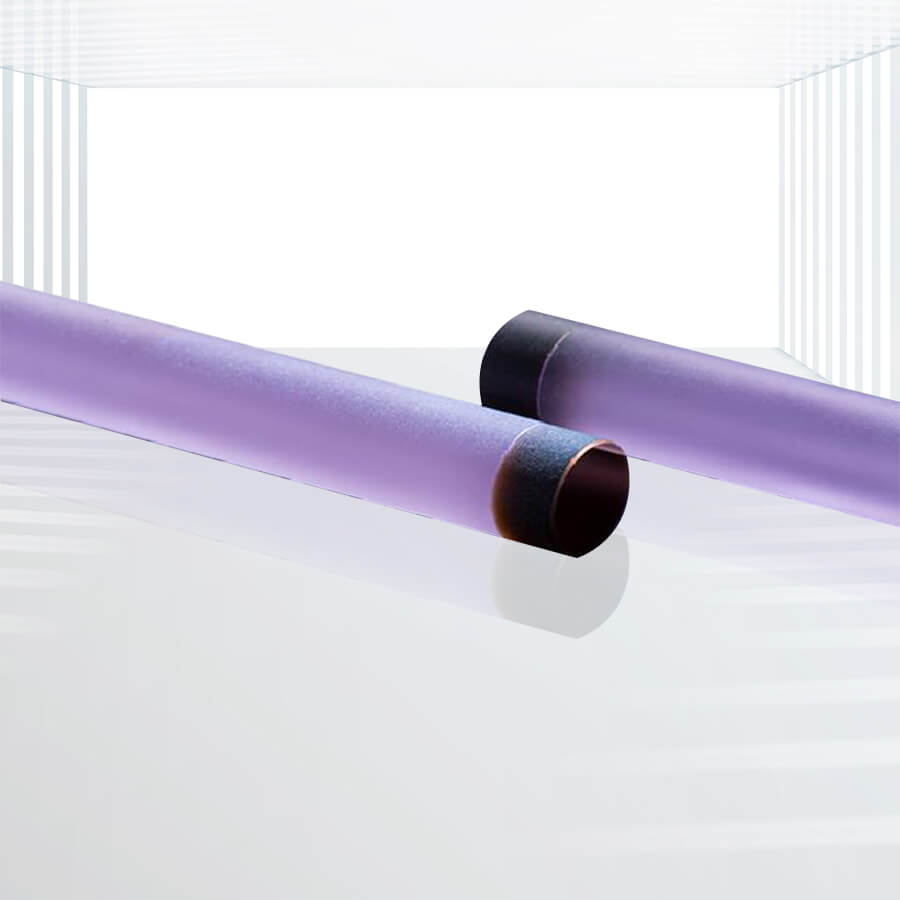

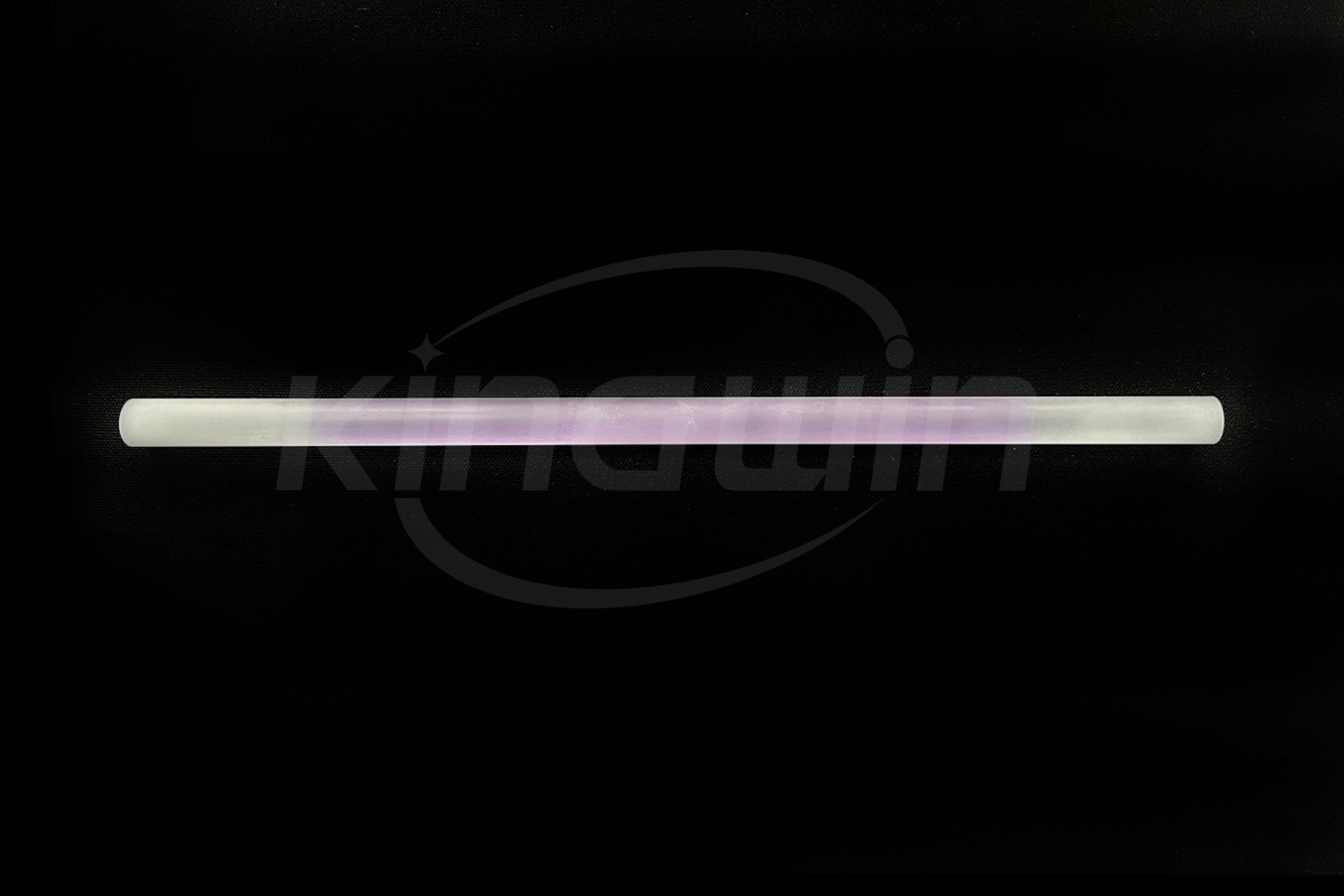

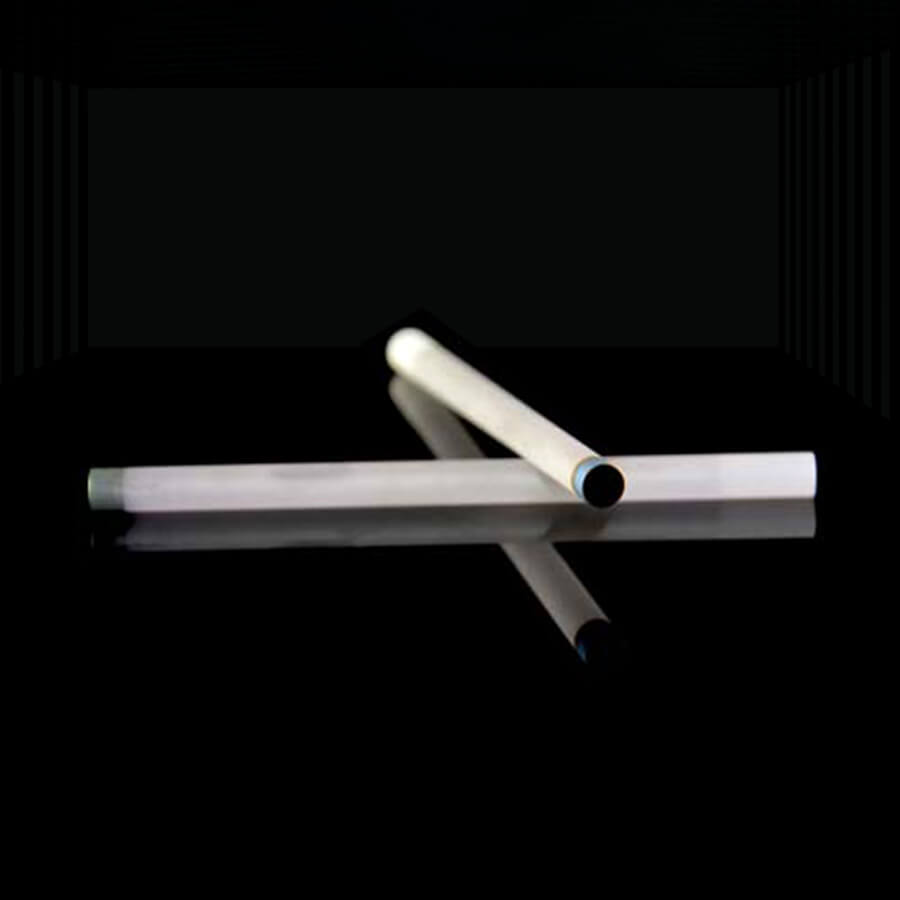

Bonding Crystals are composite laser crystals comprising two, three, or more parts with varying doping characteristics. These parts are joined using a method called diffusion bonding, which involves the diffusion of atoms across their interfaces. Throughout the bonding process, the crystal interfaces are polished to achieve ultra-high flatness without the use of adhesives. This method significantly reduces the thermal lensing effect, making Diffusion Bonded Crystals highly suitable for high-power laser applications. The composite design of these crystals offers distinct advantages.
Kingwin Optics offers a wide range of bonded crystals, including: YAG+Nd :YAG, YAG+Cr4+ :YAG, Nd :YAG + Cr4+:YAG, YAG+Nd :YAG+YAG, YAG+Nd:YAG+Cr4+:YAG, YAG+Nd:YAG+Cr4+:YAG+YAG, Cr:YAG+Nd:Ce:YAG, YAG+Cr4+:YAG+Nd:Ce:YAG+YAG, YVO4+Nd:YVO4+YVO4, Glass+Er:Yb:glass+Co2+MgAl204, Yb:YAG-YAG, Tm:YAG-YAG, Er:YAG-YAG, YAG+CTH:YAG+YAG,etc.
Main Feature: Reduce laser rod thermal lensing, Improve beam quality, Make the laser device system more compact, Miniaturized and integrated
Product parameters:
| Bonding Crystal Combinations | Doping Concentration(atm) or Optical Density (cm-1) | Aperture (mm) | Length (mm) |
| YAG+Nd :YAG | Nd:0.6~1.2% | 2×2~20×20 | 2~200 |
| YAG+Cr4+ :YAG | 0.6~7 | 2×2~20×20 | 2~50 |
| Nd :YAG + Cr4+:YAG | Nd:0.6~1.2% / 0.6~7 | 2×2~20×20 | 2~200 |
| YAG+Nd :YAG+YAG | Nd:0.6~1.2% | 2×2~20×20 | 3~200 |
| YAG+Nd:YAG+Cr4+:YAG | Nd:0.6~1.2% / 0.6~7 | 2×2~20×20 | 3~200 |
| YAG+Nd:YAG+Cr4+:YAG+YAG | Nd:0.6~1.2% / 0.6~7 | 2×2~20×20 | 5~200 |
| Cr:YAG+Nd:Ce:YAG | 0.6-7/Nd:0.9~1.3% Ce:Nd=1:10 | 2×2~10×10 | 5~130 |
| YAG+Cr4+:YAG+Nd:Ce:YAG+YAG | 0.6~7/Nd:0.9~1.3%, Ce:Nd=1:10 | 2×2~10×10 | 5~130 |
| YAG+Cr4+:YAG+Nd:Ce:YAG+YAG | Nd:0.1~3% | 2×2~10×10 | 1~20 |
| YVO4+Nd:YVO4+YVO4 | Nd:0.1~3% | Dia2~10 | 3~20 |
| Customization according to customer requirements | |||
| Bonded surface shear strength | ≥300Kg/cm2 |
| Size | Bonded rods, slabs and discs can be customized |
| Tolerance | Ø:0/-0.03mm, L:0/+0.5mm |
| Cylindrical machining | Grinding, Polishing |
| Parallelism | ≤10″ |
| Perpendicularity | ≤5′ |
| Flatness | ≤λ/10@632.8nm |
| Surface Quality | 10/5 (MIL-O-13830A) |
| Chamfer | 0.15±0.05mm |
| Coating | S1:PR＝20~80%@1064nm，S2:HR≥99.8%@1064nm Other coating is customized. |
