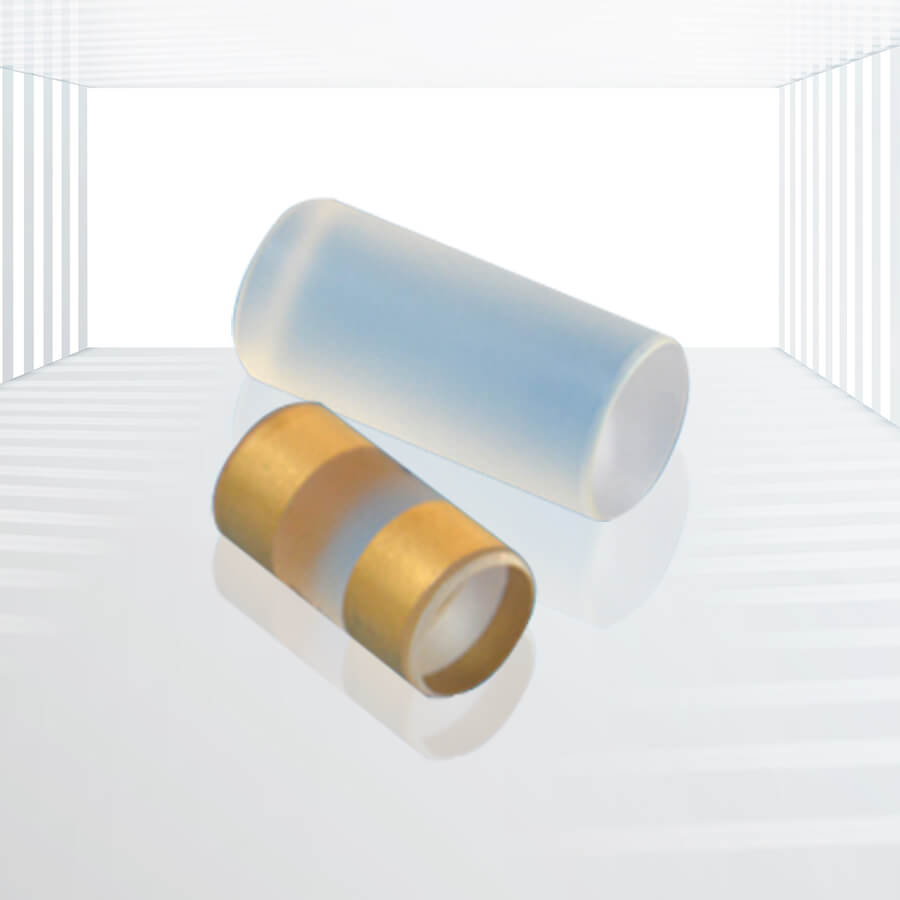

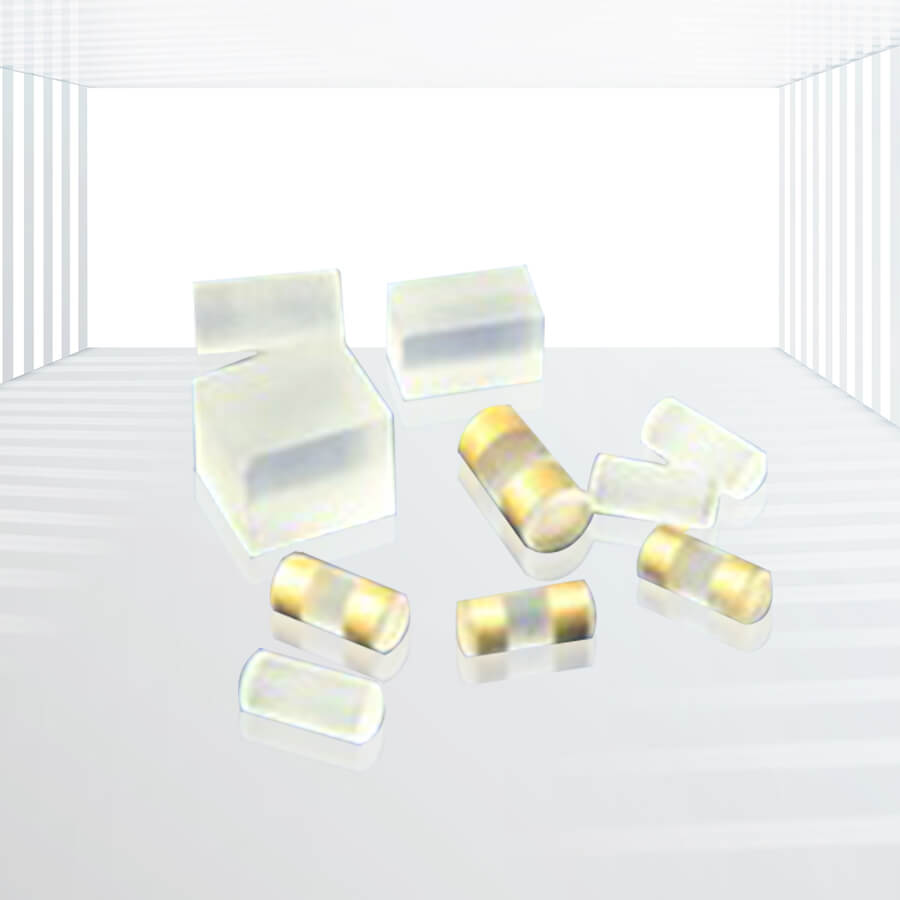

DKDP Crystals for EO Applications

Broad Wavelength Range: KD*P crystals can be used in a wide wavelength range, making them versatile for various laser applications.

High Deuteration: With a deuterium content >98%, KD*P crystals can be used up to 1.3μm, extending their applicability into the infrared region.

High Optical Uniformity: KD*P crystals can be grown with high optical uniformity, ensuring consistent performance across large apertures.

Applications: Q-Switching, Large Aperture Requirements, etc.

KD*P (Deuterated Potassium Dihydrogen Phosphate, also known as DKDP) crystals are widely used in Q-switching applications due to their exceptional properties. These crystals are particularly effective in the wavelength range from 0.25µm to approximately 1.1µm. With a higher deuterium content, the absorption edge of the material shifts further into the infrared, allowing for even broader applications.

Specifications:

Crystal Materials DKDP crystals (deuteration level >98%)
Typical Diameter 6mm; 8mm; 10mm; 12mm; 15mm
Diameter Tolerance +/-0.1mm
Length Tolerance +/-0.2mm
Surface Quality 20/10 S/D
Parallelism <20 arc seconds
Flatness < Lambda/10 @633nm
Chamfer 0.1-0.3mmx45°
Chips <0.15mm
Fine ground <0.15mm
Orientation Tolerance < 10 arc minutes
Wavefront Distortion  <Lambda/8@633nm
Extinction Ratio >2000:1
Coating AR/AR@1064nm or customized
Damaging Threshold >800mW/cm^2@1064nm 10nS 10Hz pulse

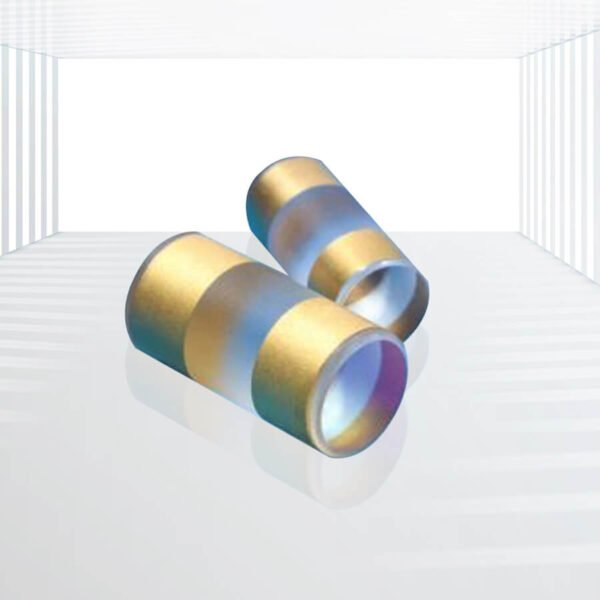

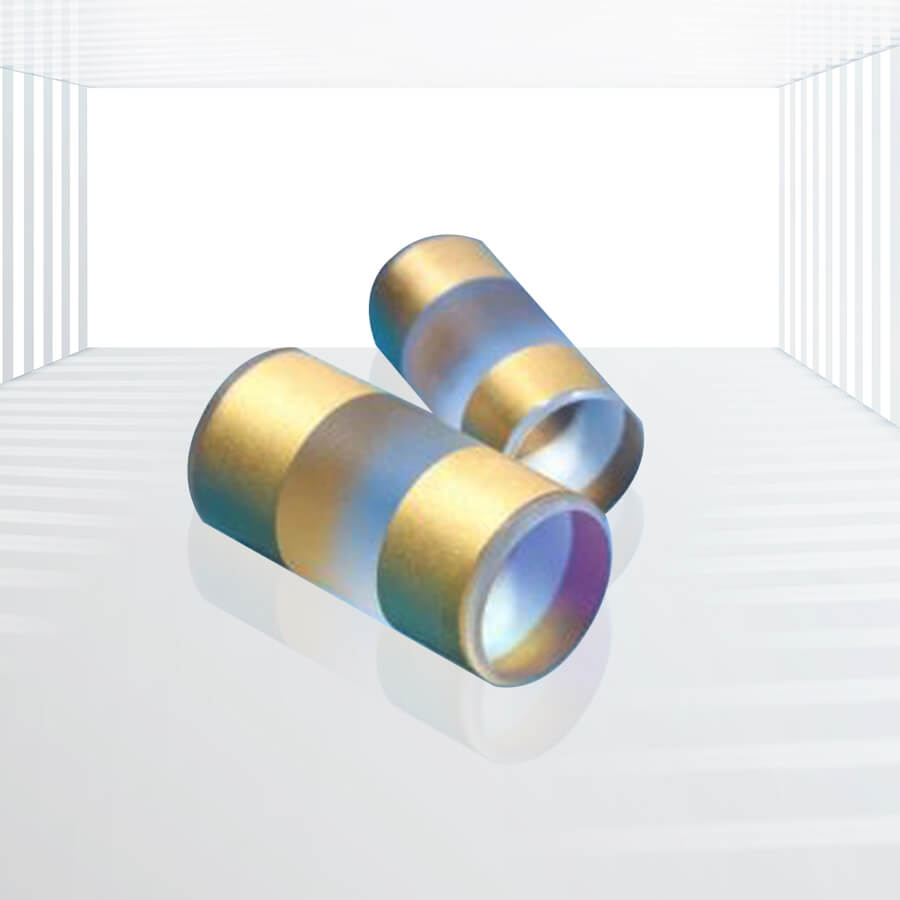

Electrode on Side Surface Chrome gold electrode (Cr+Au)
Quarter Wave Voltage ~3.4KV



Key Advantages:

  • Broad Wavelength Range: KD*P crystals can be used in a wide wavelength range, making them versatile for various laser applications.
  • High Deuteration: With a deuterium content >98%, KD*P crystals can be used up to 1.3μm, extending their applicability into the infrared region.
  • High Optical Uniformity: KD*P crystals can be grown with high optical uniformity, ensuring consistent performance across large apertures.

Applications:

  • Q-Switching: KD*P crystals are widely used in Q-switching applications, enabling precise control of laser pulse generation.
  • Large Aperture Requirements: Due to their high optical uniformity, KD*P crystals are recommended for applications requiring large apertures.

Kingwin Optics offers high-quality KDP (DKDP) crystals with a deuteration level >98% for use in KDP Pockels cells and other laser applications. The company provides customized blanks, polished crystals, and crystal components with AR coating and Cr-Au electrodes upon customer request. With Kingwin Optics’ KD*P crystals, customers can benefit from exceptional performance and reliability in their laser and electro-optic systems.
