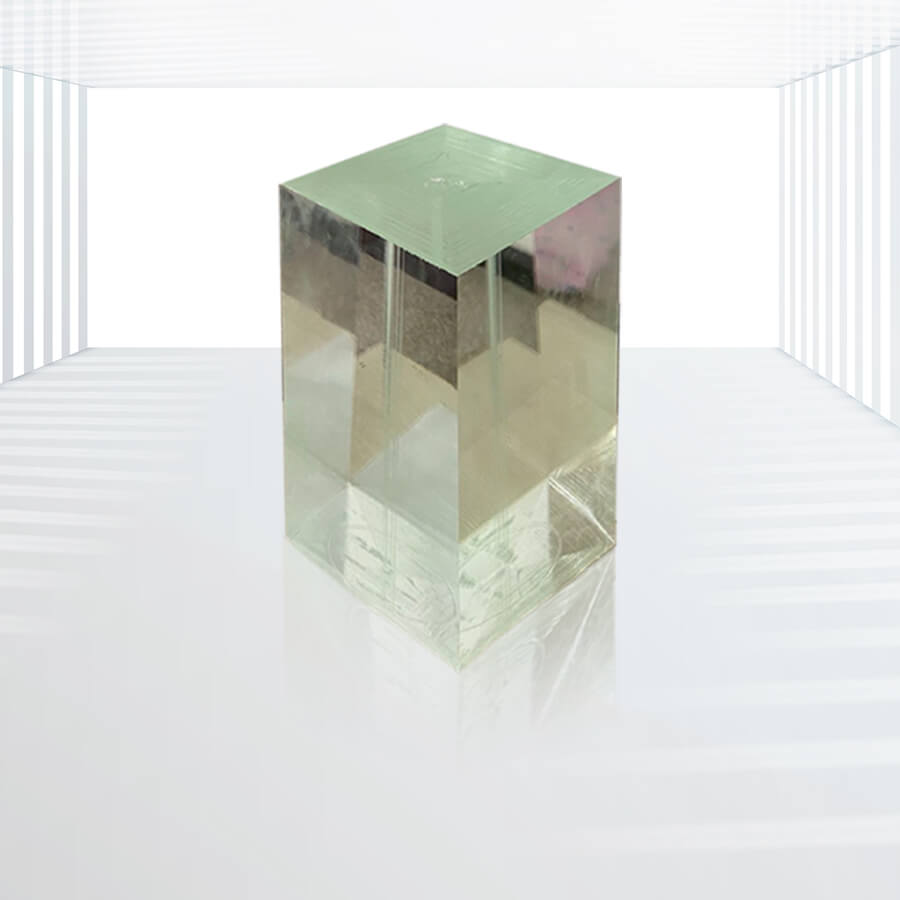

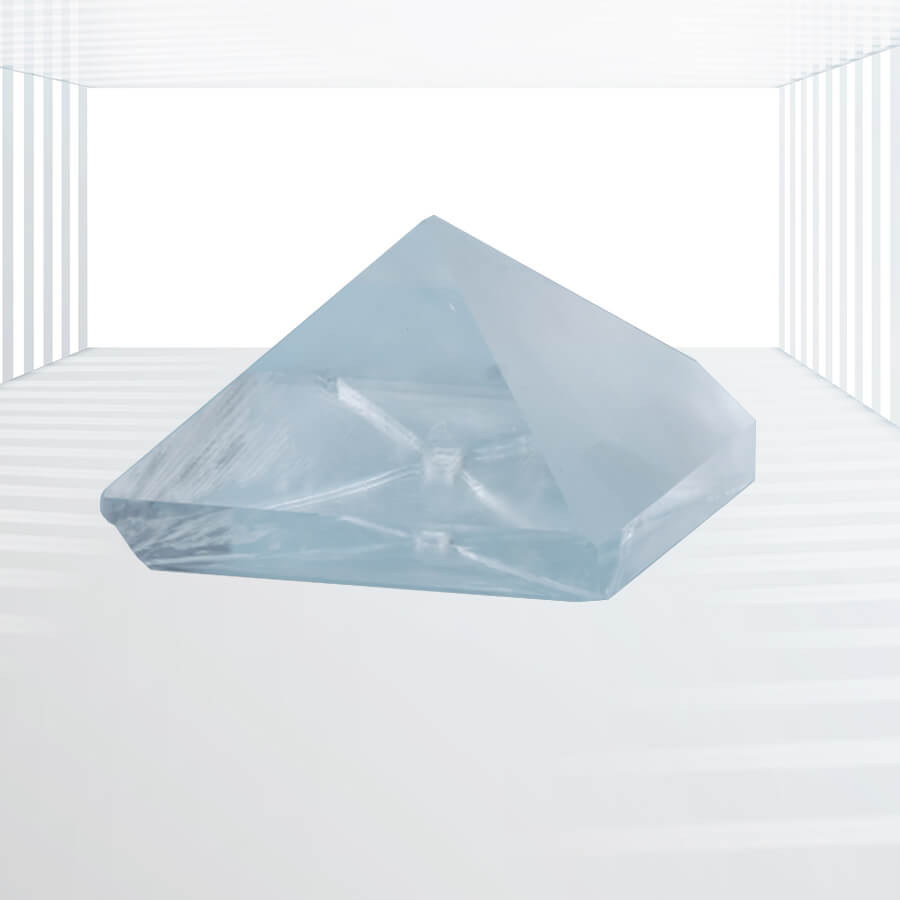

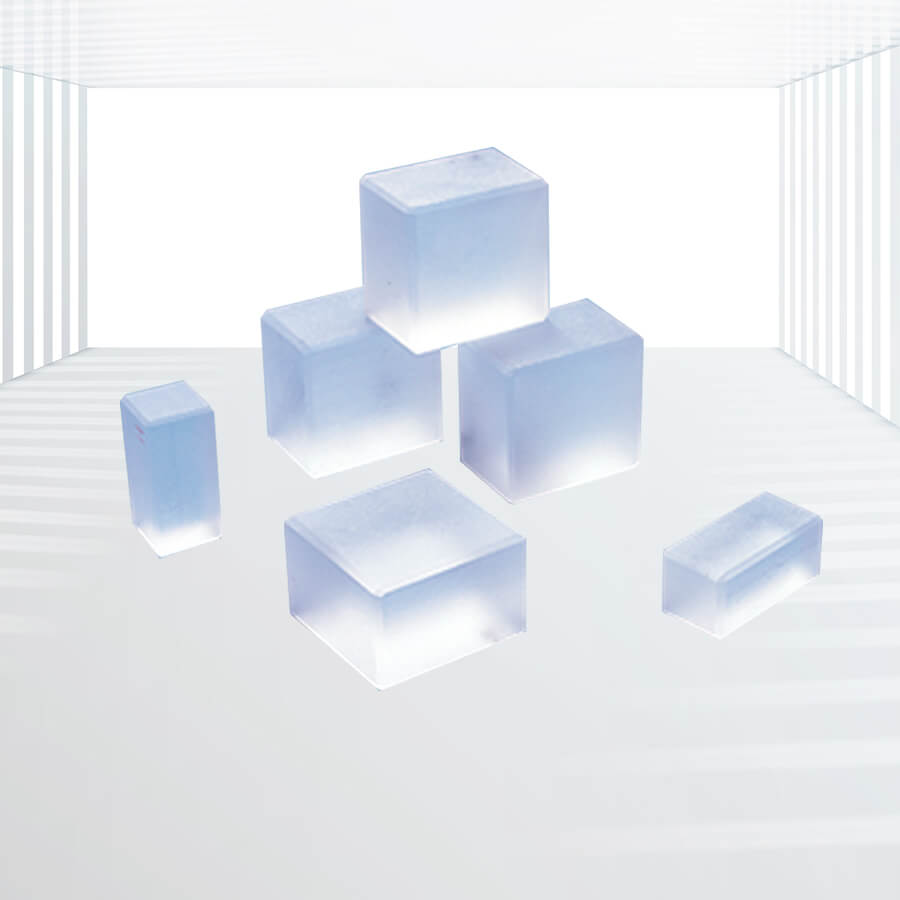

DKDP (KD*P) Crystals
Potassium dideuterium phosphate (DKDP or KD*P) crystals are considered to be one of the most common industrial-grade nonlinear opticalNLO) materials. These crystals are distinguished by their deuterium content and exhibit enhanced performance characteristics compared to conventional KDP crystals, especially in high-power laser.
Feature:Extended transmission wavelength range, Elimination of parasitic oscillation, Excellent harmonic generation, High electro-optic coefficient
Application:High-power lasers, Optical parametric oscillator (OPO), Optical modulator, Nonlinear optical elements
Potassium dideuterium phosphate (DKDP or KD*P) crystals are considered to be one of the most common industrial-grade nonlinear opticalNLO) materials. These crystals are distinguished by their deuterium content and exhibit enhanced performance characteristics compared to conventional KDP crystals, especially in high-power laser.
Specifications:
Dimensional tolerance | (W±0.1mm) ×(H±0.1mm)× (L+0.2mm/-0.1mm)or(Diameter±0.1mm)×(L+0.2/-0.1mm) |
Wavefront distortion | < λ/8 @ 633nm |
Transparent aperture | >90%Central area |
Slot | ≤0.3mm@45° |
Flatness | λ/8 @ 633nm (L≥ 2.5mm) λ/4 @ 633nm (L< 2.5mm) |
Chip | ≤ 0.1mm |
Surface quality | 20/10 s/day |
Parallelism | < 10” |
Vertical | ≤ 10′ |
Angular tolerance | ≤ 0.2° |
Interior quality | Check that there is no visible scattering path or center 50mW green laser |
Feature:
- Extended transmission wavelength range: The additional deuterium composition in DKDP crystals broadens the transmission wavelength range, making it suitable for a range of optical applications.
- Elimination of parasitic oscillation: DKDP crystals effectively mitigate the harmful parasitic oscillation caused by Raman scattering, a common in high-power lasers.
- Excellent harmonic generation: These crystals exhibit exceptional performance in second harmonic generation (SHG), third harmonic generation (THG), and fourth harmonic (FHG) of Nd:YAG lasers at room temperature.
- High electro-optic coefficient: DKDP crystals have a high electro-optic coefficient, making ideal for use as electro-optic modulators, such as EO Q-switches and EO Pockels cells.
Application:
- High-power lasers: DKDP crystals are particularly suitable for high-power laser systems because they can eliminate parasitic oscillations and expand the transmission wavelength range.
- Optical parametric oscillator (OPO): These crystals are commonly used for wavelength conversion and tuning in OPOs.
- Optical modulator: DKDP crystals have high electro-optic coefficients, making them ideal for EO modulators such as EO Q-switches and Pockels cells.
- Nonlinear optical elements: DKDP crystals are used to make large-aperture nonlinear optical elements because of their large size and low manufacturing cost.

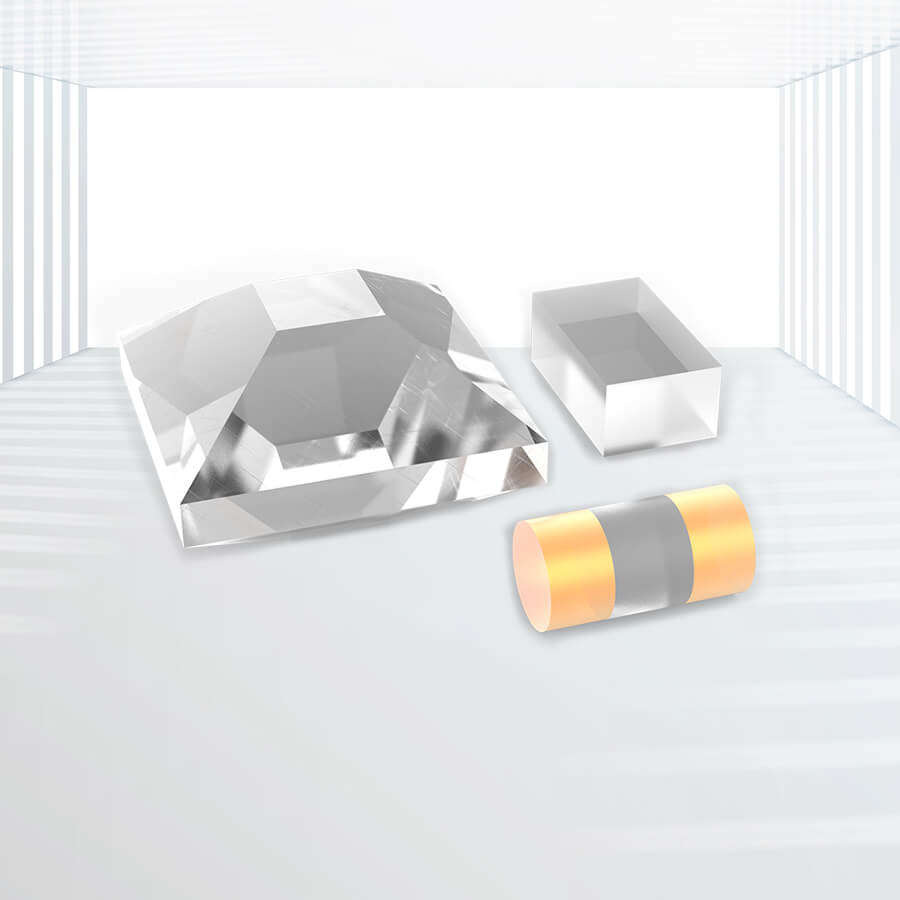

Supplies high-quality DKDP (KD*P) crystals, which are recognized as one of the most popular industrial-grade nonlinear optical (N) materials. With its unique deuterium composition, these crystals offer several advantages over traditional KDP crystals, especially in high-power laser applications. Our DKDP come in various orientations to meet specific application requirements and are available in large sizes, with the biggest being 100x100x60mm High deuterium composition ratios (>98%) can be achieved, ensuring optimal performance.
