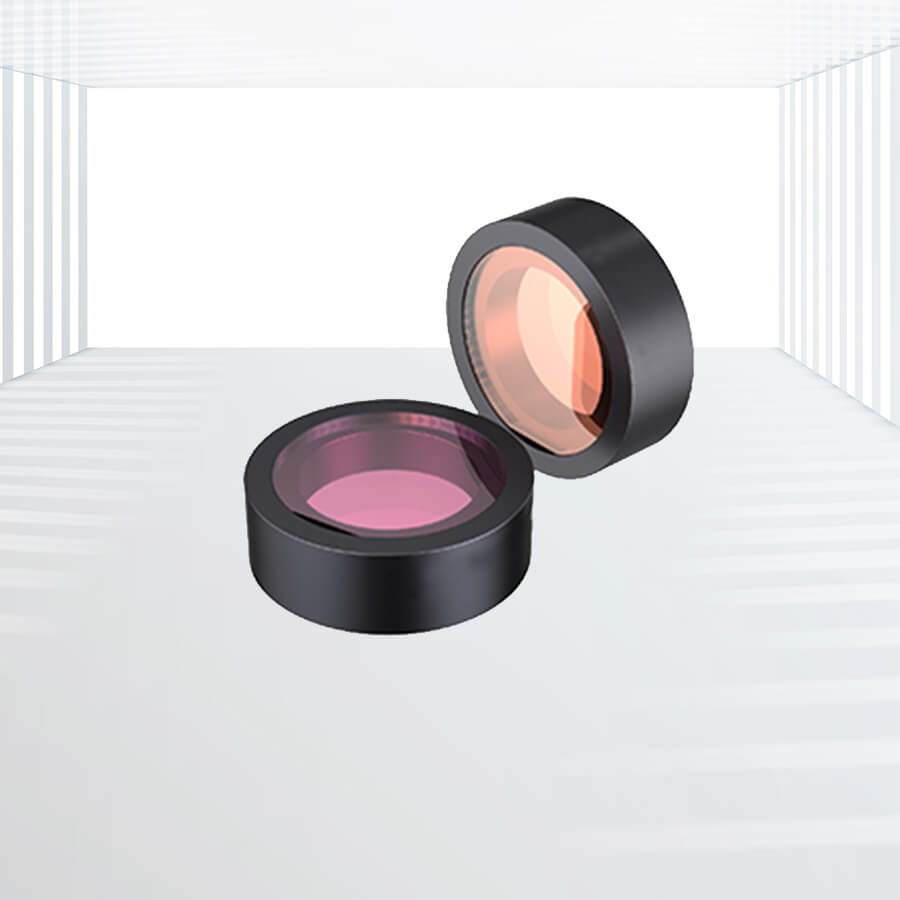

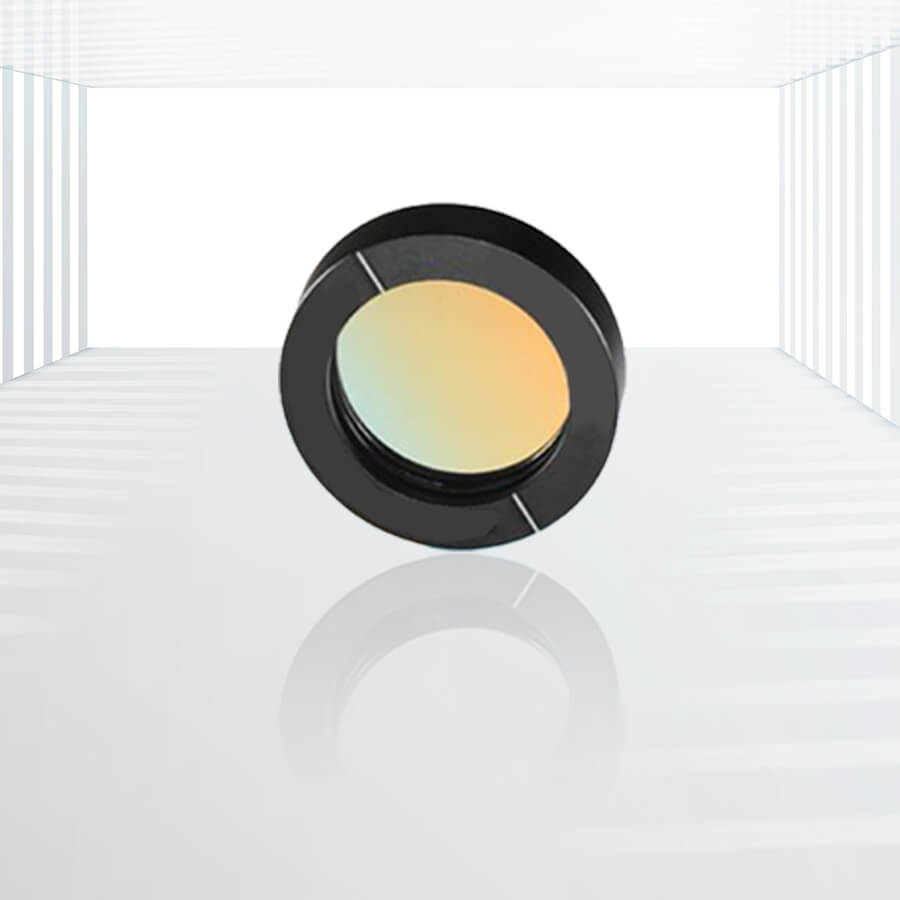

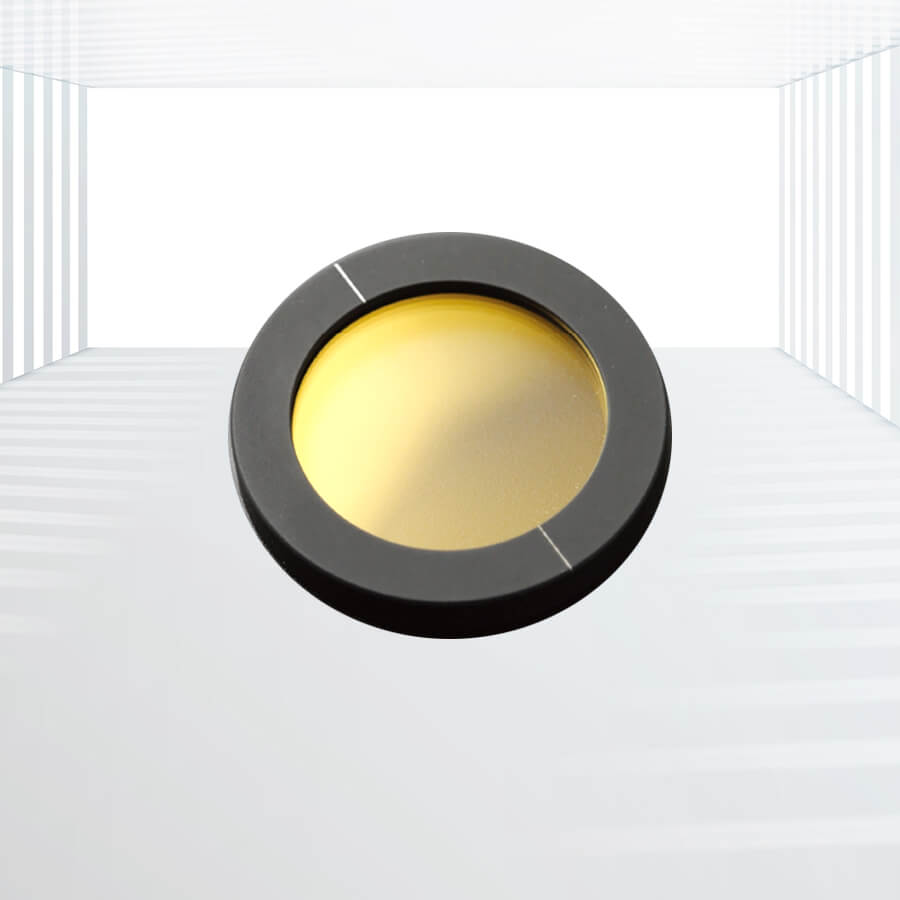

Dual Wavelength Waveplates

Dual Wavelength Capability: Provides different retardations at two individual wavelengths, allowing for precise control over the polarization state of dual-wavelength light sources.

High Damage Thresholds: The waveplates are designed with high damage thresholds, making them suitable for use in high-power applications.

Low-Order Retardation: Introduces low-order retardation, which is suitable for many applications. However, if zero-order dual/triple wavelength waveplates are required, Kingwin Optics can arrange for their production.

Cost-Effective and Fast Delivery: Kingwin Optics offers two standard modules of Dual Wavelength Waveplates with guaranteed fast delivery and cost-effective prices.

Custom Retardation Options: Besides the standard modules, Kingwin Optics also offers custom retardation options at both dual-wavelength and triple-wavelength scales. Technical support is available to check and confirm critical parameters with customers.

Applications: Separating Coaxial Laser Beams, Solid State SHG Lasers, Optical Communications, Research and Development, etc.

Dual Wavelength Waveplates offered by Kingwin Optics are a specialized type of Multiple Wavelength Waveplates designed to provide different retardations at two specific wavelengths. These waveplates are particularly useful in applications involving dual-wavelength light sources, where precise control over the polarization state of light at two different wavelengths is required.

Specifications:

Material Quartz
Surface Quality 20/10 S/D
Aperture 18mm
Retardation Tolerance Depending on the application wavelengths
Parallelism <1 arc Sec
Coating AR coating
Damage Threshold >500 MW/cm2
Mounted Diameter 25.4mm (1inch)
Wavelength Sets 780/390nm, 800/400nm, 810/405nm, 1030/515m, 1064/532nm, 1550/775nm (Dual Wavelengths), Triple Wavelengths could be customized



Features:

  • Dual Wavelength Capability: Provides different retardations at two individual wavelengths, allowing for precise control over the polarization state of dual-wavelength light sources.
  • High Damage Thresholds: The waveplates are designed with high damage thresholds, making them suitable for use in high-power applications.
  • Low-Order Retardation: Introduces low-order retardation, which is suitable for many applications. However, if zero-order dual/triple wavelength waveplates are required, Kingwin Optics can arrange for their production.
  • Cost-Effective and Fast Delivery: Kingwin Optics offers two standard modules of Dual Wavelength Waveplates with guaranteed fast delivery and cost-effective prices.
  • Custom Retardation Options: Besides the standard modules, Kingwin Optics also offers custom retardation options at both dual-wavelength and triple-wavelength scales. Technical support is available to check and confirm critical parameters with customers.

Applications:

  • Separating Coaxial Laser Beams: Used in conjunction with other polarization-sensitive components to separate coaxial laser beams of different wavelengths.
  • Solid State SHG Lasers: Elevates and promotes the conversion efficiency of Solid State SHG Lasers.
  • Optical Communications: Can be used to control the polarization state of light in dual-wavelength optical communication systems.
  • Research and Development: Useful in scientific research and development where precise control over the polarization state of dual-wavelength light sources is required.

In summary, Kingwin Optics’ Dual Wavelength Waveplates offer precise control over the polarization state of dual-wavelength light sources, making them ideal for a wide range of applications in optical communications, laser technology, and scientific research. With high damage thresholds, low-order retardation, and custom retardation options available, Kingwin Optics provides a reliable and cost-effective solution for dual-wavelength polarization control.
