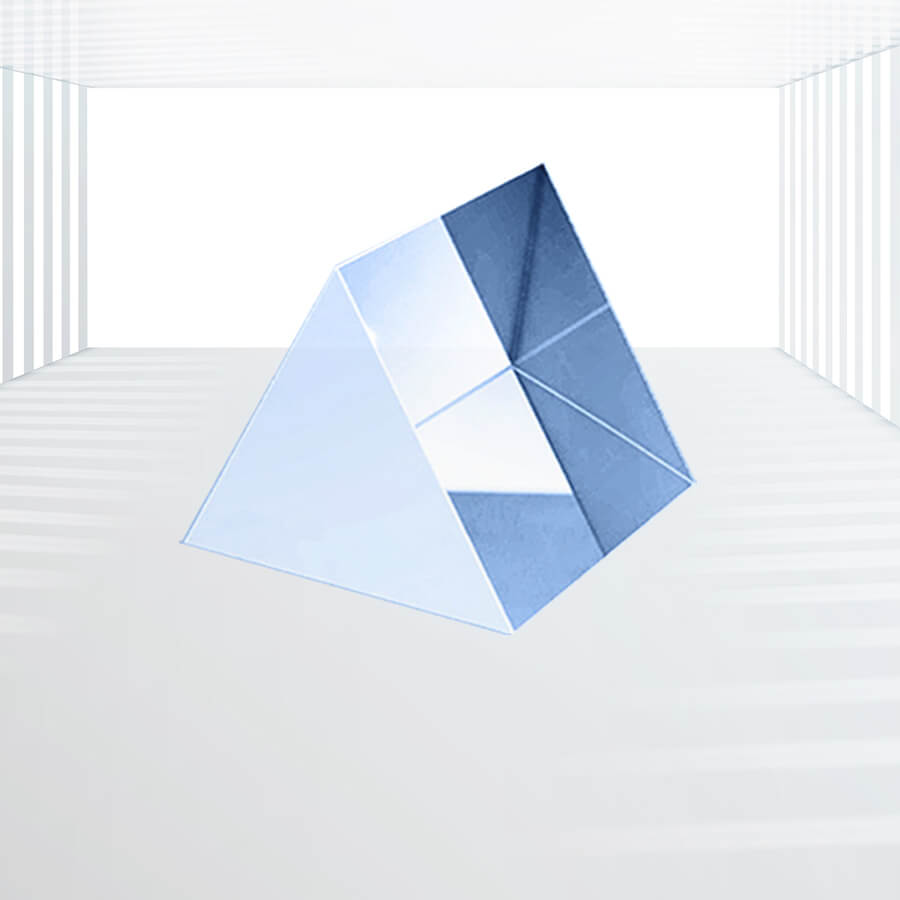

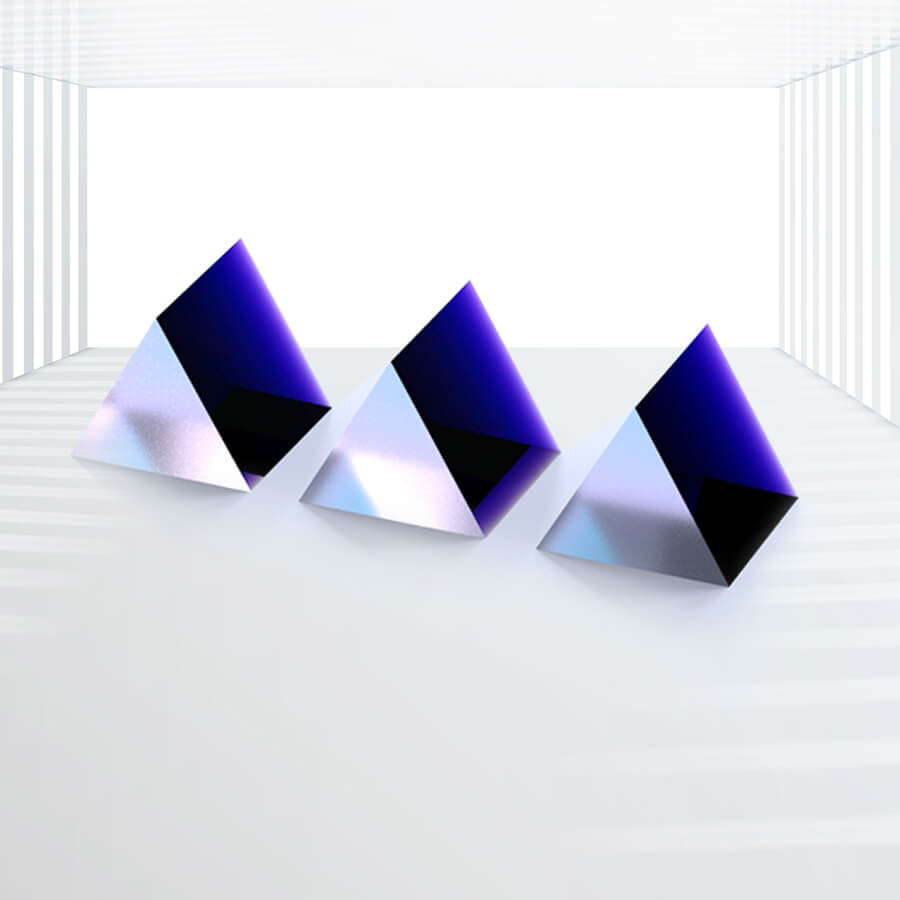

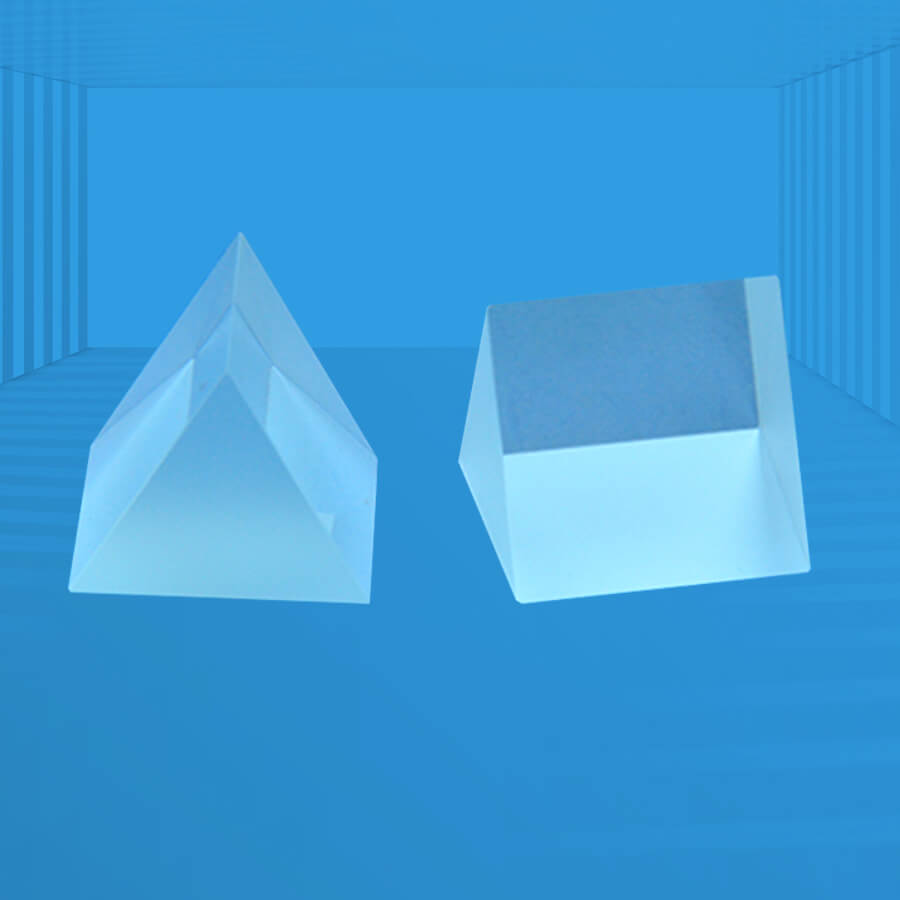

Equilateral Prisms

Kingwin Optics specializes in manufacturing custom equilateral prisms, which are triangular optical prisms with three identical side lengths and three 60° apex angles. These prisms are commonly used for dispersive purposes, such as separating a white light source into a spectrum of multiple colors. Depending on the substrate materials, equilateral dispersive prisms can be selected to break up different spectral regions. They function similarly to a diffraction grating but offer better brightness, greater endurance to power, and fewer issues with higher orders.

Specifications:

Material	N-BK7, UV Fused Silica, SF11, N-SF11, CaF2, MaF2, ZnSe, F2, N-F2
Clear Aperture	90%
Dimension Tolerance	+0.0/-0.2mm, or ±0.15mm
Surface Quality	60/40, 40/20, 20/10, 10/5 S/D
Angle Tolerance	60°±3 arc minutes
Flatness	<λ/4, <λ/8, <λ/10@632.8nm
Polished Surface	Three side surfaces polished
Chamfer	Protective<0.5mmx45
Coating	Uncoated or Custom



Features:

1.High Precision and Optical Performance:

• Equilateral Prisms offer precise light dispersion and reflection due to their high-quality polished surfaces.
• The equilateral design ensures optimal performance by maximizing dispersion while minimizing reflection losses.

2.Versatility in Materials and Coatings:

• Available in a variety of optical materials such as H-K9L, BK7, F2, N-F2, N-SF11, CaF2, or ZnSe, allowing for customization based on specific application requirements.
• Can be coated with AR (Anti-Reflective), HR (High Reflective), or other specialized coatings to further enhance their optical properties.

3.Efficient Light Manipulation:

• Effectively separate white light into its constituent colors, making them ideal for spectroscopic analysis and other optical applications.
• Minimize stray light and eliminate higher-order diffraction issues commonly associated with gratings.

4.Customizable Sizes and Designs:

• Offered in different sizes ranging from small to large diameters, accommodating various application needs.
• Manufacturers often provide custom design services based on customer drawings and specifications for unique applications.

Applications:

1.Scientific Research and Instrumentation:

• Used in spectroscopic analysis experiments to separate light into its component colors.
• Integrated into telescopes, microscopes, and other scientific measurement instruments.
• Employed in solar energy converters for optical manipulation and enhancement.

2.Medical Devices and Diagnostics:

• Incorporated into endoscopic devices such as cystoscopes and gastroscopes for diagnostic procedures.
• Utilized in laser treatment equipment for precise control and delivery of laser beams.

3.Digital Imaging and Optics:

• Found in cameras, CCTV systems, projectors, digital cameras, and camcorders to enhance optical performance.
• Used in lenses and optical systems to optimize light dispersion and reflection for improved image quality.

Kingwin Optics offers a wide range of custom equilateral prisms made from high-refractive-index materials, including N-BK7, UV Fused Silica, SF11, N-SF11, CaF2, MaF2, ZnSe, F2, N-F2, and more. The transmission range of these materials spans from ultra-violet to infrared. To reduce loss at the prism-to-air interface for high-refraction materials, anti-reflection coatings with specified bandwidths are available. These coatings also provide additional protection against chemical corrosion and other contaminants.

As a sophisticated supplier of optical components, Kingwin Optics is confident in providing a series of equilateral prisms with a wide selection of specifications. They are capable of delivering both high-precision prisms with tight geometric tolerances and standard-grade prisms for less challenging requirements. The surface qualities of their custom equilateral prisms range from 60/40 to 10/5 S/D, with flatness options of <λ/4, <λ/8, <λ/10@632.8nm. Additionally, they offer stocked equilateral prisms fabricated from SCHOTT F2, CaF2, and UV Fused Silica.
