Fused Silica and Optical Quartz Glass Wafers

High Purity & Chemical Stability: Similar to Fused Silica, Optical Quartz Glass Wafers offer high purity and excellent chemical stability.

Excellent optical properties: It has excellent transmittance in the continuous wavelength range from ultraviolet to infrared radiation, which is suitable for high-precision optical systems.

Good thermal and mechanical properties: It has a low coefficient of thermal expansion and high temperature resistance, and can withstand temperature changes without being easy to deform.

Wide range of applications: Due to its excellent performance, Optical Quartz Glass Wafers are widely used in semiconductors, optoelectronics, optical instruments, aerospace, and other fields.

Applications: Optical and Laser Systems, UV-light Sanitation, Semiconductors, Spacecraft, etc.

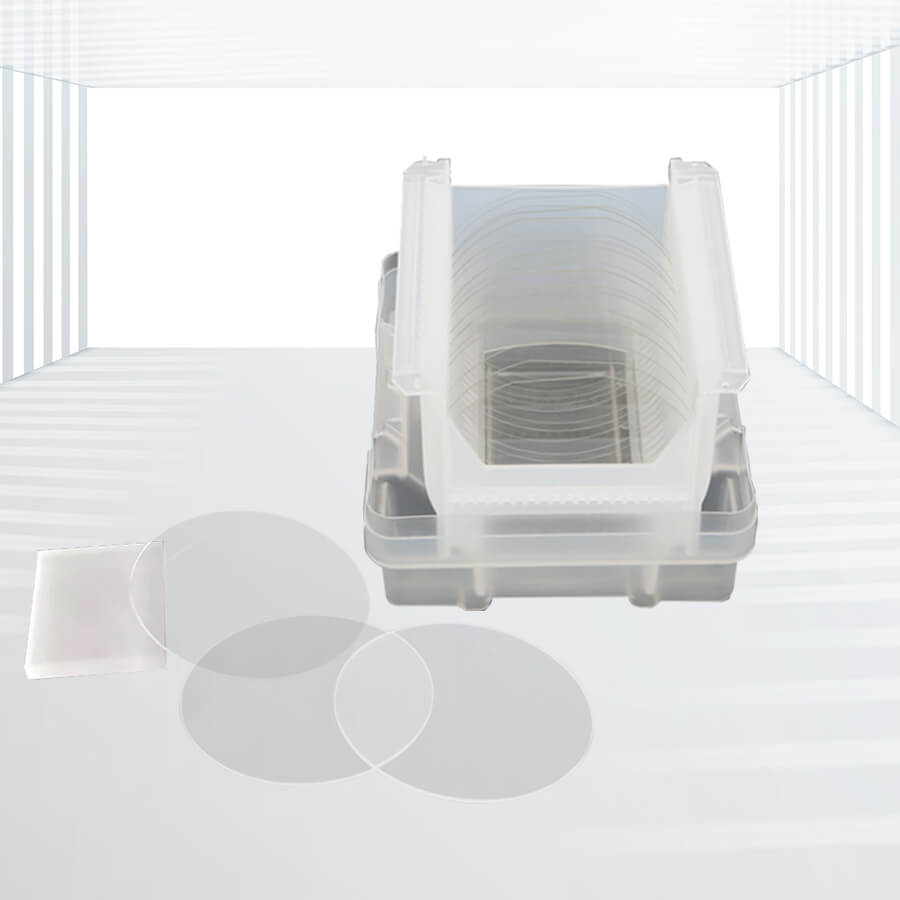

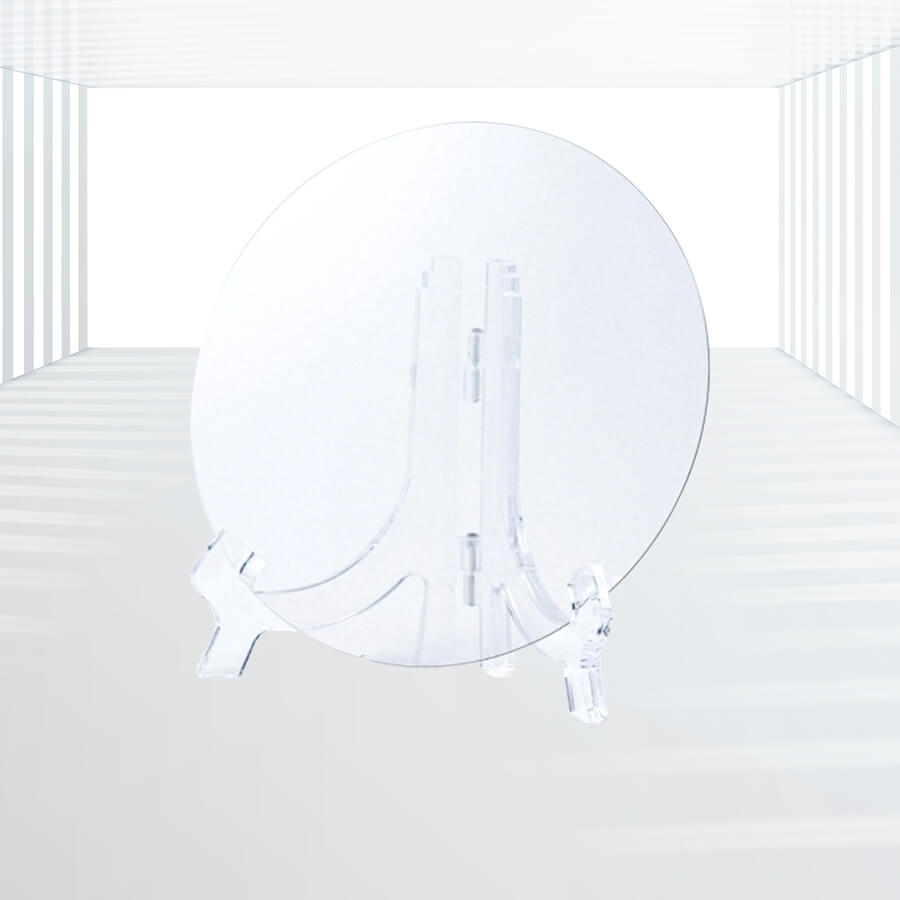

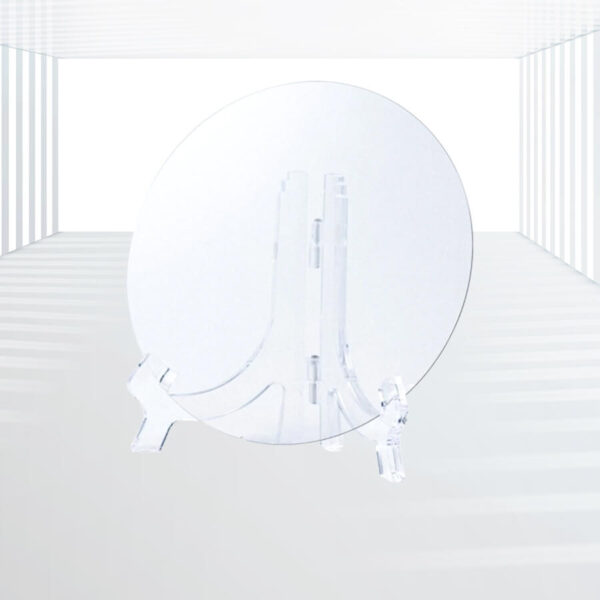

Fused Silica and Optical Quartz Glass Wafers or Substrates are essential components in various high-tech applications. These wafers, made from Fused Silica or Quartz Glass, come in a variety of dimensions and shapes, including thin discs and square plates.

Material Properties:

Density (at 25°C / 77°F) 2.201 g/cm^3
Shear Modulus 30.6 GPa
Young’s Modulus 2.1 GPa
Bulk Modulus 37.4 GPa
Modulus of Rupture, abraded 52.4 MPa
Poisson’s Ratio 0.179
Knoop Hardness (100g load) 522 kg/mm^2
Compressive Strength 1.14 GPa
Tensile Strength 54 MPa
Strain Point 893°C/1639.4°F
Thermal Expansion Coefficients 0.52 ppm/K @5-35°C,0.57 ppm/K @0-200°C,0.48 ppm/K @-100 – 200°C
Annealing Point 1042°C/1907.6°F
Softening Point 1585°C/2885°F
Thermal Conductivity 1.38 W/m·K
Thermal Diffusivity 0.0075 cm^2/s
Specific Heat 0.770 J/g·K
Refractive Index Nd = 1.45840 @589nm
Dielectric Constant E = 3.8



Features:

  • High Purity & Chemical Stability: Similar to Fused Silica, Optical Quartz Glass Wafers offer high purity and excellent chemical stability.
  • Excellent optical properties: It has excellent transmittance in the continuous wavelength range from ultraviolet to infrared radiation, which is suitable for high-precision optical systems.
  • Good thermal and mechanical properties: It has a low coefficient of thermal expansion and high temperature resistance, and can withstand temperature changes without being easy to deform.
  • Wide range of applications: Due to its excellent performance, Optical Quartz Glass Wafers are widely used in semiconductors, optoelectronics, optical instruments, aerospace, and other fields.

Applications:

  • Optical and Laser Systems: Due to their excellent transmission and stability.
  • UV-light Sanitation: Utilizing their high UV transmission.
  • Semiconductors: With their thermal and chemical properties.
  • Spacecraft: For components that endure extreme conditions.

Fused Silica and Optical Quartz Glass Wafers are indispensable key materials for many high-tech fields due to their excellent performance in purity, chemical stability, thermal properties, optical properties, and electrical insulation.
