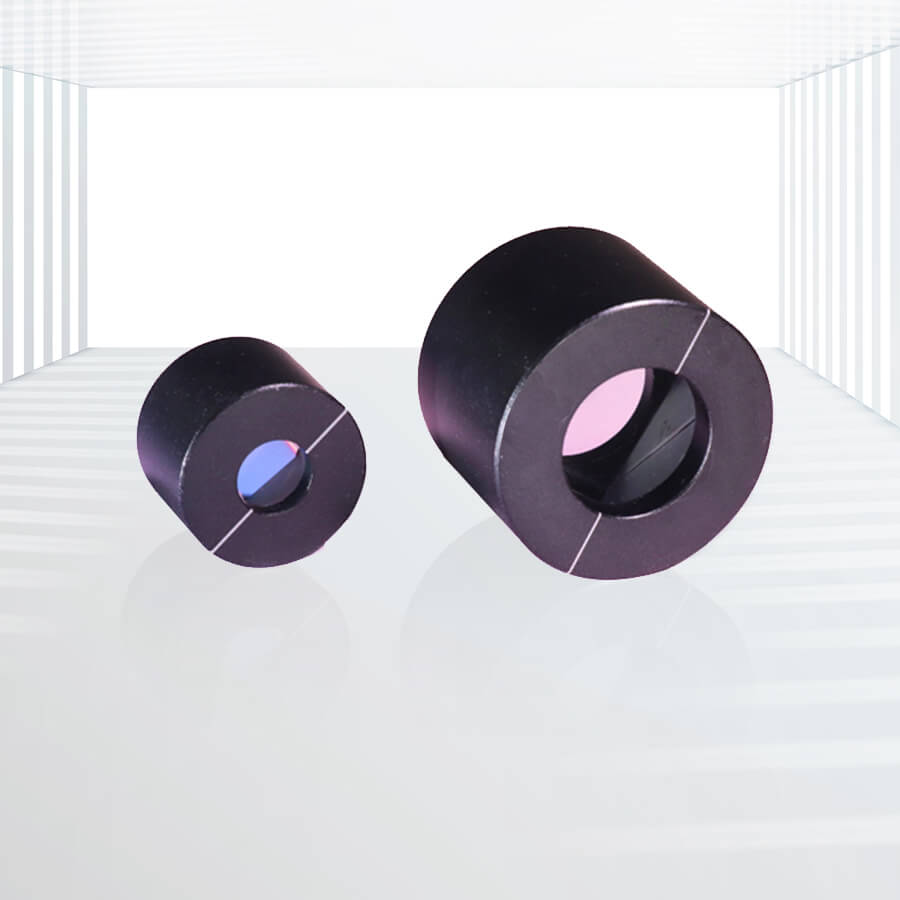

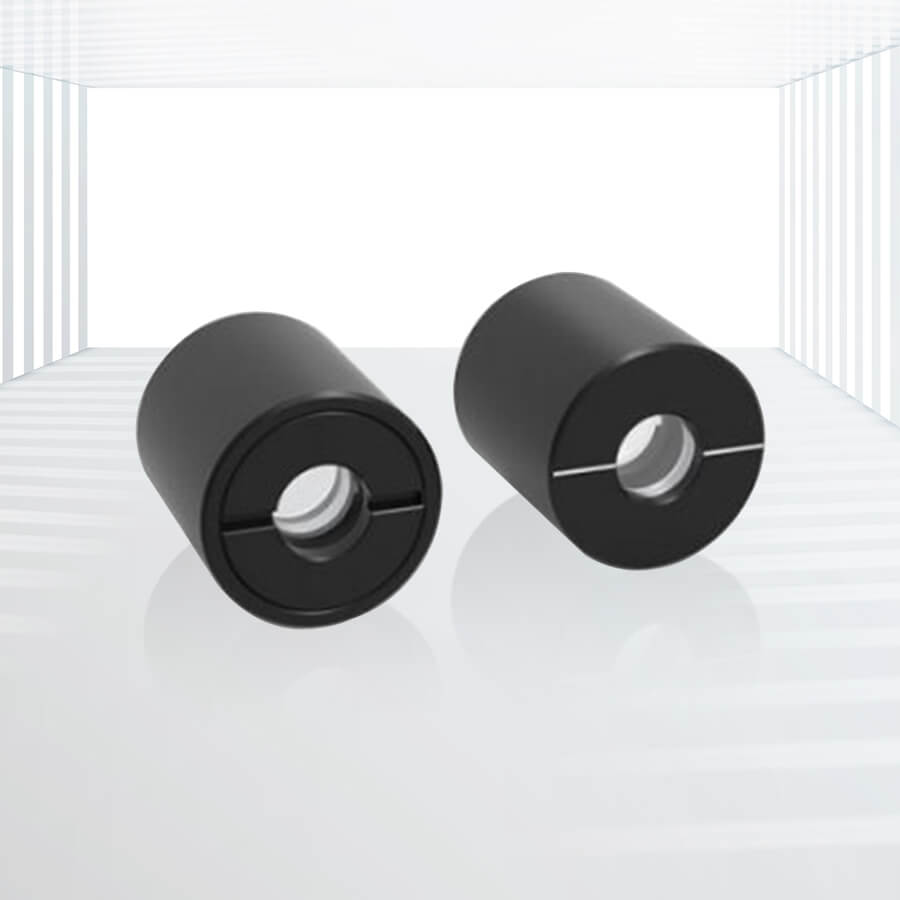

Glan Taylor Polarizers
Air-Spaced Design: The prisms are joined with an air-gap construction, eliminating adhesive and enhancing the polarizer’s durability.
Optical Axis Alignment: The optical axes of the prisms are aligned to ensure that the extraordinary component is transmitted while the ordinary component is reflected.
No Escape Port: Unlike the Glan Laser Polarizer, the Glan Taylor Polarizer does not include an escape port, making it suitable for lower power applications.
Applications: Optical research and testing, Laser technology, Optical communications, Optical Imaging and Detection, etc.
A Glan Taylor Polarizer is an optical device designed to separate polarized light into orthogonal components using two wedge prisms with an air-gap construction. This polarizer is similar in principle to the Glan Laser Polarizer but is specifically tailored for low and medium power applications.
Specifications:
| Item | Calcite | a-BBO | YVO4 |
| Wavelength Range | 350-2000nm | 190-3500nm | 500-4000nm |
| Extinction Ratio | <5×10-5 | <5×10-6 | <5×10-6 |
| Surface Quality | 20/10 S/D | ||
| Beam Deviation | < 3 arc minutes | ||
| Wavefront Distortion | <λ/4@633nm | ||
| Damage Threshold | >200MW/cm2@1064nm, 20ns, 20Hz | ||
| Coating | P Coating Or AR Coating | ||
| Mount | Black Anodized Aluminium | ||
Key Features:
- Air-Spaced Design: The prisms are joined with an air-gap construction, eliminating adhesive and enhancing the polarizer’s durability.
- Optical Axis Alignment: The optical axes of the prisms are aligned to ensure that the extraordinary component is transmitted while the ordinary component is reflected.
- No Escape Port: Unlike the Glan Laser Polarizer, the Glan Taylor Polarizer does not include an escape port, making it suitable for lower power applications.
Applications:
1.Optical research and testing:
- Optical experimentsIn optical laboratories, these polarizers are used in various optical experiments, such as the measurement of the polarization state of light, the study of birefringence phenomena, etc.
2.Laser technology:
- Laser polarization control: Glan Taylor Polarizers are particularly suitable for laser systems to precisely control the polarization state of the laser beam to meet the needs of specific applications.
- High-power laser systemDue to their high damage threshold, these polarizers are able to withstand high-power laser beams and are therefore widely used in high-power laser systems.
3.Optical communications:
- Optical signal polarization managementIn optical communication systems, the polarization state of optical signals has an important impact on the transmission performance. Glan Taylor Polarizers can be used for polarization control and management of optical signals to improve the stability and reliability of communication systems.
4.Optical Imaging and Detection:
- Microscopic imagingIn high-end microscopes such as confocal microscopes, polarizing microscopes, etc., Glan Taylor Polarizers can be used to improve the contrast and clarity of imaging.
- Optical inspection equipment: These polarizers also play an important role in devices that need to accurately detect the polarization state of light, such as ellipsomemeters, polarization spectrometers, etc.
Glan Taylor Polarizers, also known as Glan-Taylor prisms, are high-performance optical components used to produce polarized light from an incident beam. They are made up of two identical birefringent material prisms assembled with an air space, offering exceptional polarization purity and high transmission efficiency. Kingwin Optics offers a range of Glan Taylor Polarizers designed to meet the diverse needs of scientific research, industrial applications, and laser systems.
