Glan Thompson Polarizers

Glan Thompson Polarizers

Large Acceptance Angle: Due to their large aspect ratio, Glan Thompson Optical Polarizers have a large acceptance angle and are suitable for both divergent and focused light sources.

High polarization purity: Capable of providing polarization purity up to 20,000:1.

Wide spectral range: Suitable for applications in a wide spectral range.

Durability: Able to perform well in medium-power applications due to its design and materials.

Applications: Optical experiments, Laser Systems, Optical imaging, Spectroscopy, etc.

Categories: , Tag:

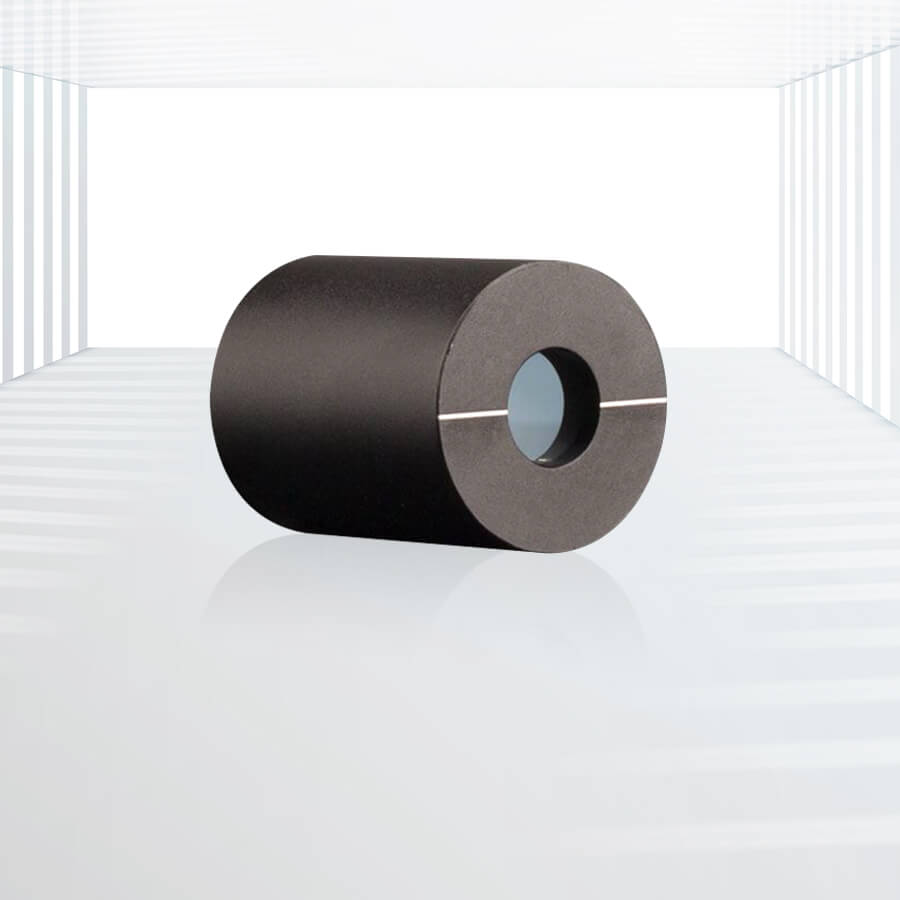

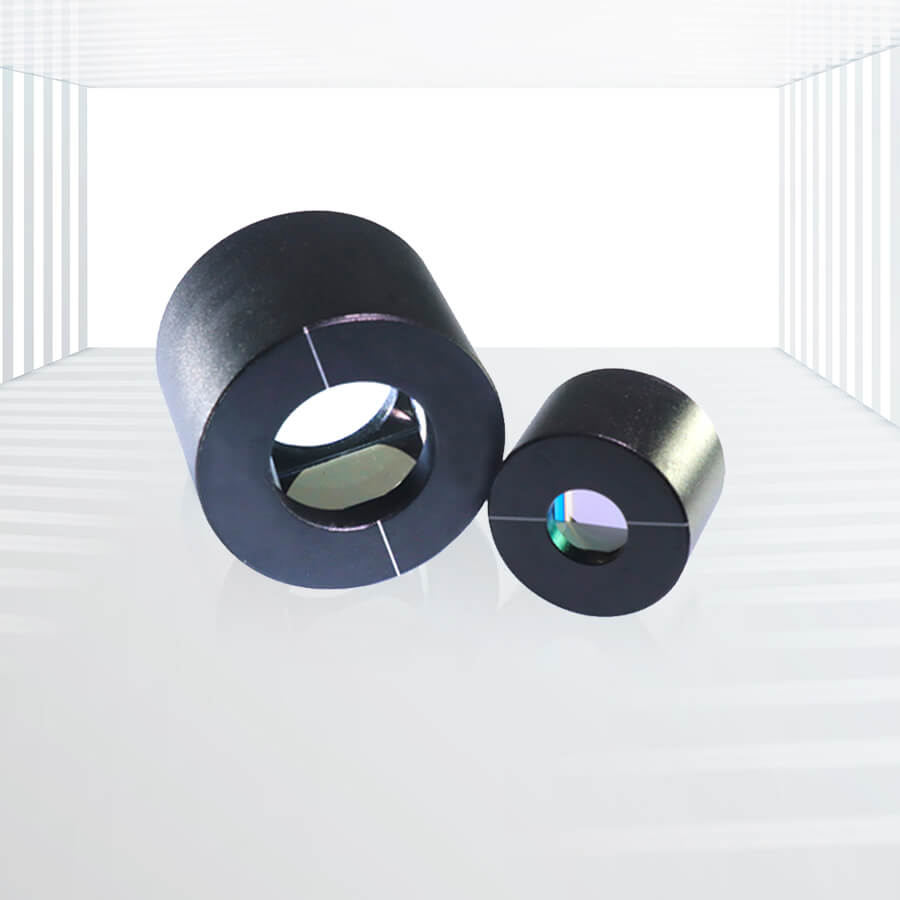

Glan Thompson polarizer is a polarizing optical element composed of two right-angle prisms. Its advantages are large acceptance angle and high polarization purity. It is widely used in optical experiments, laser systems, optical imaging and spectroscopy. However, due to the use of adhesives, its use in high-power applications is limited.

Specifications:

Item Calcite Alpha-BBO
Wavelength Range 350-2000nm 200-900nm
Extinction Ratio <5×10-5 <5×10-6
Surface Quality 20/10 S/D
Beam Deviation < 3 arc minutes
Wavefront Distortion <λ/4@633nm
Damage Threshold >100MW/cm2@1064nm, 20ns, 20Hz
Coating P Coating Or AR Coating
Mount Black Anodized Aluminium



Advantage:

  • Large Acceptance Angle: Due to their large aspect ratio, Glan Thompson Optical Polarizers have a large acceptance angle and are suitable for both divergent and focused light sources.
  • High polarization purity: Capable of providing polarization purity up to 20,000:1.
  • Wide spectral range: Suitable for applications in a wide spectral range.
  • Durability: Able to perform well in medium-power applications due to its design and materials.

Applications:

  • Optical experiments: In experimental setups where high polarization purity and large acceptance angles are required.
  • Laser Systems: Used in laser systems to improve the polarization properties of light.
  • Optical imaging: In optical imaging systems, it is used to improve the contrast and clarity of images.
  • Spectroscopy: In spectroscopy, the separation of different wavelengths and polarization states of light.

Kingwin Optics also provides a range of Glan Polarizers, including Glan Laser Polarizers (suitable for high-power lasers) and Glan Taylor Polarizers (for low and medium-power applications). For more details, you might explore the links or contact Kingwin Optics directly.
