HGTR-KTP Crystals for EO Applications
High anti-grey stain performance: HGTR-KTP crystals have up to 5 to 10 times more resistant to ash stains than KTP crystals grown by ordinary molten salt method by using advanced process methods such as unique flux and heat treatment technology. Once the gray stain is formed, it will absorb a large amount of light energy from the propagating beam, resulting in problems such as device heating, reduced frequency doubling efficiency, and reduced laser output power. The high anti-gray properties of HGTR-KTP crystals enable them to be used stably for long-term and stable application in the frequency conversion of high-power lasers.
High optical quality: The HGTR-KTP crystal has high transmittance and low absorption coefficient, with extremely low absorption coefficient at 1064 nm and 532 nm wavelengths, ensuring high optical quality. At the same time, its optical uniformity and parallelism have also reached a high level, which is suitable for making high-precision electro-optical modulators and other EO devices.
High Damage Threshold: HGTR-KTP crystals have a high laser damage threshold and are able to withstand high power density laser irradiation without damage. This makes it promising for a wide range of applications in high-power laser systems.
Excellent thermal and mechanical properties: HGTR-KTP crystals have high thermal conductivity and good mechanical stability, and can maintain stable performance in high temperature and high stress environments. This is especially important for making EO devices that operate in high-temperature environments.
Wide range of applications: Due to its excellent performance, HGTR-KTP crystals are widely used in laser frequency doubling, sum frequency, differential frequency, parametric oscillation, optical waveguide devices, electro-optical modulators and other EO applications. These applications cover a wide range of fields, including military scientific research, medical, ocean insight, laser weapons, and environmental remote sensing monitoring.
Applications: Electro-optical modulator, Laser frequency multiplier, etc.

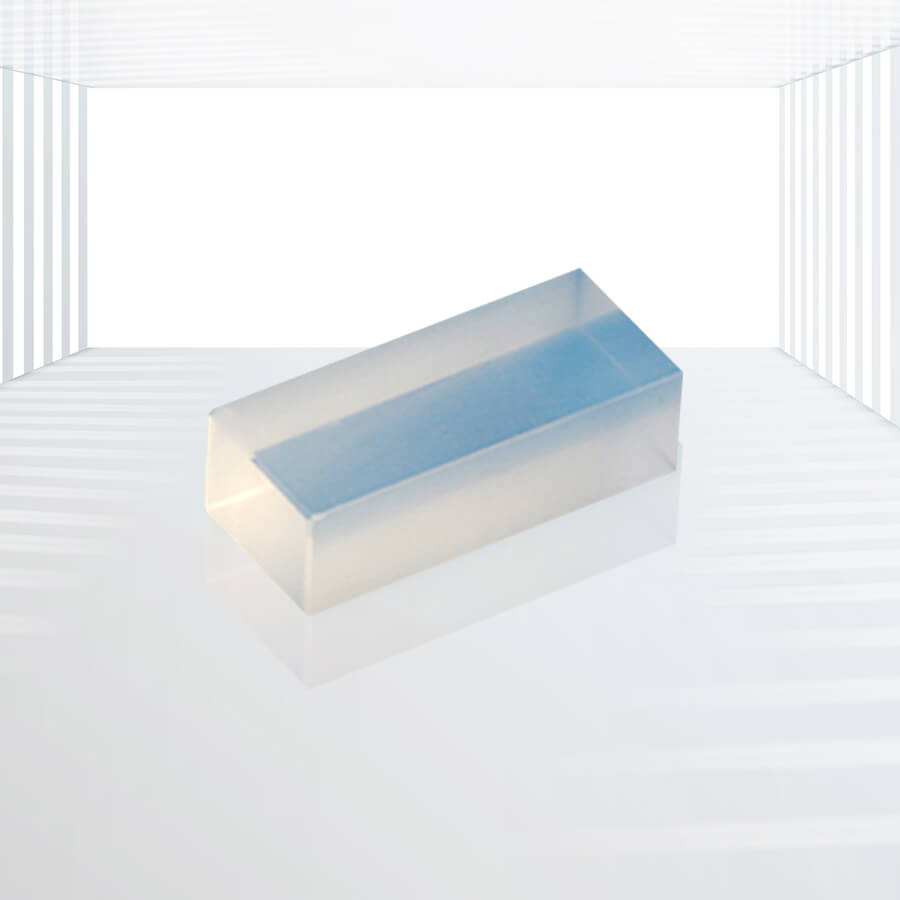

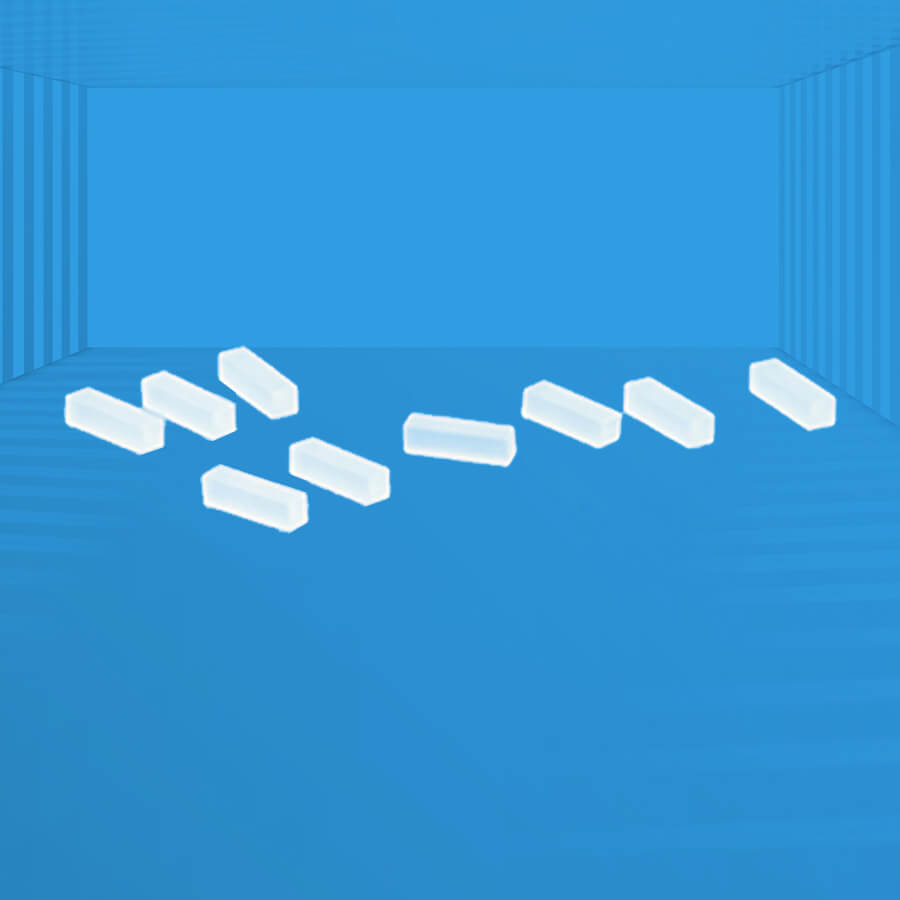

HGTR-KTP crystal is a potassium titanium oxide phosphate (KTiOPO4, KTP) crystal grown by a special process, which has excellent characteristics such as high anti-gray stain, high anti-photodamage threshold, large nonlinear coefficient, and stable chemical and mechanical properties. These properties make HGTR-KTP crystals excellent in electro-optical applications.
Specifications:
| Materials | HGTR-KTP crystals |
| Aperture Range | From 2x2mm to 10x10mm |
| Coating | AR/AR; R<0.2%@1064nm |
| Damage Threshold | >600MW/cm^2 @1064nm, 10nS |
| Wavefront Distortion@1064nm | <Lambda/8 |
| Transmission | >98.5% |
| Extinction Ratio | >20dB |
Features:
- High anti-grey stain performance: HGTR-KTP crystals have up to 5 to 10 times more resistant to ash stains than KTP crystals grown by ordinary molten salt method by using advanced process methods such as unique flux and heat treatment technology. Once the gray stain is formed, it will absorb a large amount of light energy from the propagating beam, resulting in problems such as device heating, reduced frequency doubling efficiency, and reduced laser output power. The high anti-gray properties of HGTR-KTP crystals enable them to be used stably for long-term and stable application in the frequency conversion of high-power lasers.
- High optical quality: The HGTR-KTP crystal has high transmittance and low absorption coefficient, with extremely low absorption coefficient at 1064 nm and 532 nm wavelengths, ensuring high optical quality. At the same time, its optical uniformity and parallelism have also reached a high level, which is suitable for making high-precision electro-optical modulators and other EO devices.
- High Damage Threshold: HGTR-KTP crystals have a high laser damage threshold and are able to withstand high power density laser irradiation without damage. This makes it promising for a wide range of applications in high-power laser systems.
- Excellent thermal and mechanical properties: HGTR-KTP crystals have high thermal conductivity and good mechanical stability, and can maintain stable performance in high temperature and high stress environments. This is especially important for making EO devices that operate in high-temperature environments.
- Wide range of applications: Due to its excellent performance, HGTR-KTP crystals are widely used in laser frequency doubling, sum frequency, differential frequency, parametric oscillation, optical waveguide devices, electro-optical modulators and other EO applications. These applications cover a wide range of fields, including military scientific research, medical, ocean insight, laser weapons, and environmental remote sensing monitoring.
Applications:
- Electro-optical modulator: HGTR-KTP crystal can be used to make high-performance electro-optical modulator to achieve fast modulation and switching of optical signals. It has important applications in optical communication and optical information processing systems.
- Laser frequency multiplier: Using the nonlinear optical characteristics of the HGTR-KTP crystal, the frequency doubling conversion of the laser frequency can be realized, so as to obtain a shorter wavelength laser output. This has a wide range of applications in laser processing, medical and scientific research.
HGTR-KTP crystals have significant advantages and wide application prospects in electro-optical applications. With the continuous progress of technology and the increase of market demand, the research and application of HGTR-KTP crystal will be further developed.
