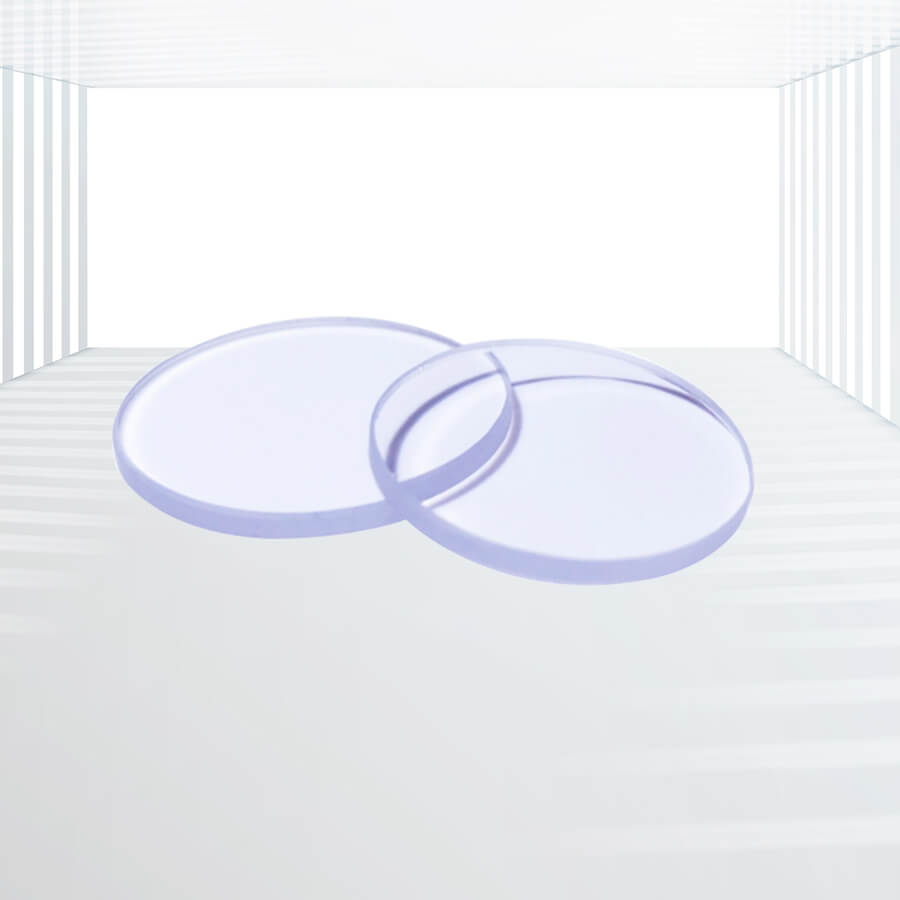

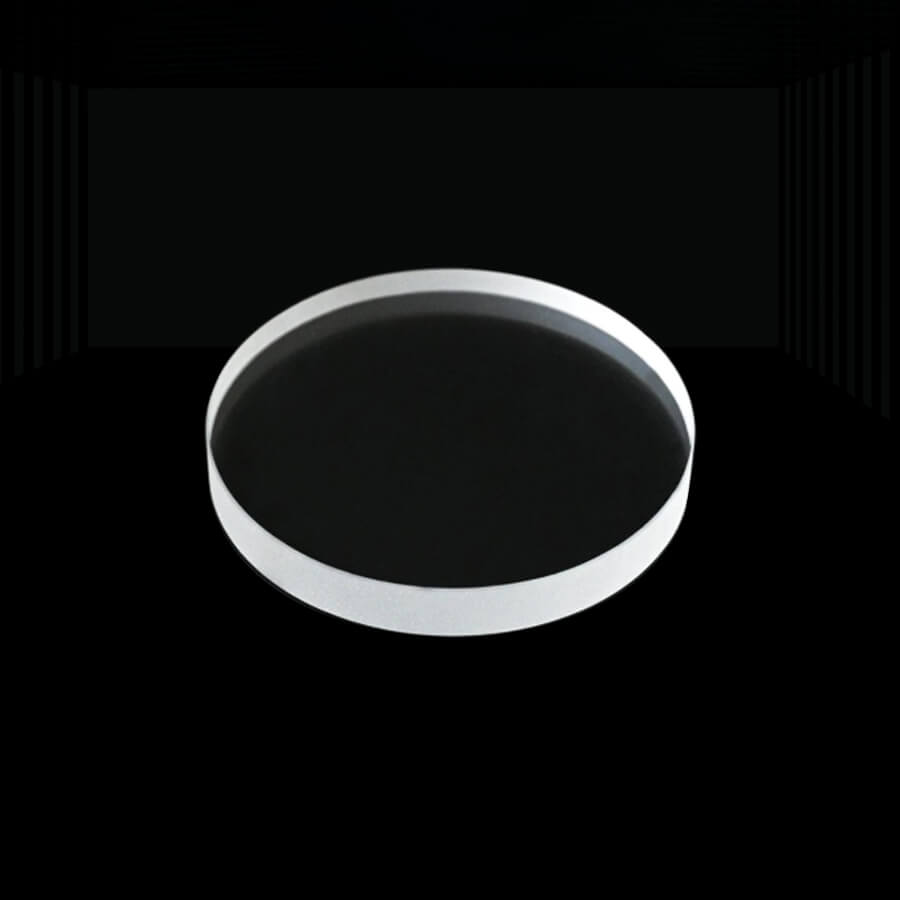

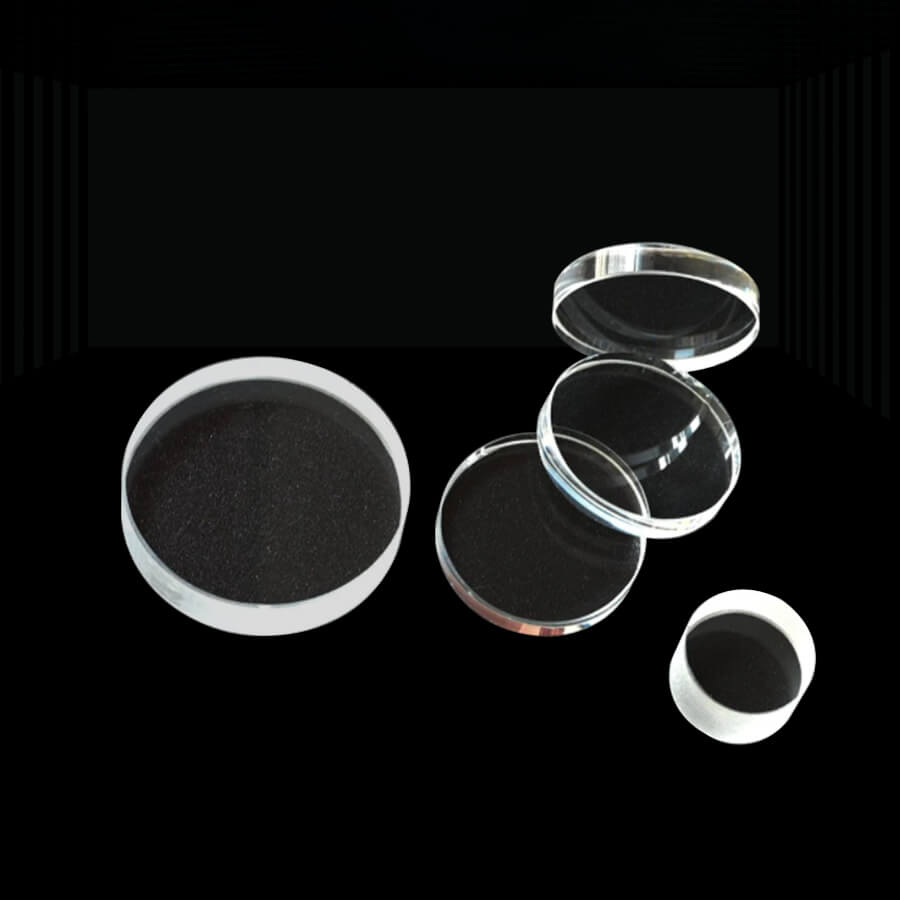

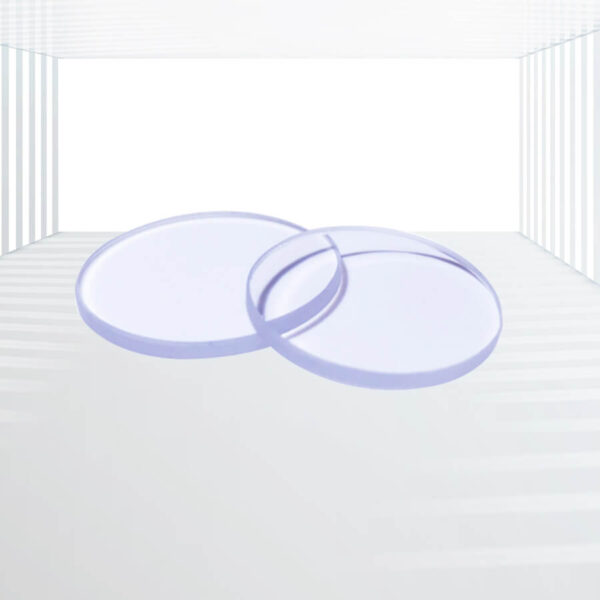

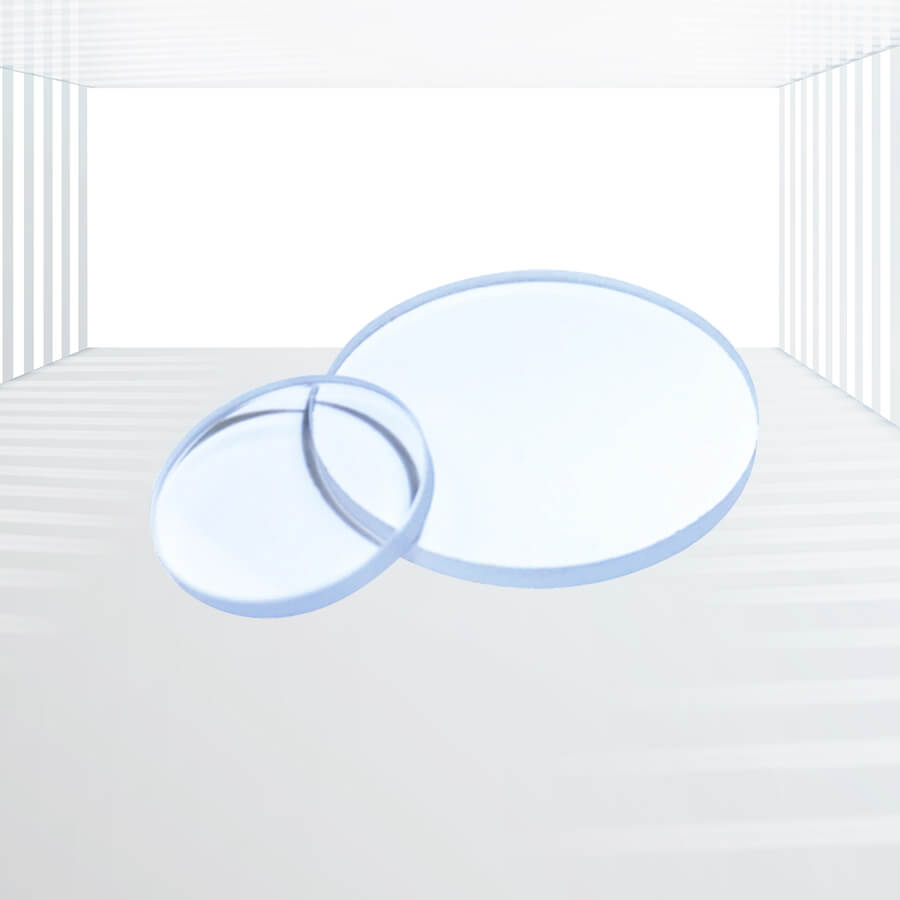

High Precision Thin N-BK7, UV Fused Silica Windows
Double Surface Polishing Method:
Polishes both surfaces in one go.
Eliminates stress-release issues caused by bonding and detachment from pitch plates.
Significantly reduces surface flatness variations.
Outstanding Functionality:
Surface quality of 10/5 Scratch/Dig.
Minimum thickness down to 0.03mm.
Diameter down to 0.5mm.
Materials:
BK7: Suitable for visible to IR spectrum (350-2000nm).
UV Fused Silica: Ideal for UV wavelengths due to low absorption.
Quartz Crystals: Available for various applications.
Superior Optical and Mechanical Properties:
High mechanical strength and thermal stability.
Suitable for operation under diverse conditions.
Applications: Femtosecond Lasers, Spectroscopy, Optical Coherence Tomography (OCT), Laser Optics, Scientific Research, etc.
Kingwin Optics has developed an advanced double surface polishing method for producing high-precision thin optical windows or substrates. This technique polishes both surfaces simultaneously, ensuring accurate control of surface flatness and enhancing surface quality to a 10/5 S/D standard. These high-precision thin windows meet the stringent criteria required for ultra-thin (0.1mm, 0.2mm) applications with high surface flatness (λ/10 or λ/4 @633nm), ideal for precision optical systems such as femtosecond lasers, which are increasingly popular.
Key Features:
1.Double Surface Polishing Method:
- Polishes both surfaces in one go.
- Eliminates stress-release issues caused by bonding and detachment from pitch plates.
- Significantly reduces surface flatness variations.
2.Outstanding Functionality:
- Surface quality of 10/5 Scratch/Dig.
-
Parallelism of 10 arcseconds.
- Minimum thickness down to 0.03mm.
- Diameter down to 0.5mm.
3.Materials:
- BK7: Suitable for visible to IR spectrum (350-2000nm).
- UV Fused Silica: Ideal for UV wavelengths due to low absorption.
- Quartz Crystals: Available for various applications.
4.Superior Optical and Mechanical Properties:
- High mechanical strength and thermal stability.
- Suitable for operation under diverse conditions.
Applications：
1.Femtosecond Lasers:
- Ultra-thin windows with high surface flatness are crucial for maintaining the integrity of femtosecond laser pulses.
- Applications include medical imaging, micromachining, and high-precision spectroscopy.
2.Spectroscopy:
- High transmission and low absorption in the UV to IR spectrum enhance the accuracy and sensitivity of spectroscopic measurements.
- Suitable for use in UV-VIS and infrared spectrometers.
3.Optical Coherence Tomography (OCT):
- The high precision and low scatter of these windows are vital for high-resolution imaging in OCT systems.
- Used in medical diagnostics, particularly in ophthalmology.
4.Laser Optics:
- Essential for beam shaping and steering in high-power laser systems.
- Applications include laser cutting, welding, and marking.
5.Scientific Research:
- Utilized in experimental setups requiring minimal optical distortion and high transmission.
- Ideal for physics and chemistry research involving light-matter interactions.
