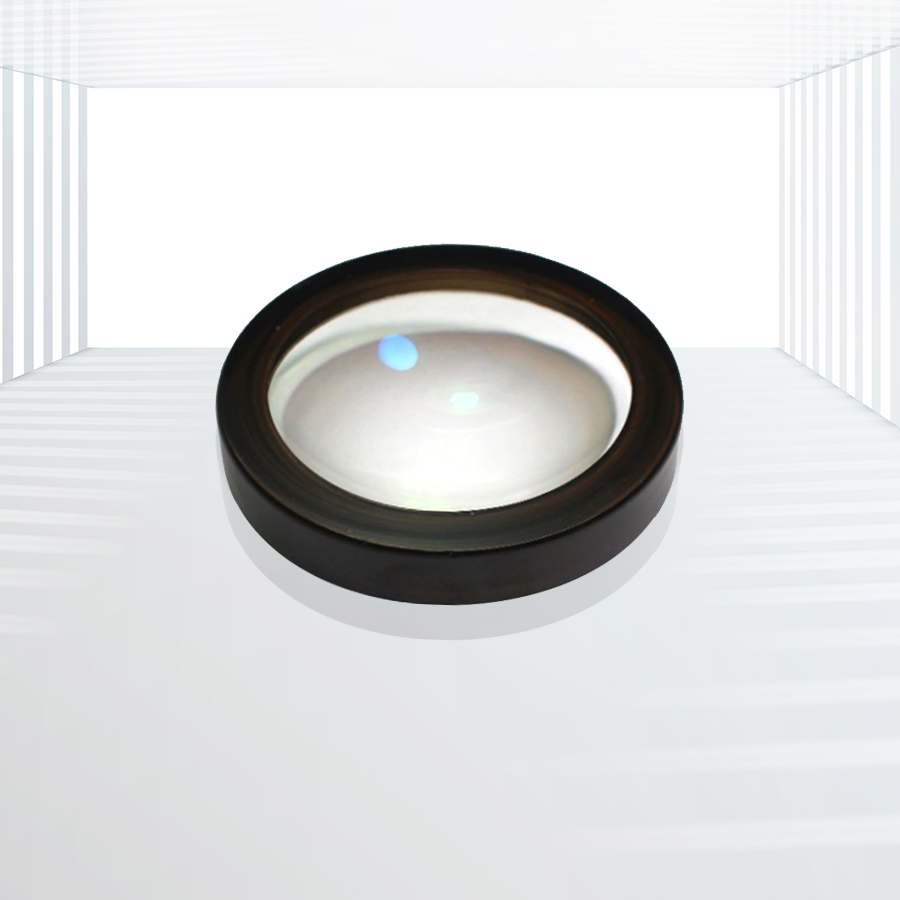

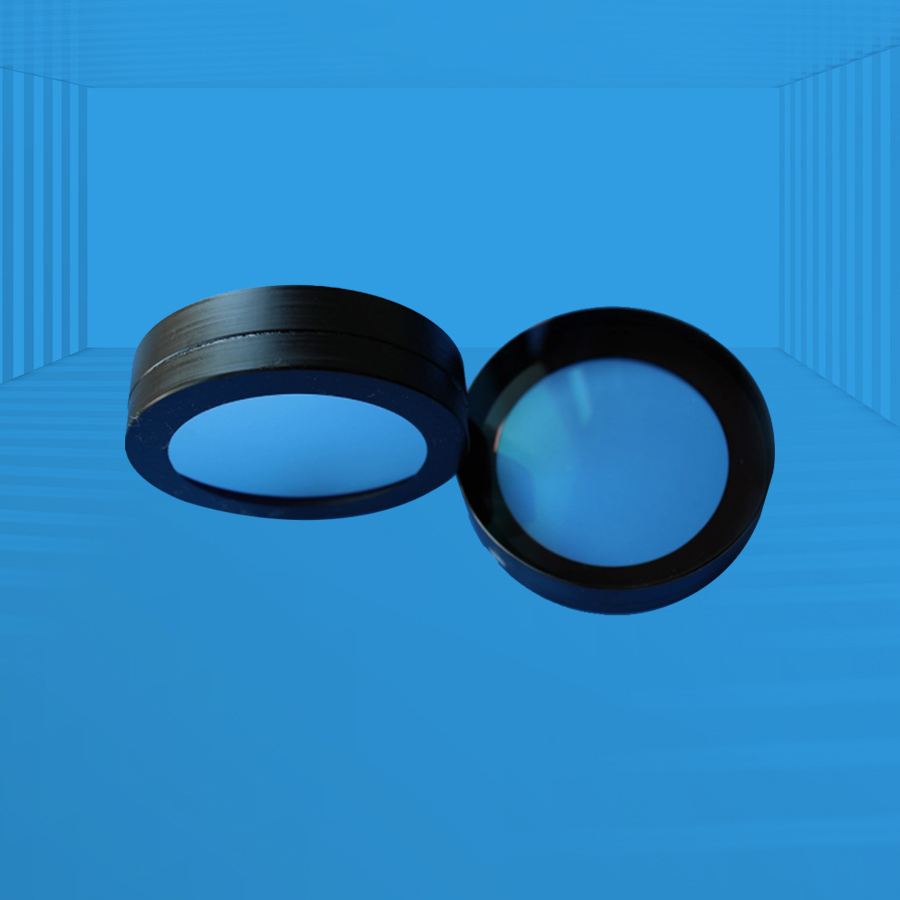

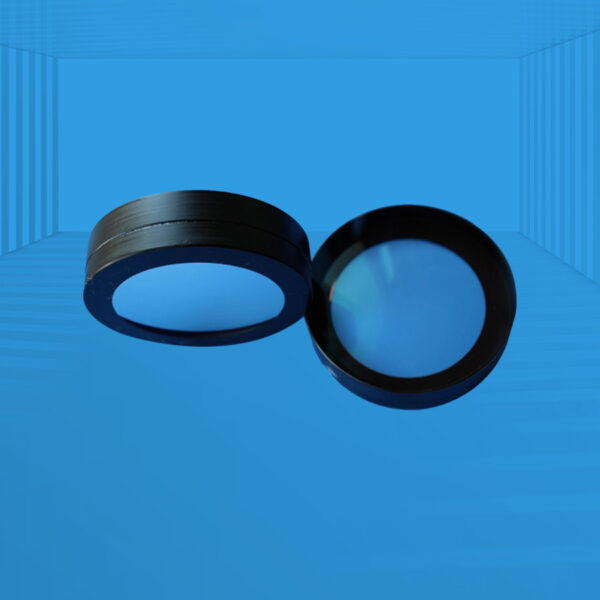

Infrared Window Assemblies for Thermal Imaging Camera
Safety: Provides a secure method to inspect energized equipment, significantly reducing the risk of arc flash incidents.
Efficiency: Decreases inspection time by allowing thermal cameras to view equipment without dismantling panels or doors.
Versatility: Suitable for a wide range of applications, from electrical equipment to industrial ovens.
Applications: Thermal Cameras for High-Temperature Monitoring, High-Voltage Switchgear Viewing Panes, etc.
Infrared (IR) Window Assemblies are critical components for high-power and high-voltage electric installations to ensure safety and efficiency. By allowing thermal image cameras a direct line of sight into energized electrical equipment without opening cabinet doors or panels, these window assemblies protect users from arc flash incidents and reduce inspection time.
Specifications:
| Flange | Metal |
| Housing or Cover | Metal Materials |
| Optics | CaF2, BaF2, Germanium |

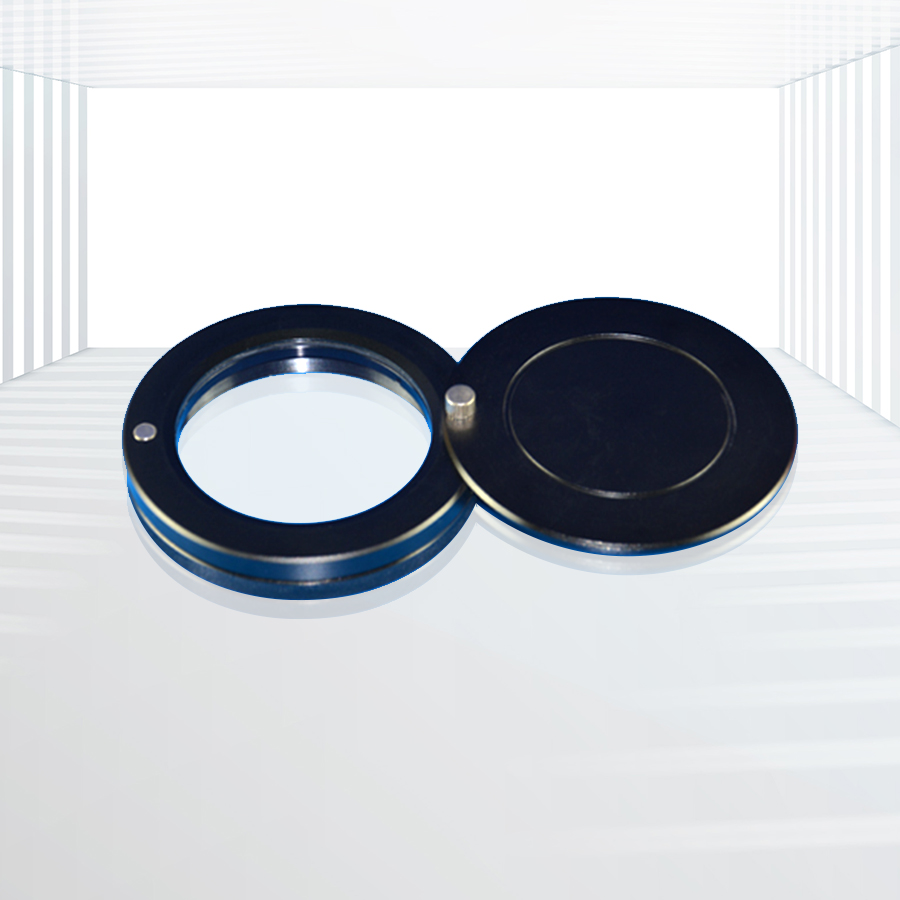

| Cover Fixing | Fixed by Magnet nub |
| Water and Dust Ingress | IP67 of NF EN60529 |
Specifications of Common Materials used in the Infrared Optics:
| Material | Chemical Symbol | Transmission Wavelength (µm) | Reflection (Two Surfaces) | Knoop Hardness |
| Calcium Fluoride | CaF2 | 0.13-10 | 5% | 158 |
| Barium Fluoride | BaF2 | 0.15-12.5 | 7% | 82 |
| Germanium | Ge | 1.8-23 | 53% | 780 |
| Zinc Selenide | ZnSe | 0.5-22 | 29% | 120 |
| Sapphire | Al2O3 | 0.15-5.5 | 14% | 2000 |
| Silicon | Si | 0.14-6 | 29% | 850 |
| IR Polymer | N/A | 0.15-22 | 21% | N/A |
Kingwin Optics Infrared Window Assemblies:
Kingwin Optics offers both standard and custom infrared inspection window assemblies, designed to meet the stringent requirements of various industrial applications.
Material Options:
1.Calcium Fluoride (CaF2)
- Transmission Range: Deep UV to MWIR (180 nm to 8 µm)
- Properties: High transmission, low absorption, excellent chemical resistance, and high damage threshold.
2.Barium Fluoride (BaF2)
- Transmission Range: Deep UV to LWIR (0.2 to 11.0 µm)
- Properties: High resistance to high-energy radiation, excellent transmission in UV and LWIR spectra, though sensitive to moisture and temperature changes.
3.Germanium (Ge)
- Transmission Range: Broadband IR (2 to 14 µm)
- Properties: High transmission in MWIR and LWIR regions, robust and chemically inert, though sensitive to high temperatures above 90°C.
Design and Construction:
- Dust-Tight and Waterproof: IP67-rated design ensures protection against dust and water ingress, maintaining functionality in harsh environments.
- Material Housings: Anodized aluminum metal housings provide durability and resistance to environmental conditions.
- Easy Installation: No screws are required, simplifying the installation process and enhancing ease of use.
Features and Benefits:
- Safety: Provides a secure method to inspect energized equipment, significantly reducing the risk of arc flash incidents.
- Efficiency: Decreases inspection time by allowing thermal cameras to view equipment without dismantling panels or doors.
- Versatility: Suitable for a wide range of applications, from electrical equipment to industrial ovens.
Applications:
- High-Voltage Switchgear Viewing Panes: Enables safe inspection of electrical components without exposure to hazardous conditions.
- Thermal Cameras for High-Temperature Monitoring: Ideal for overseeing metallurgic ovens and other industrial equipment operating at high temperatures.
Kingwin Optics Infrared Window Assemblies offer robust, efficient, and safe solutions for thermal imaging in high-power and high-voltage electric installations. With options in CaF2, BaF2, and Germanium, these assemblies cater to a broad range of IR inspection needs across different spectral regions. The dust-tight, waterproof design and easy installation make them a reliable choice for ensuring safety and efficiency in industrial and electrical inspection applications.
