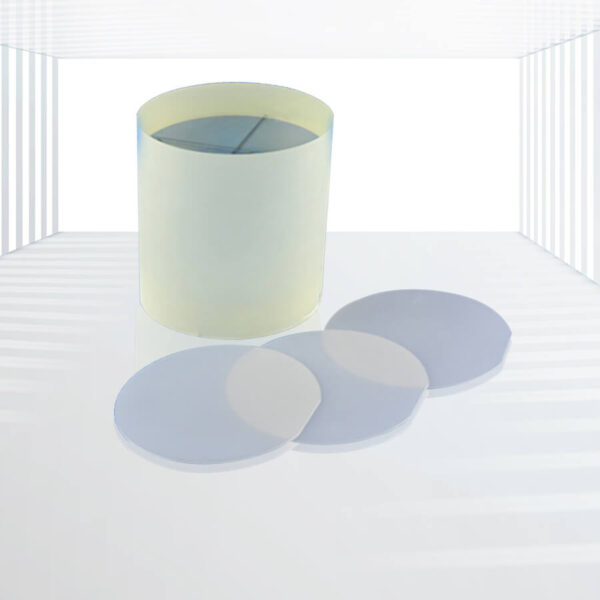

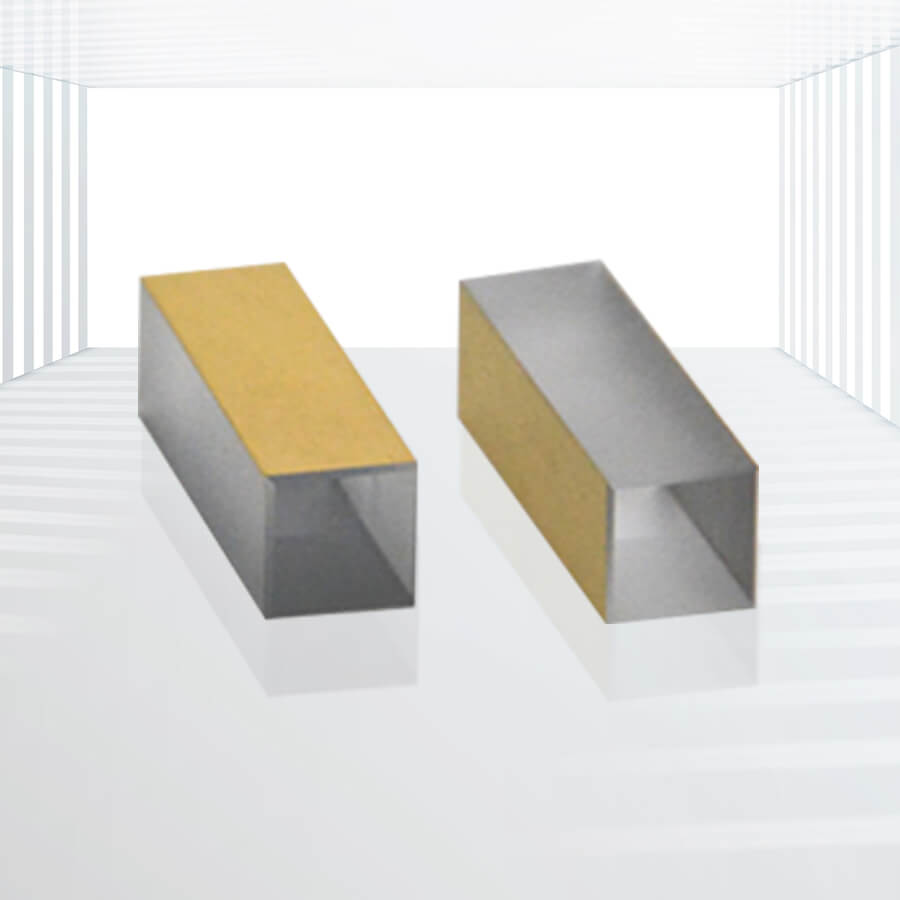

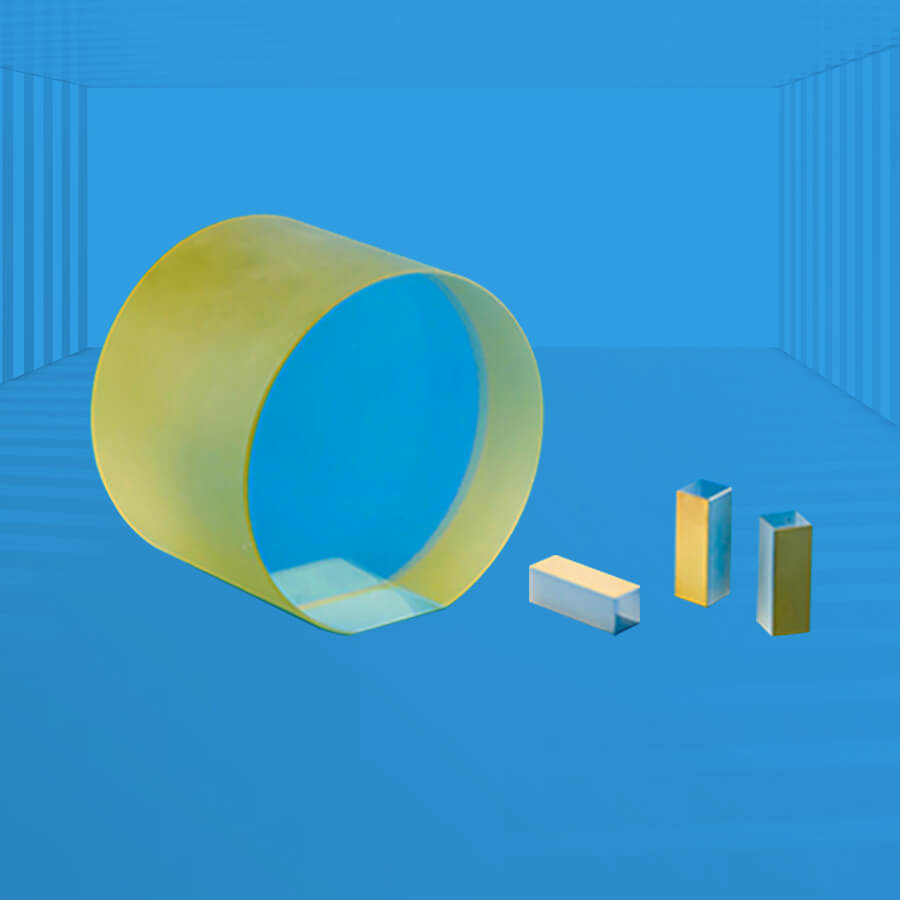

LiNbO3 and MgO:LiNbO3 Crystals
LiNbO3 Crystals:
Excellent medium for second harmonic generation (SHG) at wavelengths exceeding 1µm.
Suitable for optical parametric oscillation (OPO), optical parametric amplifiers (OPA), and tunable infrared output generation through difference frequency mixing (DFM).
Broad spectral transmission range of 0.3-5.2 microns, spanning visible to MWIR wavelengths.
High laser-induced damage threshold, suitable for high-power applications.
Large nonlinearities allow for higher effective nonlinear coefficients (deff) at lower power intensities.
MgO:LiNbO3 Crystals:
Higher optical damage threshold compared to LiNbO3 crystals, making them ideal for high-power applications.
Less prone to photorefractive damage, alleviating issues in frequency conversion.
Exhibits particular advantages for non-critical phase-matched (NCPM) second harmonic generation/doubling frequencies (SHG) at room temperature and sum-frequency generation (SFG).
Applications: Nonlinear Optics, High-Power Applications, Optical Processing, etc.
Kingwin Optics offers high-quality LiNbO3 and MgO:LiNbO3 crystals for various applications in nonlinear optics. These crystals are renowned for their exceptional electro-optic and piezoelectric properties, making them versatile solutions for a wide range of optical processing tasks.
Specifications:
| Crystal Materials | MgO:LiNbO3 Crystals (MgO doping concentration 0.6-1.0mol% or 5mol%) LiNbO3 Crystal |
| Dimension | Custom |
| Width and Height Tolerance | W(+/-0.1mm) x H(+/-0.1mm) |
| Length Tolerance | +/-0.2mm |
| Surface Quality | 20/10 S/D |
| Parallelism | <20 arc seconds |
| Flatness | < Lambda/10 @633nm |
| Perpendicularity | <5 arc minutes |
| Perpendicularity | <5 arc minutes |
| Chamfer | 0.2mmx45° |
| Lateral Surface | Fine ground |
| Orientation Tolerance | < 10 arc minute |
| Wavefront Distortion | <Lambda/4@633nm |
Detailed Product Description:
1.LiNbO3 Crystals:
- Excellent medium for second harmonic generation (SHG) at wavelengths exceeding 1µm.
- Suitable for optical parametric oscillation (OPO), optical parametric amplifiers (OPA), and tunable infrared output generation through difference frequency mixing (DFM).
- Broad spectral transmission range of 0.3-5.2 microns, spanning visible to MWIR wavelengths.
- High laser-induced damage threshold, suitable for high-power applications.
- Large nonlinearities allow for higher effective nonlinear coefficients (deff) at lower power intensities.
2.MgO:LiNbO3 Crystals:
- Higher optical damage threshold compared to LiNbO3 crystals, making them ideal for high-power applications.
- Less prone to photorefractive damage, alleviating issues in frequency conversion.
- Exhibits particular advantages for non-critical phase-matched (NCPM) second harmonic generation/doubling frequencies (SHG) at room temperature and sum-frequency generation (SFG).
Applications:
1.Nonlinear Optics:
- Frequency conversion, electro-optic modulation, and SAW wafers.
- SHG, OPO, OPA, and tunable infrared output generation.
2.High-Power Applications:
- MgO:LiNbO3 crystals are particularly suitable for high-power applications due to their higher optical damage threshold.
3.Optical Processing:
- LiNbO3 crystals are ideal for manufacturing modulators due to their large electro-optic coefficients.
Peer-to-Point Description:
Kingwin Optics’ LiNbO3 and MgO:LiNbO3 crystals offer exceptional performance in nonlinear optics applications. With their broad spectral transmission range, high laser-induced damage threshold, and large nonlinearities, these crystals provide versatile solutions for frequency conversion, electro-optic modulation, and more. The MgO:LiNbO3 crystals, with their higher optical damage threshold and reduced photorefractive damage, are particularly suitable for high-power applications. Choose Kingwin Optics for high-quality LiNbO3 and MgO:LiNbO3 crystals for your optical processing needs.
