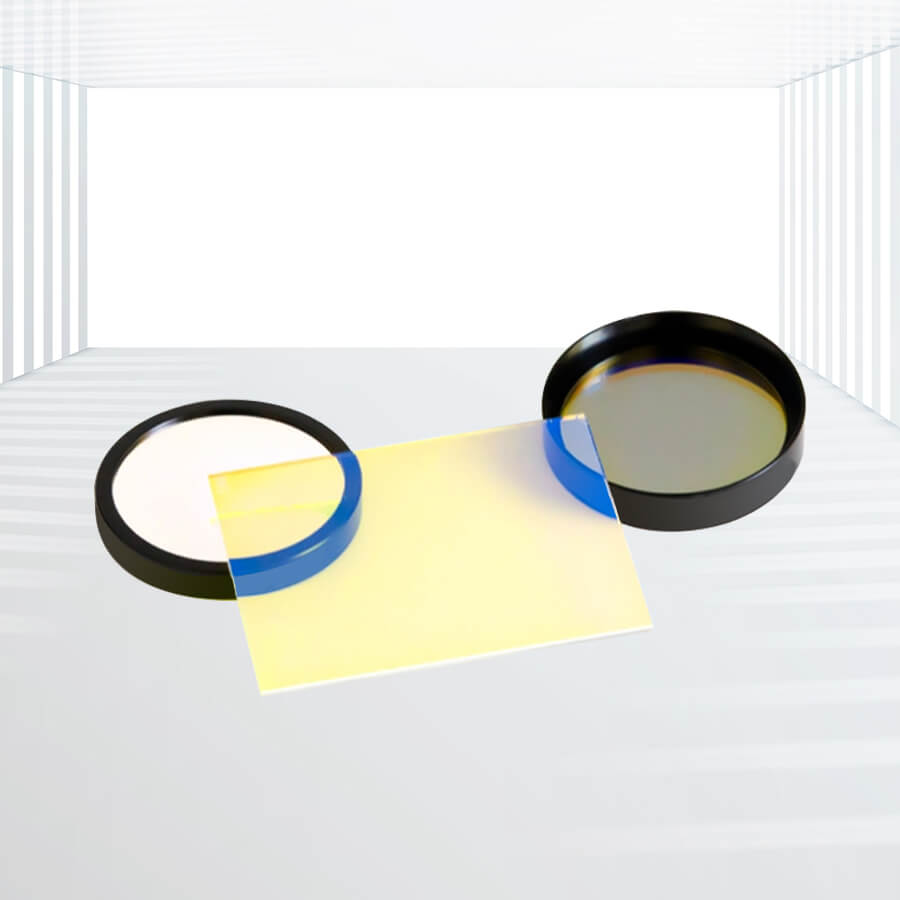

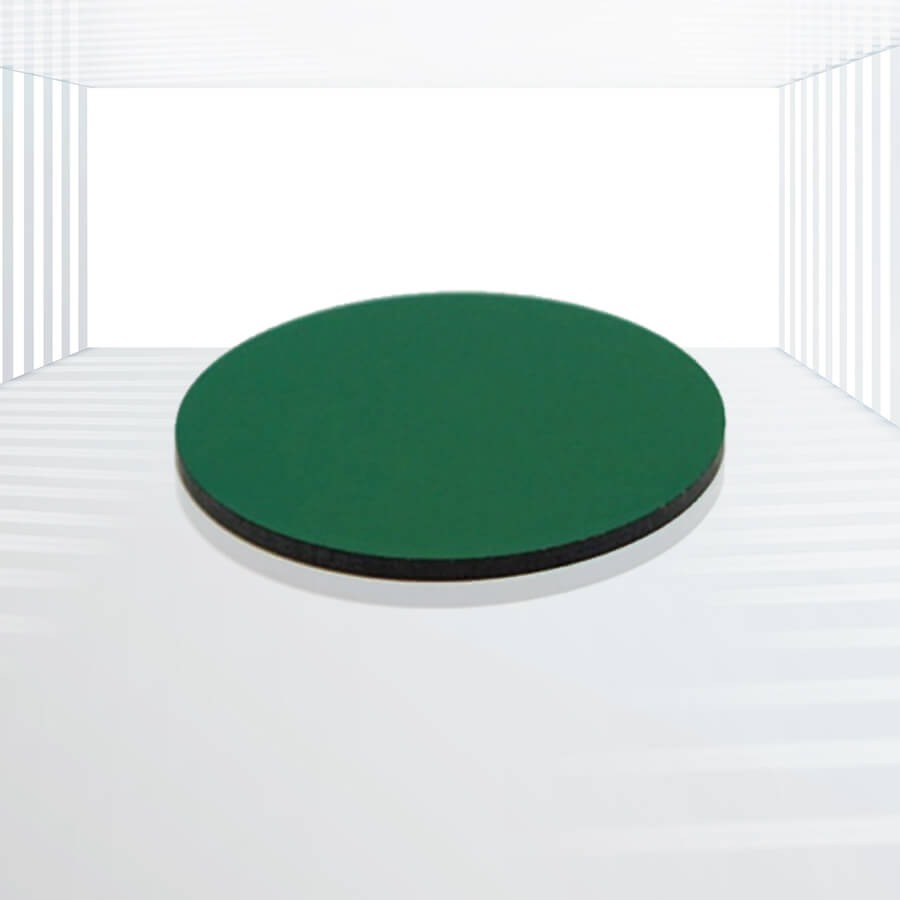

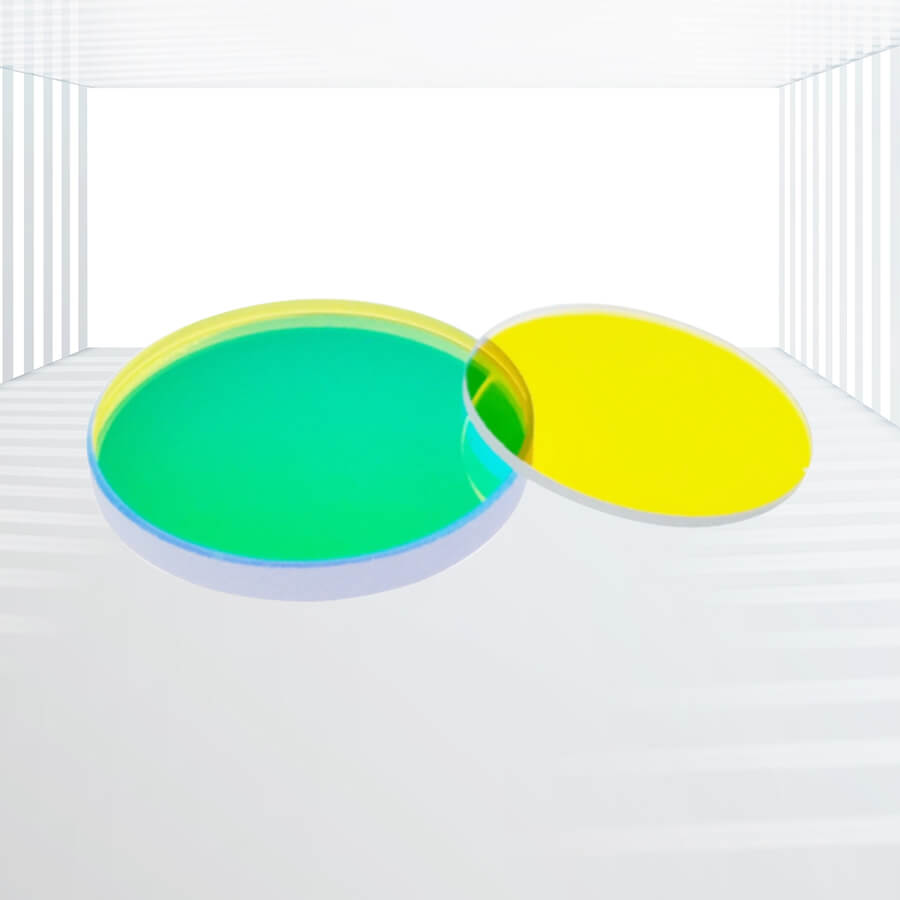

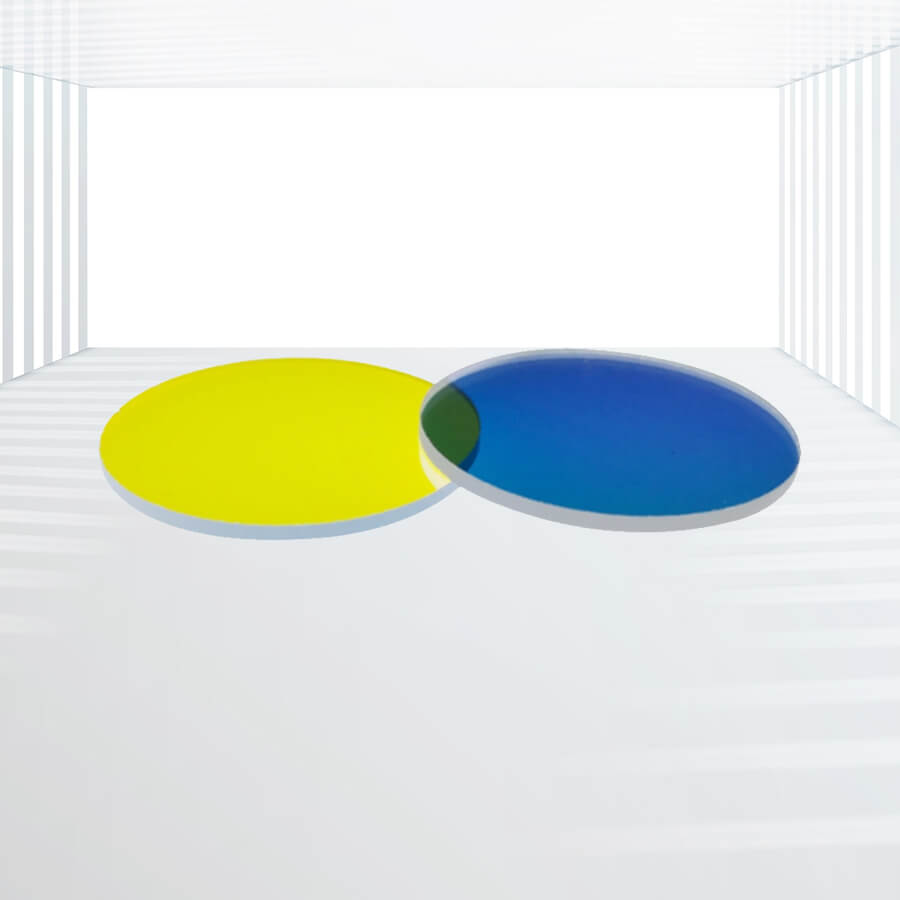

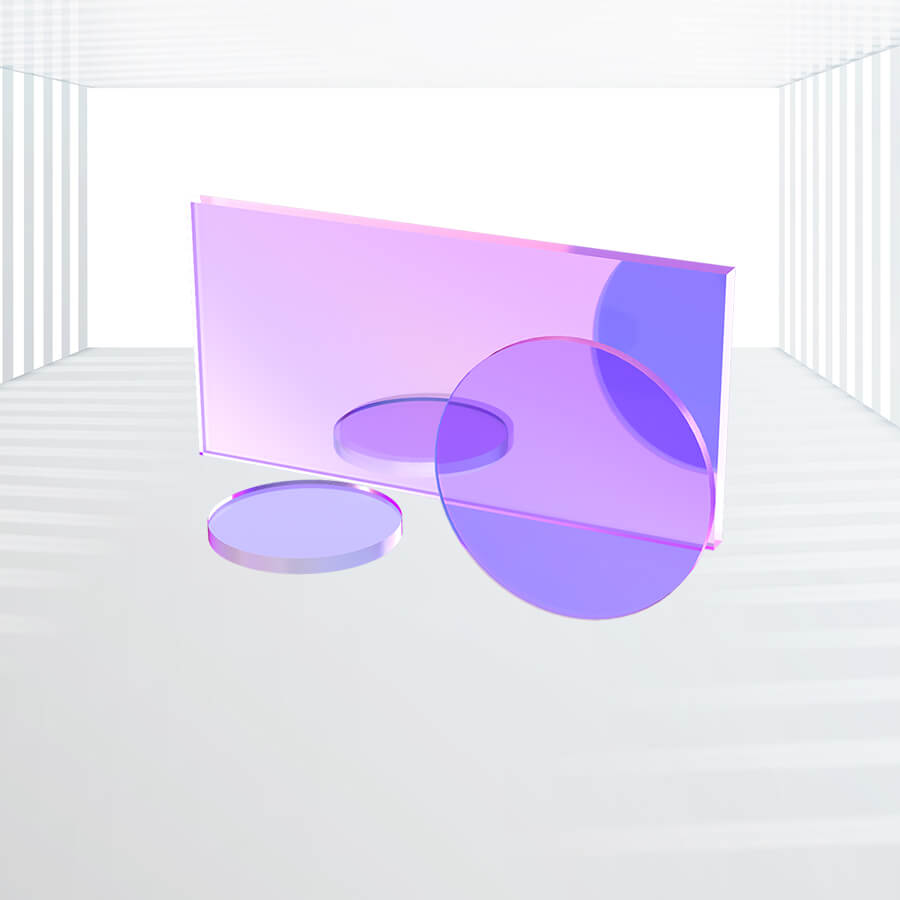

Longpass Dichroic Filters
Sharp Cut-on Slope: Provides optimum optical selection.
High Durability: Designed to withstand high-intensity light sources.
Wide Range of Filters: Including long-pass, short-pass, bandpass, band stop (notch) filters, and color correction filters.
Applications: CCD Imaging, Digital Projection, Light Shows, Machine Vision, Printing, etc.

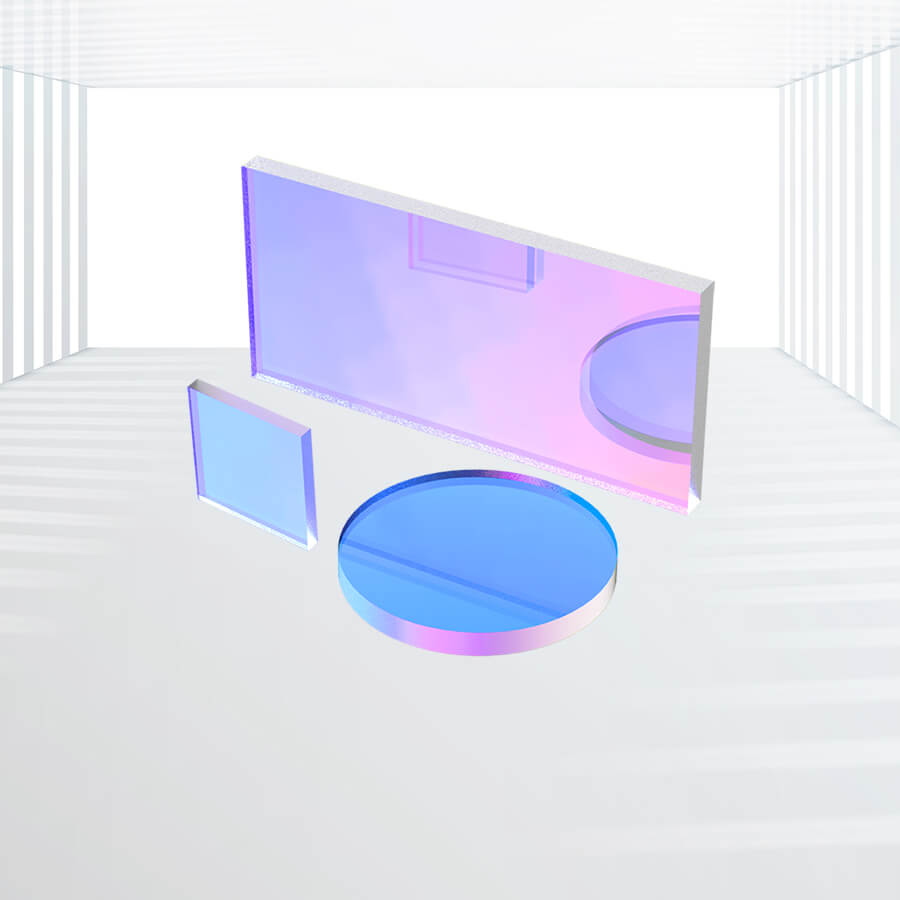

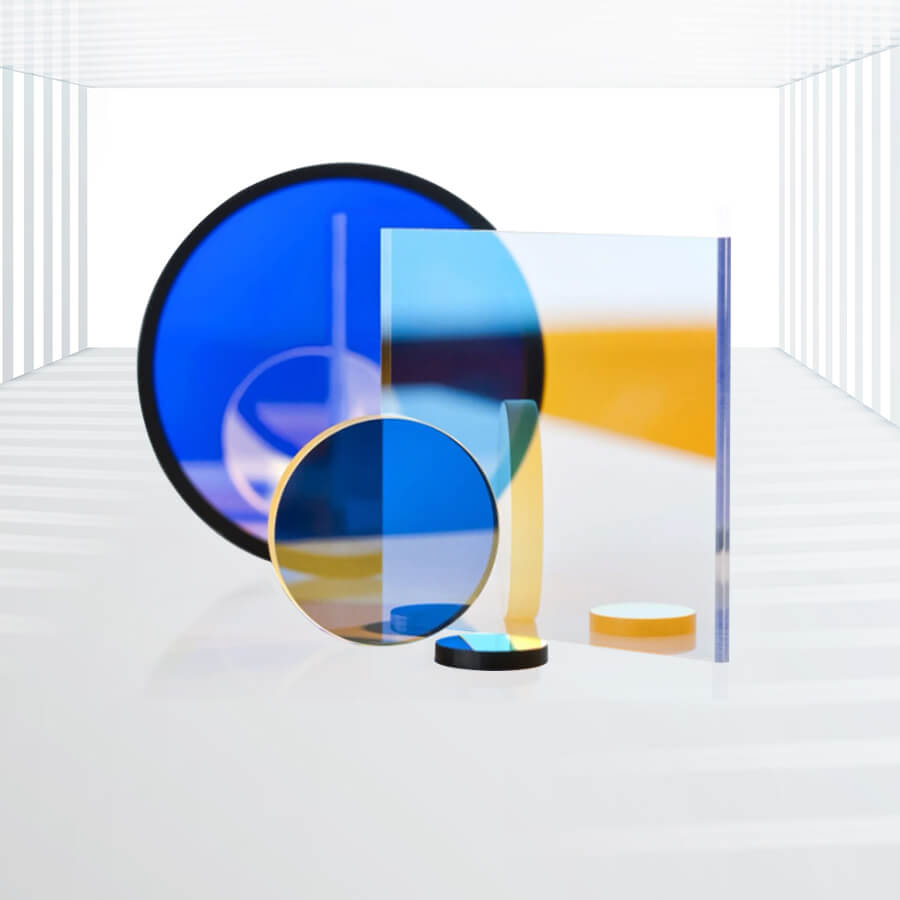

Dichroic Filters, also known as Interference Filters, are highly precise color filters that transmit light within a narrow range of colors while reflecting the unwanted portions. These filters split light into two components: one component is transmitted, and the other is reflected. This unique ability allows users to select spectral regions of interest and determine whether the separated light spectrum should be utilized or discarded.
Specifications:
550nm, 638nm, 900nm Longpass Dichroic Filters | |||
Cut-on Wavelength | 550nm | 638nm | 900nm |
Size | customized | customized | customized |
Angle of Incident (AOI) | 45° | 45° | 45° |
Transmission Range | Tavg≥90%@565-800nm | Tavg≥88%@655-700nm | Tavg≥90%@932-1200nm |
Reflection Range | Ravg≥95%@380nm-533nm | Ravg≥90%@580nm-621nm | Ravg≥90%@400nm-872nm |
Surface Quality | 40/20 S/D | 40/20 S/D | 40/20 S/D |
Coating Type | Hard coating | Hard coating | Hard coating |
Key Features:
- Sharp Cut-on Slope: Provides optimum optical selection.
- High Durability: Designed to withstand high-intensity light sources.
- Wide Range of Filters: Including long-pass, short-pass, bandpass, band stop (notch) filters, and color correction filters.
Applications:
- CCD Imaging: Enhances color separation for clearer and more accurate imaging.
- Digital Projection: Improves image quality by filtering out unwanted wavelengths.
- Light Shows: Adds vibrant and precise color effects.
- Machine Vision: Enhances the performance of vision systems by controlling the light spectrum.
- Printing: Ensures accurate color reproduction by filtering specific wavelengths.
Kingwin Optics’ Dichroic Filters are ideal components for a wide range of optical applications, offering superior light control and precision. With various options available, these filters are designed to meet the specific needs of different industries and applications. For expert guidance and customized solutions, our team at Kingwin Optics is always available to assist you.
