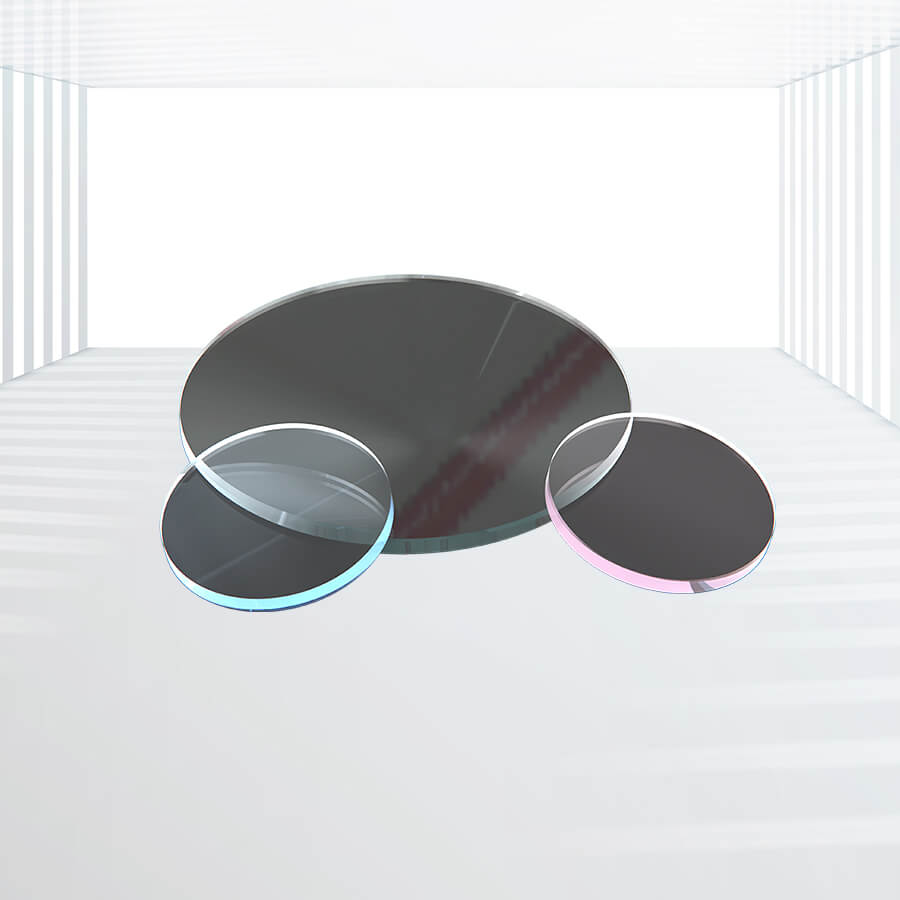

Low Order Waveplates
Low Order Design:
Offers improved optical characteristics over common multiple-order waveplates.
Generates the desired phase delay with a surplus of several full wavelength phase shifts.
Thinner and less dependent on wavelength, ambient temperature, and the angle of incidence.
Pricing:
Low Order Waveplates are more affordable than zero-order waveplates.
Suitable for large-scale and low-cost production requirements.
Versatile Options:
Available in Low Order Half Waveplates for rotation of the polarization plane.
Available in Low Order Quarter Waveplates for conversion between linear polarization and circular polarization.
Wide Spectral Range:
Quartz Low Order Waveplates can be used for UV to NWIR spectral ranges.
MgF2 Waveplates can be used for wavelengths up to the MWIR (maximum 7000nm) region.
High Damage Threshold:
Robust single waveplate structure with a high damage threshold greater than 500MW/cm^2.
Enhanced Surface Coatings:
Surfaces are coated with AR coatings for improved performance.

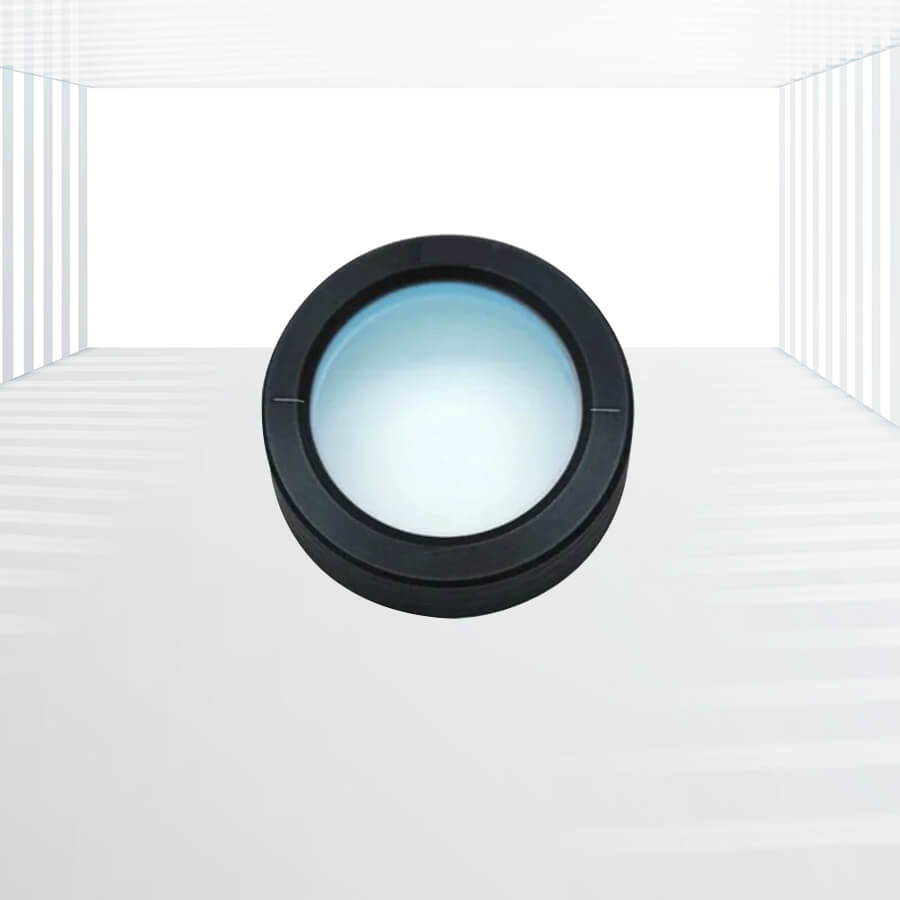

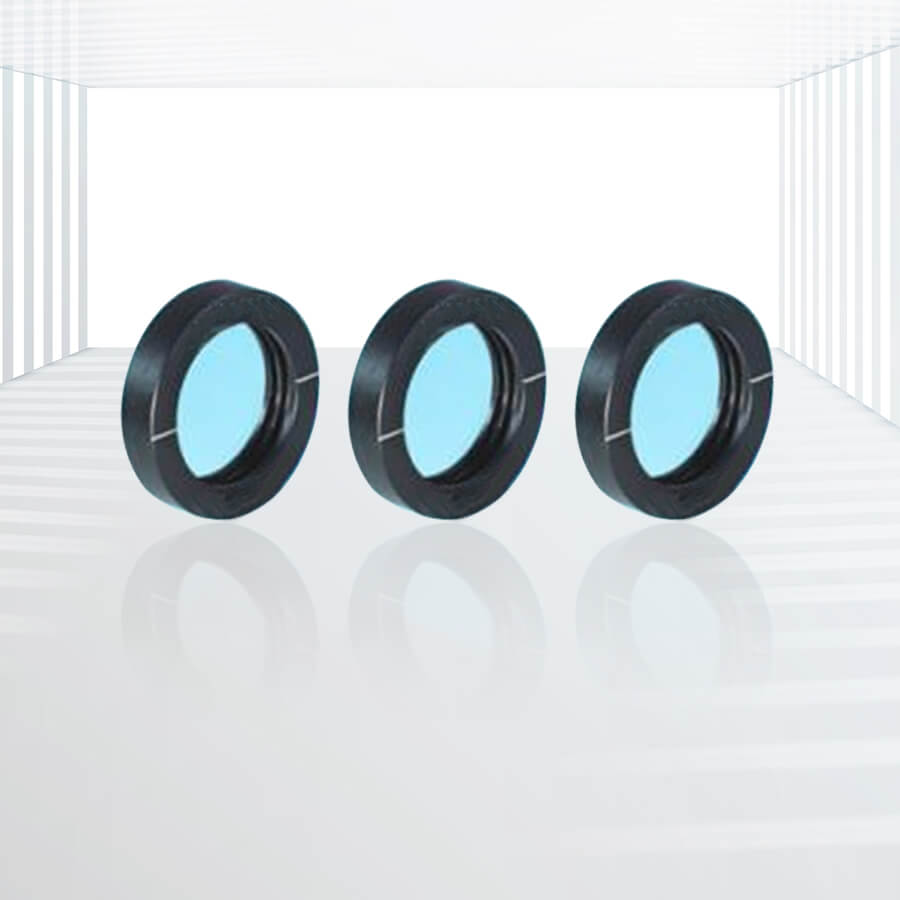

Configured with Black Anodized mountings for easy integration.
Applications: Optics and Photonics Research, Laser Systems, Optical Instrumentation, Telecommunications, etc.
Kingwin Optics offers a range of Low Order Waveplates designed to provide improved optical characteristics compared to common multiple-order waveplates. These waveplates generate the desired phase delay with a surplus of several full wavelength phase shifts, making them thinner, less dependent on wavelength, ambient temperature, and the angle of incidence.
Specifications:
| Material | Quartz or MgF2 |
| Wavelength Range | 266-7000nm |
| Dimension Tolerance | +/-0.1mm |
| Surface Quality | 20 / 10 S/D |
| Parallelism | <1 arc Sec |
| Retardation Tolerance | λ/60-λ/100(λ<400nm), λ/100-λ/200(400nm<λ<700nm), λ/200-λ/500(λ>700nm) |
| Clear Aperture | >90% |
| Damage Threshold | 500 MW/cm2 |
| Coating | AR coating |
| Mount | Black Anodized Aluminium |
Key Features:
1.Low Order Design:
- Offers improved optical characteristics over common multiple-order waveplates.
- Generates the desired phase delay with a surplus of several full wavelength phase shifts.
- Thinner and less dependent on wavelength, ambient temperature, and the angle of incidence.
2.Pricing:
- Low Order Waveplates are more affordable than zero-order waveplates.
- Suitable for large-scale and low-cost production requirements.
3.Versatile Options:
- Available in Low Order Half Waveplates for rotation of the polarization plane.
- Available in Low Order Quarter Waveplates for conversion between linear polarization and circular polarization.
4.Wide Spectral Range:
- Quartz Low Order Waveplates can be used for UV to NWIR spectral ranges.
- MgF2 Waveplates can be used for wavelengths up to the MWIR (maximum 7000nm) region.
5.High Damage Threshold:
- Robust single waveplate structure with a high damage threshold greater than 500MW/cm^2.
6.Enhanced Surface Coatings:
- Surfaces are coated with AR coatings for improved performance.
- Configured with Black Anodized mountings for easy integration.
Applications:
- Optics and Photonics Research: Used in experiments involving polarization-sensitive phenomena.
- Laser Systems: Employed in laser beam shaping, polarization modulation, and other laser manipulation techniques.
- Optical Instrumentation: Integrated into optical spectrometers, polarimeters, ellipsometers, and other precision instruments.
- Telecommunications: Utilized in optical fiber communication systems for polarization-division multiplexing and other advanced techniques.
Kingwin Optics’ Low Order Waveplates provide a cost-effective solution for applications requiring precise polarization control. With improved optical characteristics, competitive pricing, and versatile options, these waveplates are an ideal choice for researchers, engineers, and other professionals working in optics and photonics. The robust design, wide spectral range, and enhanced surface coatings make Kingwin Optics’ Low Order Waveplates a reliable and high-performing option for various applications.
