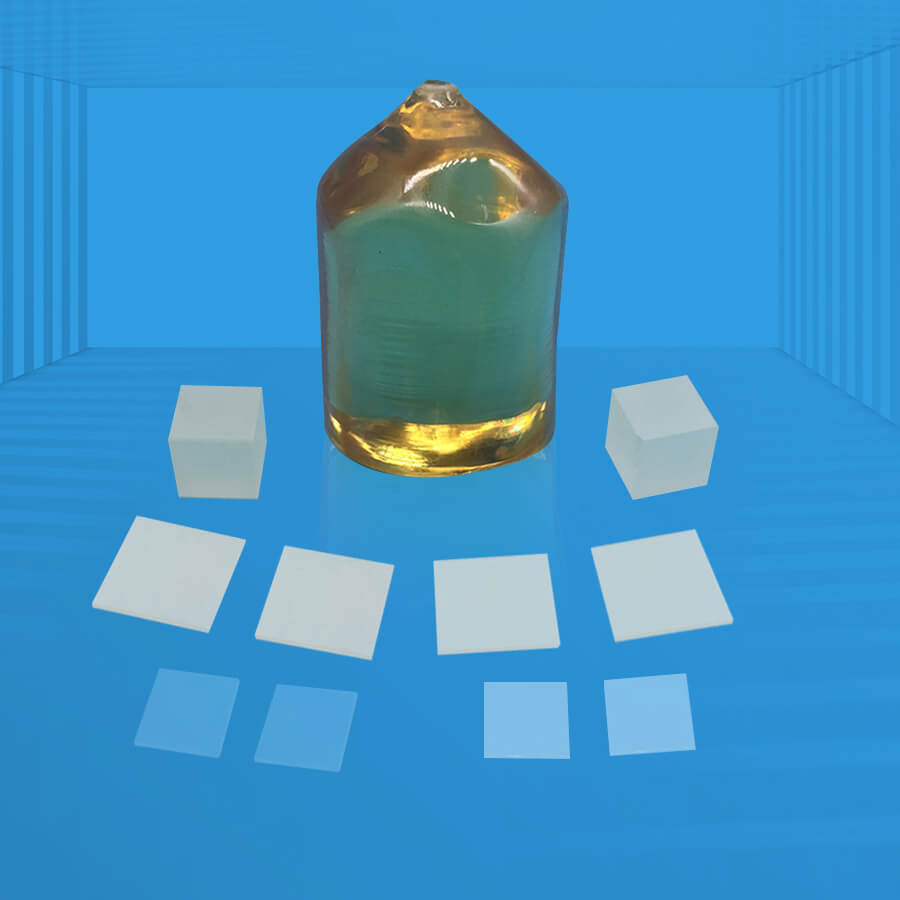

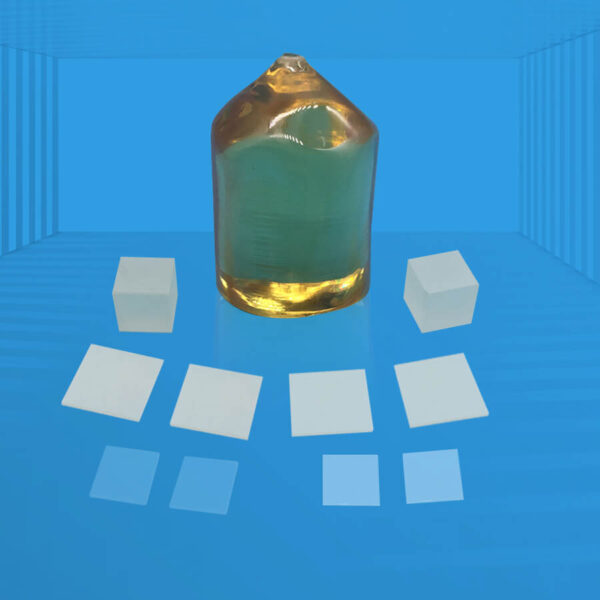

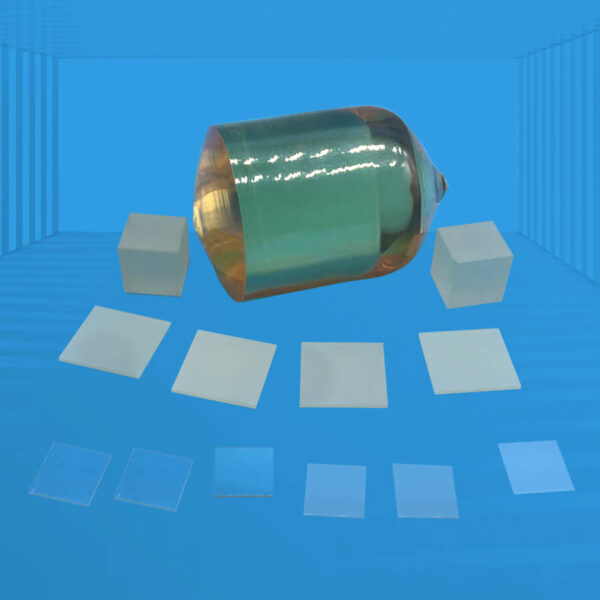

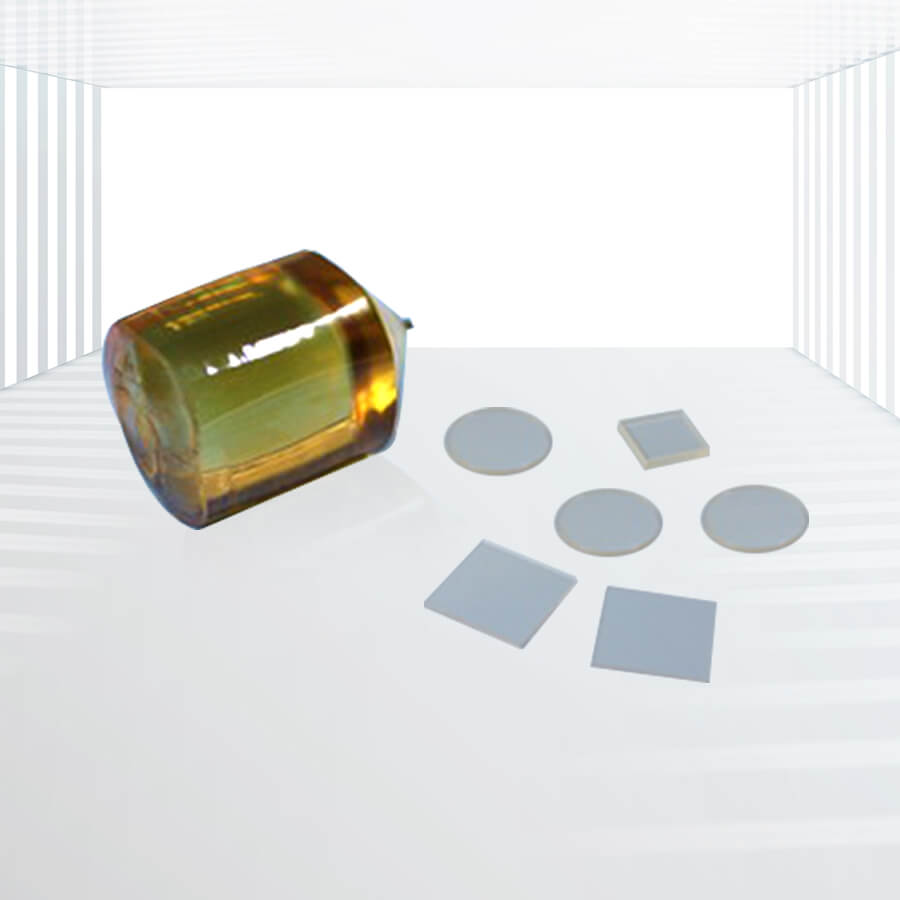

LSAT Substrates

Mixed Perovskite Structure: Ideal for various thin film growth applications due to its stable and robust crystal structure.

Transparency and Hardness: LSAT is a transparent oxide with significant hardness, making it durable and suitable for various research and industrial applications.

Applications: Epitaxial Growth of Ferroelectric Thin Films, High-Temperature Superconductors (HTS), Epitaxial Oxides and Heterostructures, Semiconductors, etc.

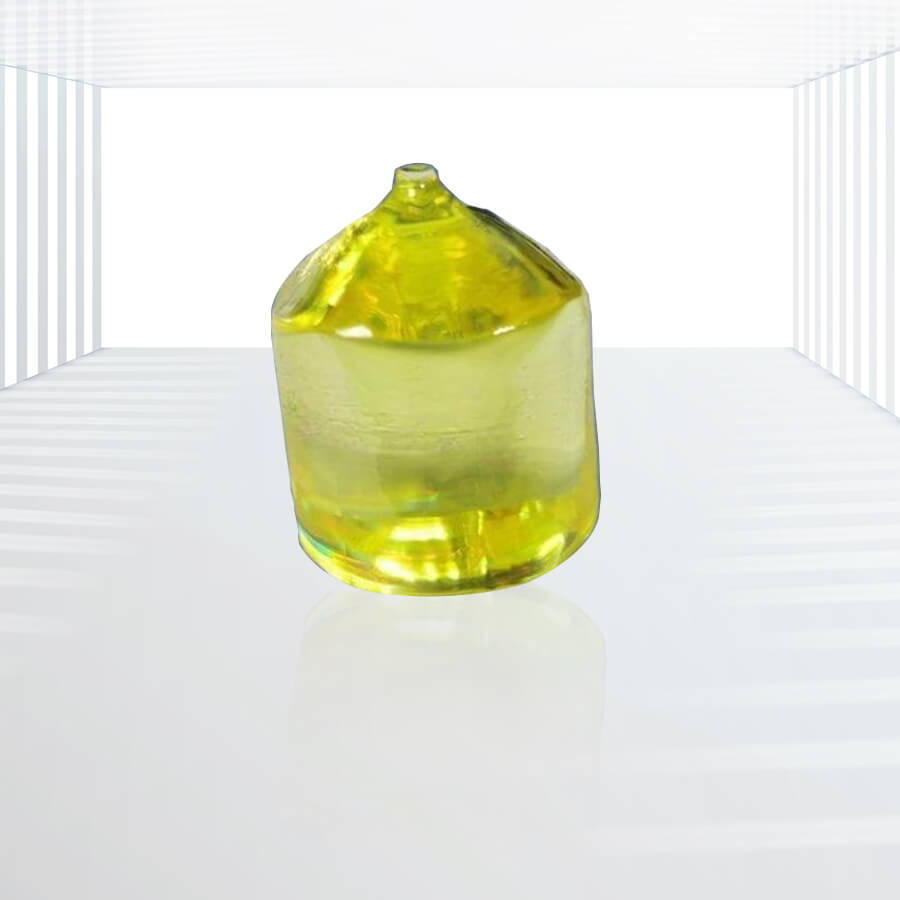

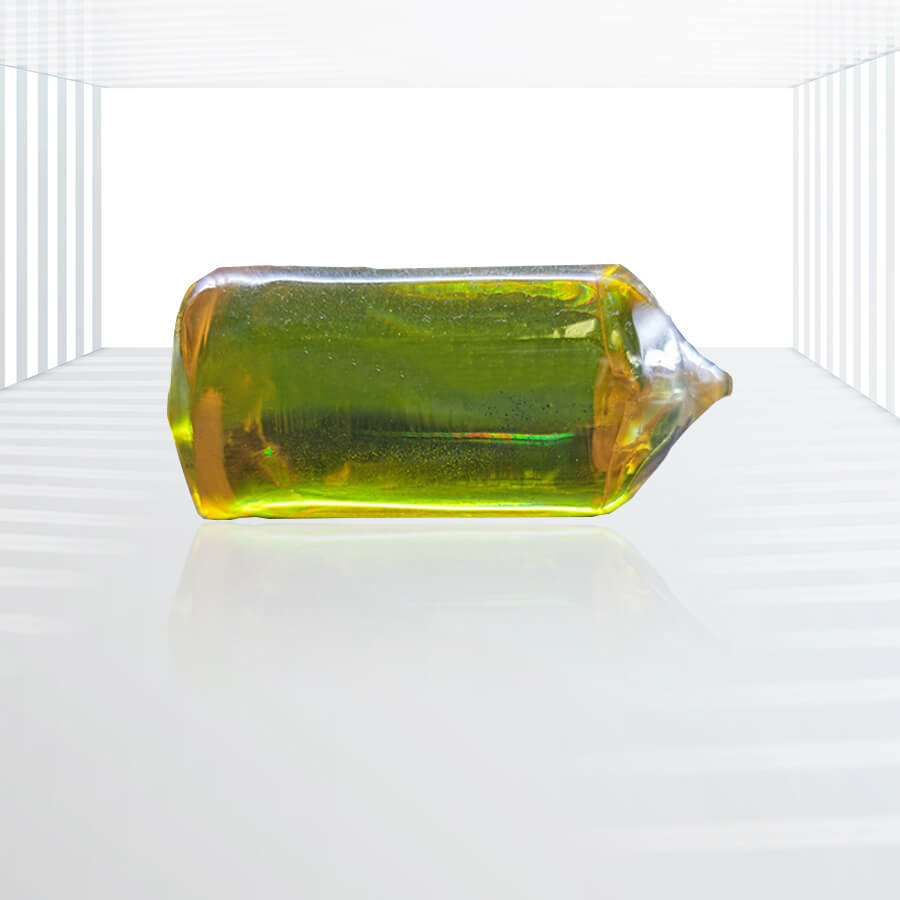

Lanthanum Strontium Aluminum Tantalum Oxide, commonly referred to as LSAT and chemically denoted as (La,Sr)(Al,Ta)O3, is a crystal with a mixed perovskite structure. This hard, transparent oxide is composed of lanthanum, aluminum, strontium, and tantalum.

Specifications:

Main performance parameters
Growth method Tirafa
Crystal structure cube
Lattice constant a=3.868 A
Melting point (°C) 1840
density 6.74(g/cm3
hardness 6.5(mohs)
Dielectric constant 22
Coefficient of thermal expansion 10 x 10-6
Color and appearance According to the annealing situation, it is colorless to light brown, without luanite crystals and visible domains
size 10×3,10×5,10×10,15×15,,20×15,20×20,
Ф15,Ф20,Ф1″,Ф2″
thickness 0.5mm,1.0mm
polished Single-sided or double-sided
Crystal orientation <100>、<110>、<111>±0.5&ordm;
Ra: ≤5&Aring; (5&micro; m×5&micro; m)
wrap Class 100 clean bag, Class 1000 clean room



Key Features:

  • Mixed Perovskite Structure: Ideal for various thin film growth applications due to its stable and robust crystal structure.
  • Transparency and Hardness: LSAT is a transparent oxide with significant hardness, making it durable and suitable for various research and industrial applications.

Applications:

1.Epitaxial Growth of Ferroelectric Thin Films:

  • Excellent substrate for the growth of ferroelectric materials due to its compatibility and structural properties.

2.High-Temperature Superconductors (HTS):

  • Popular substrate for the growth of high Tc superconductors like cuprate superconductors (YBCO) and iron-based superconductors (iron-pnictides).

3.Epitaxial Oxides and Heterostructures:

  • Widely used in research focused on electron correlation phenomena.
  • Suitable for materials like strontium titanate (SrTiO3), rare-earth manganites, and rare-earth nickelates.

4.Semiconductors:

  • Gallium nitride (GaN) and other semiconductor materials can also be grown on LSAT substrates.

Kingwin Optics provides both standard and customized LSAT wafers, ensuring high quality and performance for your advanced applications. Our expertise in crystal growth and substrate preparation guarantees that our LSAT wafers will meet your specific needs for ferroelectric, HTS thin films, and various other epitaxial growth applications.
