LWIR Athermalized Lenses for Thermal Imaging Camera
Focus Range: 4.3mm to 100mm
Temperature Range: -40℃ to +60℃
Compact and Lightweight: Designed without additional lenses for thermal compensation.
Robust Construction: Durable and suitable for harsh environmental conditions.
High Optical Performance: Maintains stable focus and image quality over varying temperatures.
Applications: Surveillance and Security, Industrial Inspection, Search and Rescue, Military and Defense, etc.
Infrared optical materials exhibit substantial changes in their refractive indices with temperature variations, resulting in unstable focal lengths in IR thermal imaging cameras. This instability is undesirable, especially in critical applications. To counteract this issue, athermalization techniques are employed to eliminate defocus across extended temperature ranges.
Athermalization Techniques:
1.Passive Optical Athermalization:
- Utilizes different lens materials with complementary Coefficients of Thermal Expansion (CTEs) to counteract thermal focus shift.
- Advantage: Simplified structure without spatial displacement of lenses, making it compact and lightweight.
2.Passive Mechanical Athermalization:
- Involves mechanical components that adjust the lens position as temperature changes.
3.Active Electromechanical Athermalization:
- Uses sensors and actuators to actively adjust the lens position in response to temperature variations.

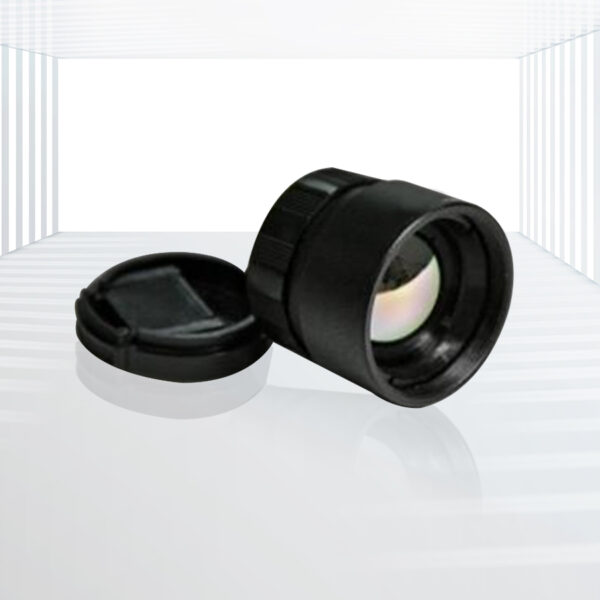

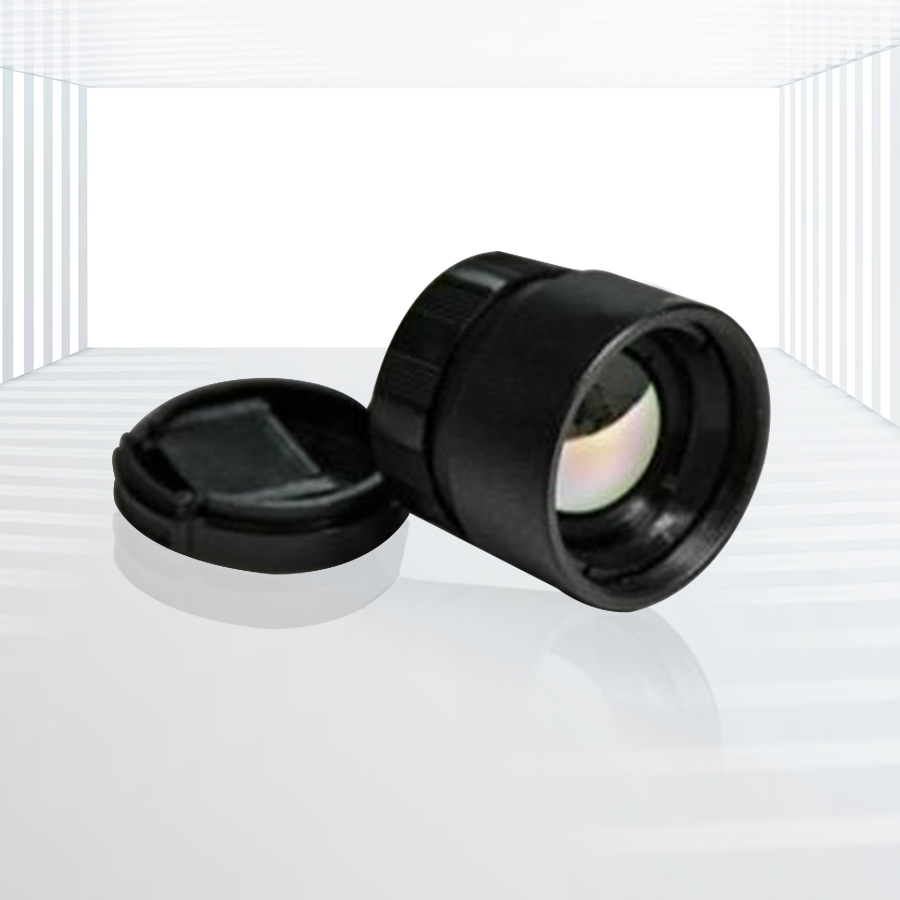

Kingwin Optics LWIR Athermalized Lenses:
Kingwin Optics offers a range of off-the-shelf and custom LWIR thermal camera lenses designed with passive optical athermalization. These lenses maintain focus over a wide temperature range without the need for additional mechanical components, making them ideal for weight-sensitive and compact applications.
Key Features:
- Focus Range: 4.3mm to 100mm
- Temperature Range: -40℃ to +60℃
- Compact and Lightweight: Designed without additional lenses for thermal compensation.
- Robust Construction: Durable and suitable for harsh environmental conditions.
- High Optical Performance: Maintains stable focus and image quality over varying temperatures.
Product Range:

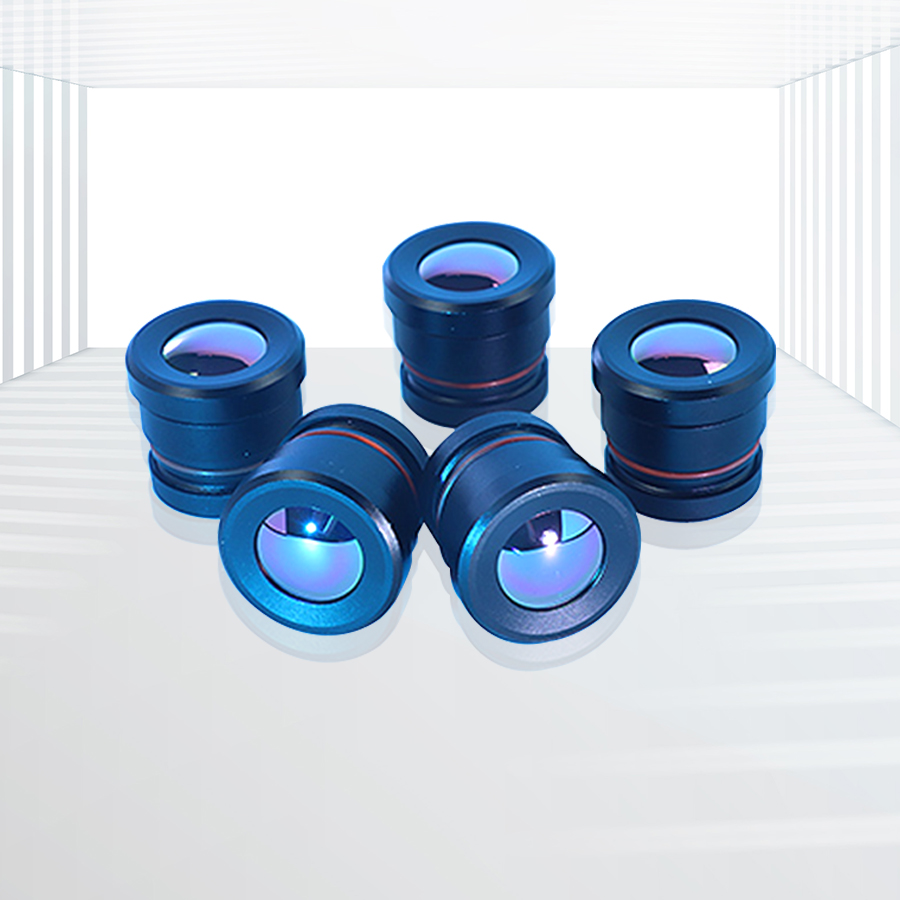

(1)4.3mm f/1.2 Athermalized LWIR Lens:
- Field of View (FOV): Wide-angle
- Applications: Short-range surveillance, security, industrial inspection

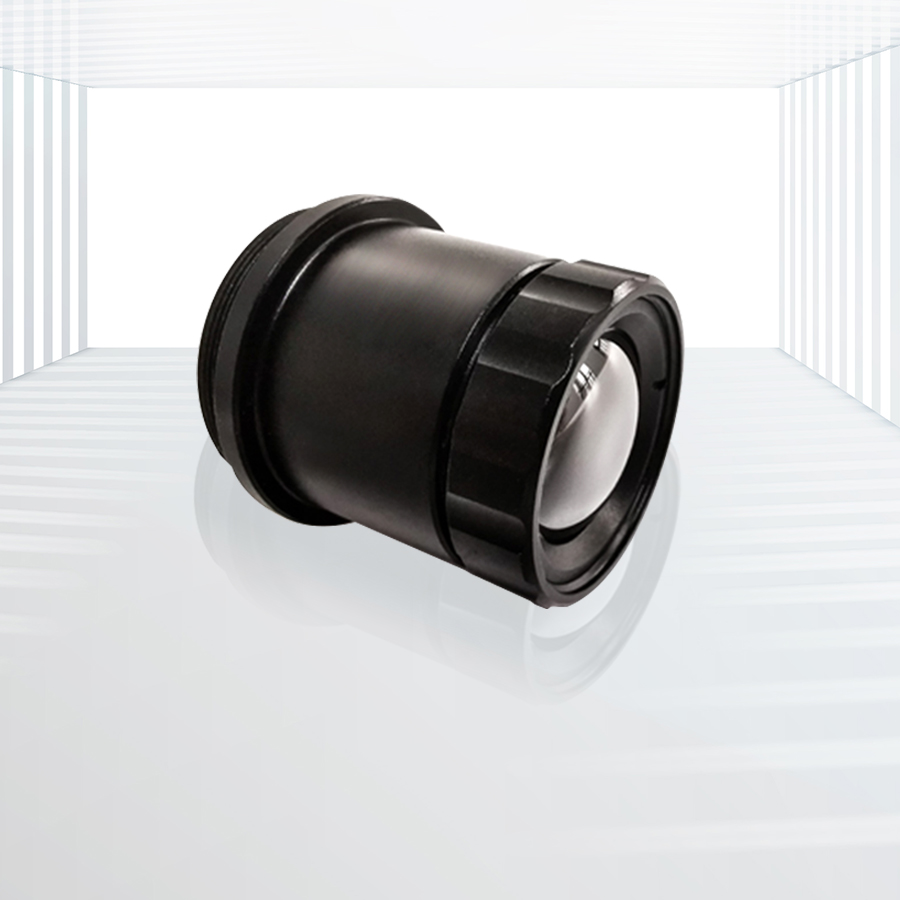

(2)25mm f/1.0 Athermalized LWIR Lens:
- Field of View (FOV): Medium
- Applications: General-purpose thermal imaging, perimeter security
(3)50mm f/1.2 Athermalized LWIR Lens:
- Field of View (FOV): Narrow
- Applications: Border security, long-range surveillance
(4)100mm f/1.4 Athermalized LWIR Lens:
- Field of View (FOV): Very narrow
- Applications: Long-range surveillance, search and rescue, military applications
Applications:
- Surveillance and Security: Monitoring critical infrastructure, border control, and perimeter security.
- Industrial Inspection: Thermal imaging for predictive maintenance and safety inspections.
- Search and Rescue: Enhanced visibility in low-visibility conditions for locating missing persons.
- Military and Defense: Situational awareness, target acquisition, and reconnaissance.
Customization:
Kingwin Optics provides customization options to meet specific application requirements. Our team of experts can design and manufacture LWIR athermalized lenses tailored to your unique needs, ensuring optimal performance and reliability.
For more information or to discuss your specific requirements, please contact Kingwin Optics. We are committed to providing high-quality optical solutions for your thermal imaging applications.
