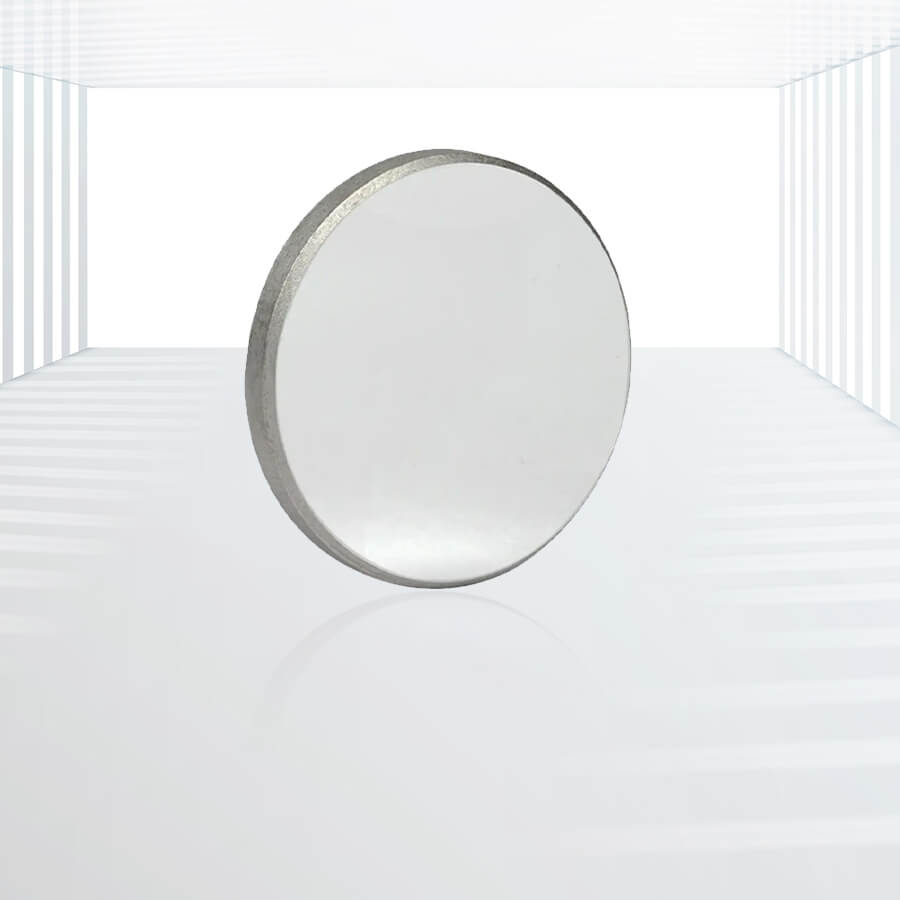

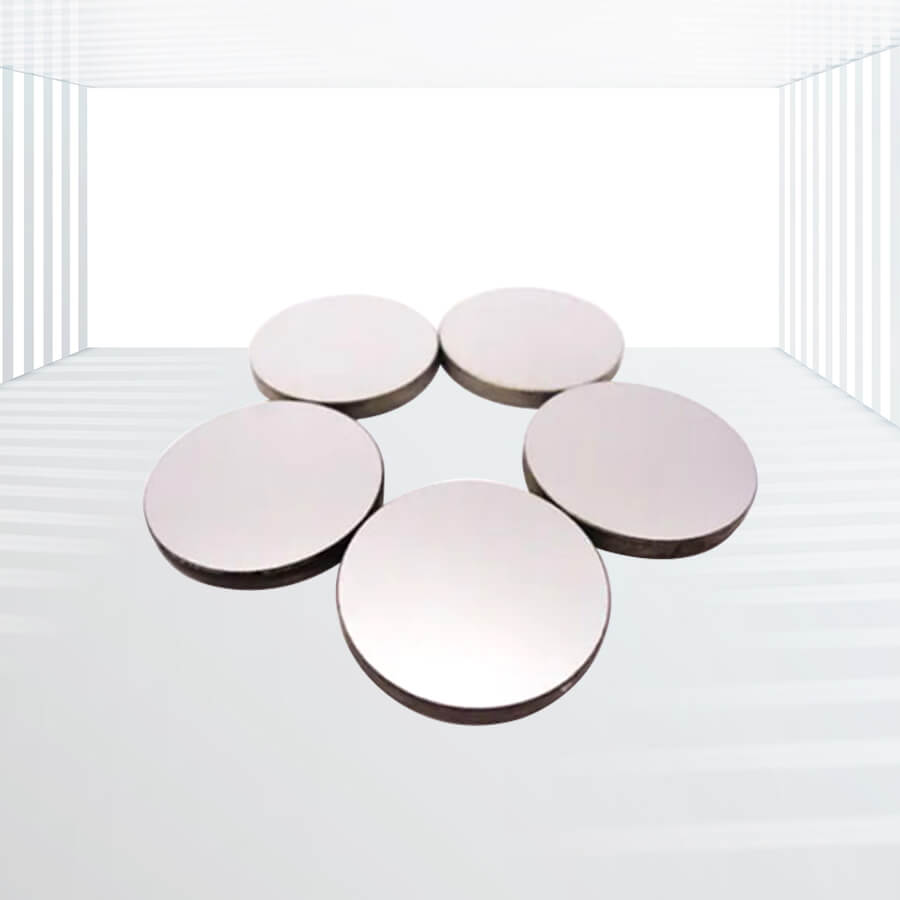

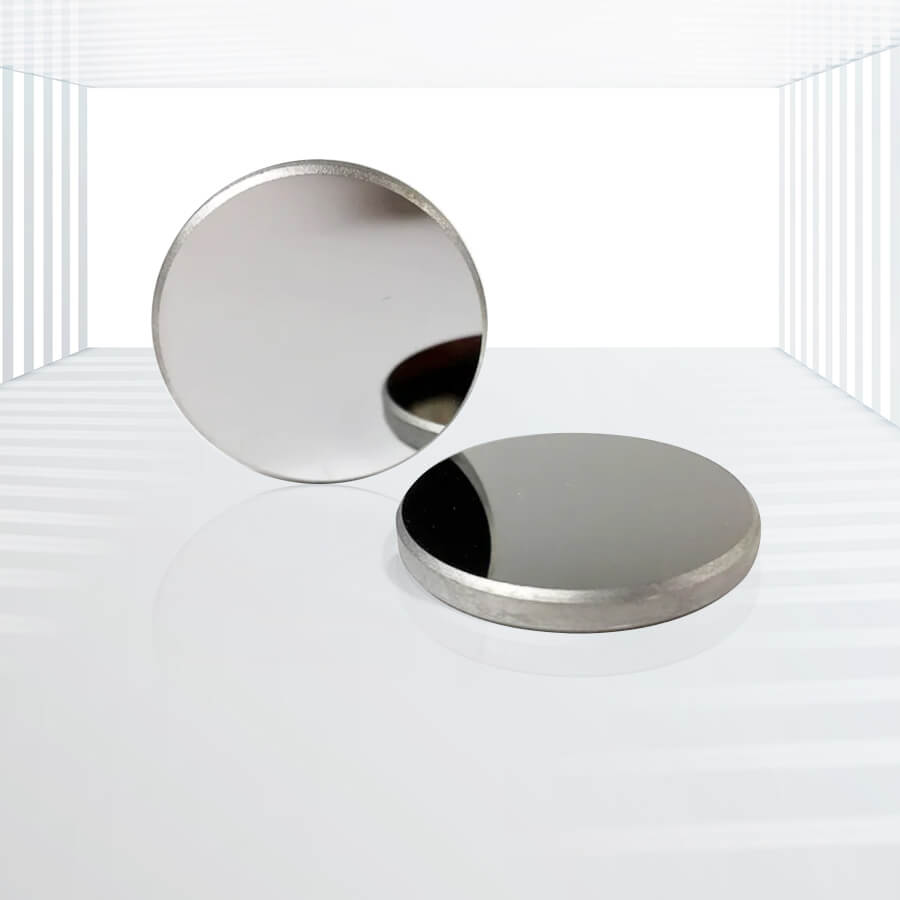

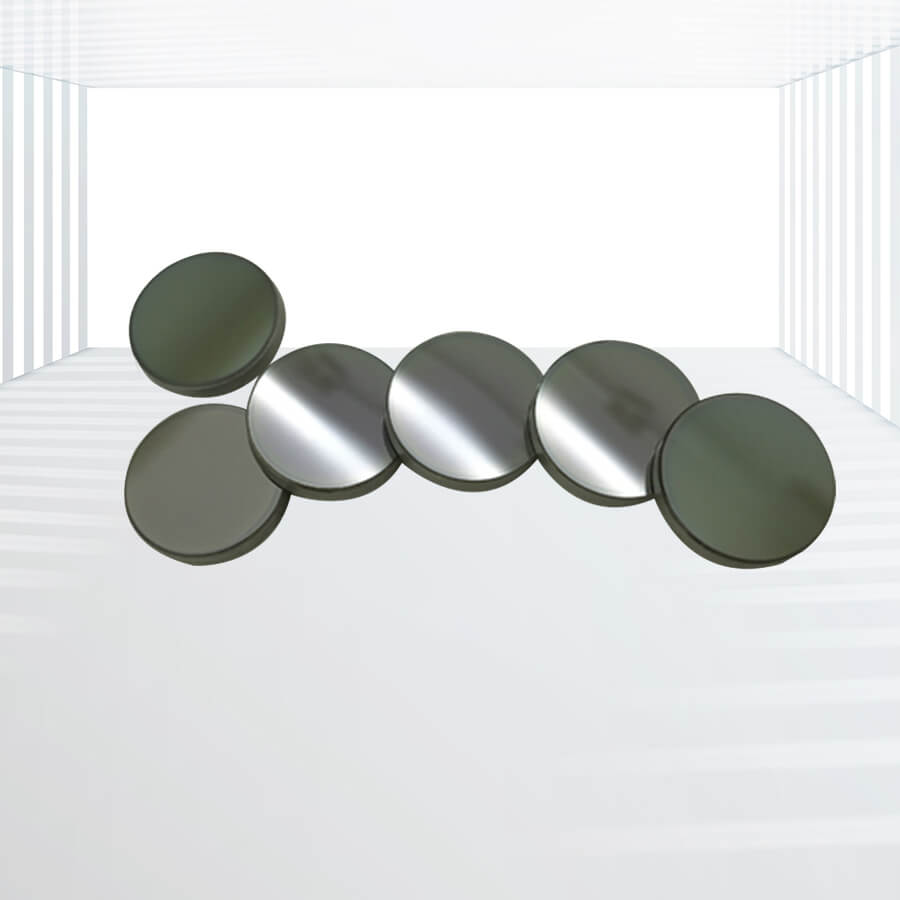

Molybdenum (Mo) Mirrors for CO2 Lasers
Thermal Stability and Durability:
Lowest thermal expansion among commercial metals.
Withstands extreme temperatures without deformation or softening.
High Reflectance:
Naturally high reflectance (>98%) in the infrared (IR) spectrum.
Optimal for CO2 laser wavelengths (e.g., 10.6μm).
No Coating Required:
Due to high intrinsic reflectance, no additional coating is needed.
Simplifies manufacturing and maintenance processes.
Robust Construction:
High mechanical strength and chemical inertia.
Resistant to weld spatter, fumes, smoke, and debris in industrial environments.
Optical Performance:
Low absorption and scattering losses.
Maintains high IR reflectance (>98%@10.6μm) for efficient laser operation.
Ease of Maintenance:
Exceptionally scratch-resistant.
Can be cleaned with brushes and organic solvents without degradation.
Applications: CO2 Laser Systems, Industrial Laser Processing, Scientific and Research Applications, Medical Applications, etc.
Molybdenum mirrors are renowned for their exceptional durability and thermal stability, making them ideal for CO2 laser applications where high-power and high-temperature environments are prevalent.
Specifications:
| Reflectivity | R≥98% at 10.6μm |
| Diameter Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | +/-0.1mm |
| Surface Quality | 60/40 S/D |
| Wedge | <3 arc minutes |
| Surface Figure | λ/20@10.6mm over f50mm |
| Clear Aperture | 90% of diameter |
| Laser Damage Threshold | 60KW for f10mm (6000W/mm) |
Key Features：
1.Thermal Stability and Durability:
- Lowest thermal expansion among commercial metals.
- Withstands extreme temperatures without deformation or softening.
2.High Reflectance:
- Naturally high reflectance (>98%) in the infrared (IR) spectrum.
- Optimal for CO2 laser wavelengths (e.g., 10.6μm).
3.No Coating Required:
- Due to high intrinsic reflectance, no additional coating is needed.
- Simplifies manufacturing and maintenance processes.
4.Robust Construction:
- High mechanical strength and chemical inertia.
- Resistant to weld spatter, fumes, smoke, and debris in industrial environments.
5.Optical Performance:
- Low absorption and scattering losses.
- Maintains high IR reflectance (>98%@10.6μm) for efficient laser operation.
6.Ease of Maintenance:
- Exceptionally scratch-resistant.
- Can be cleaned with brushes and organic solvents without degradation.
Applications:
1.CO2 Laser Systems:
- Used as rear and output coupler mirrors in laser resonant cavities.
- Facilitates the formation and amplification of CO2 laser beams.
2.Industrial Laser Processing:
- Suitable for cutting, welding, marking, and engraving applications.
- Operates reliably in high-power and high-temperature conditions.
3.Scientific and Research Applications:
- Enables precise beam manipulation and control in experimental setups.
- Supports high-performance requirements in laboratories.
4.Medical Applications:
- Used in medical laser systems for surgical and therapeutic procedures.
- Ensures stable and efficient laser output over extended periods.
Kingwin Optics offers a range of standard and custom Molybdenum mirrors optimized for CO2 lasers. Our mirrors are crafted using advanced fabrication techniques to ensure exceptional durability, thermal stability, and optical performance. Whether for industrial manufacturing, scientific research, or medical applications, Molybdenum mirrors provide robust solutions for demanding laser systems.
