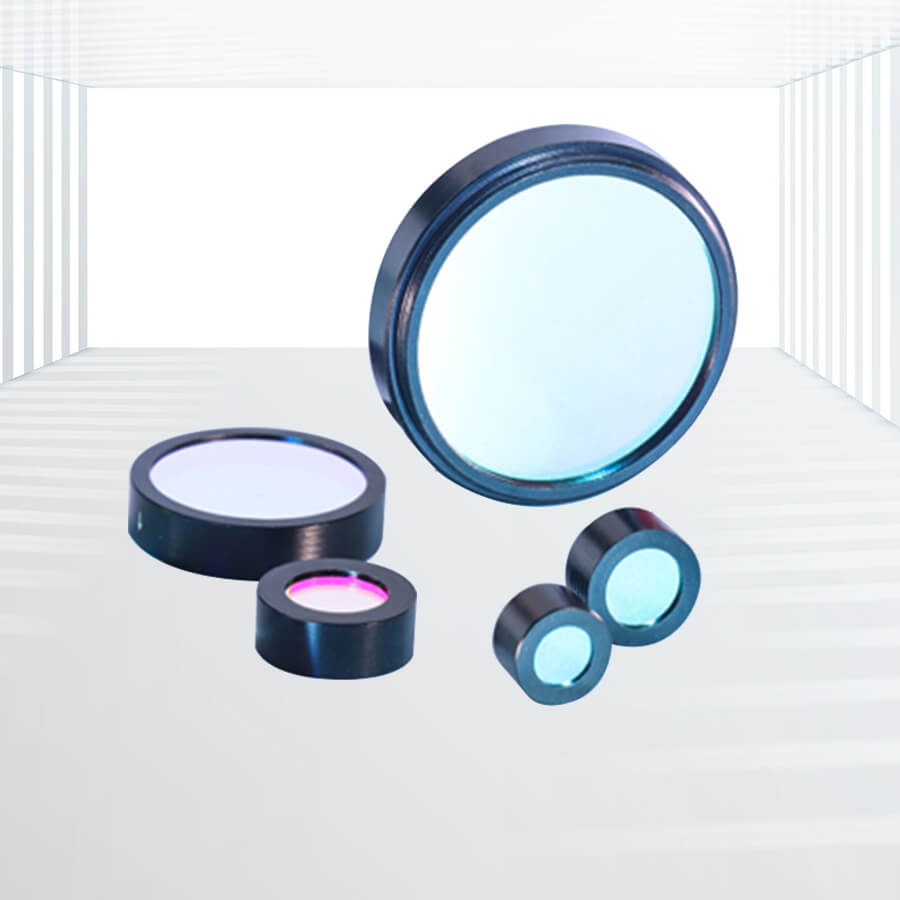

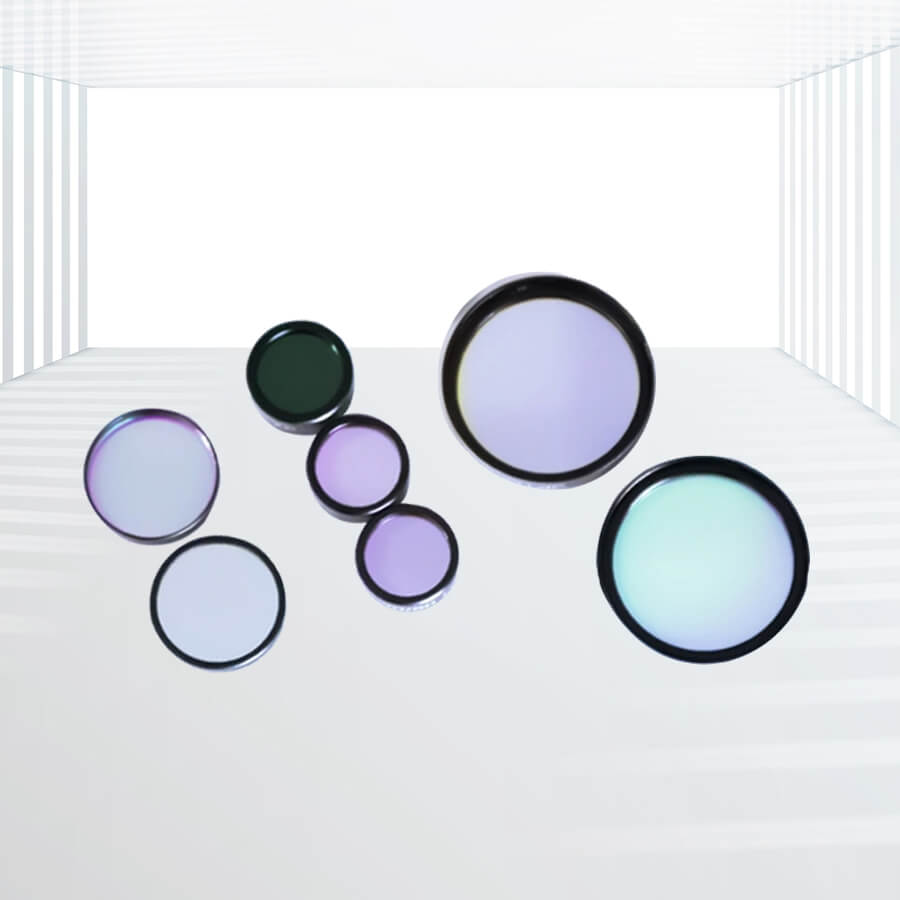

Narrowband Filters for Biochemistry Analyzers

Material and Construction: Hard coatings are deposited on substrates made of colored glass bonded with BK7, equivalent to high-quality glass sourced from Hoya.

Optical Density: Standard Optical Density (OD) is ≥OD4, which ensures effective blocking of unwanted wavelengths.

Bandwidth: 10nm +/- 1nm Bandwidth enables sharp isolation of specific wavelengths, crucial for precise biochemical measurements.

Customization: Besides the stock versions, parameters such as center wavelength, bandwidth, and optical density can be tailored to match the spectral characteristics of target analytes.

Applications: Biochemistry Assays, Precision and Durability, Enhanced Analysis Capabilities, etc.

A biochemical analyzer is a sophisticated instrument used to measure metabolites in biological samples such as blood or urine, providing crucial data for clinical diagnosis. These analyzers determine various biochemical indicators, including transaminases, hemoglobin, cholesterol, creatine kinase, and glucose. Their working principle is based on the Lambert-Beer Law, which states that the absorbance of light passing through a medium is directly proportional to the concentration of the absorbing species and the path length of the light through the medium.

Specifications:

Full Width-Half Max (FWHM) 10.0+/-1nm
Minimum Transmission >50%
Optical Density (OD) ≧4.0
Block Wavelength Range 200 ~1200nm
Surface Quality 80/50 S/D
Substrate Materials Colored Glass + BK7



Key Features:

  • Material and Construction: Hard coatings are deposited on substrates made of colored glass bonded with BK7, equivalent to high-quality glass sourced from Hoya.
  • Optical Density: Standard Optical Density (OD) is ≥OD4, which ensures effective blocking of unwanted wavelengths.
  • Bandwidth: 10nm +/- 1nm Bandwidth enables sharp isolation of specific wavelengths, crucial for precise biochemical measurements.
  • Customization: Besides the stock versions, parameters such as center wavelength, bandwidth, and optical density can be tailored to match the spectral characteristics of target analytes.

Applications:

1.Biochemistry Assays:

  • Precise biochemical assays in labs and research facilities.
  • Used in biochemistry analyzers to enhance the accuracy and reliability of clinical diagnostics.

2.Precision and Durability:

  • Trusted for precision and long-term durability, Kingwin Optics’ filters are essential for reliable biochemical measurements.

3.Enhanced Analysis Capabilities:

  • Maximizing signal detection while minimizing background interference, these filters elevate the capabilities of biochemistry assays.

Kingwin Optics’ narrow bandpass filters are indispensable for enhancing the performance of biochemical analyzers. Their high transmission efficiency, precise wavelength isolation, and customizable options make them ideal for accurate and reliable biochemistry assays, helping laboratories and research facilities achieve superior analytical results.
