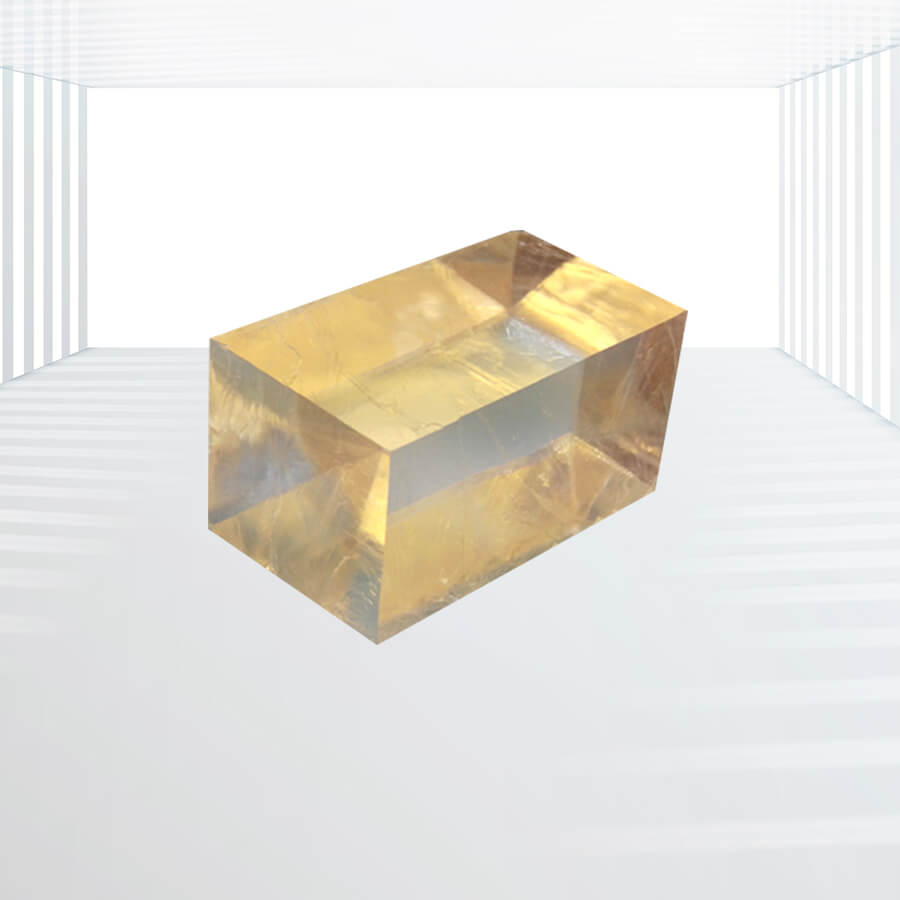

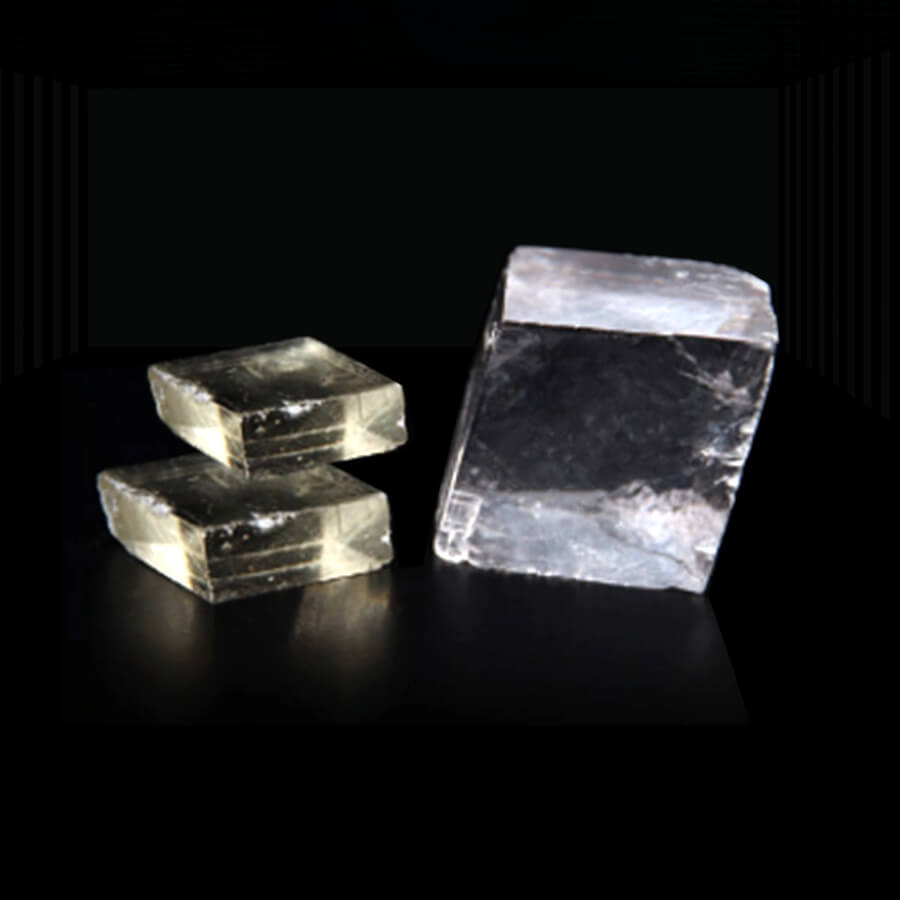

Optical Calcite Crystals
Birefringence: High birefringence, which allows for the separation of light into two orthogonal polarization states.
Transmission Range: Wide spectral range from 200 nm to 2500 nm.
Applications: Polarizing Prisms, Beam-Divergent Elements, Laser Gates, Group Velocity Delay Compensators, etc.
Optical calcite crystals are natural minerals characterized by their negative uniaxial crystal structure and significant birefringence across a broad transmission range from 200 nm to 2500 nm. Despite their relative softness and susceptibility to scratches, calcite crystals are highly valued for their optical properties and are used in a range of optical devices.
Specifications:
| Material | Calcite Crystals |
| Wavelength | 350-2300nm |
| Size (mm) | 0.2-60mm |
| Flatness | λ/8 |
| Surface Quality | 20/10 S/D |
| Clear Aperture | > 95% of full aperture |
| Parallelism | <10 arc sec |
| Coating | Upon customer’s request |
| Optical Axis Orientation | < 6 arc min |
Key Features:
- Birefringence: High birefringence, which allows for the separation of light into two orthogonal polarization states.
- Transmission Range: Wide spectral range from 200 nm to 2500 nm.
Applications:
- Polarizing Prisms: Utilized for polarizing light, including:Glan Thompson Prisms, Glan Taylor Prisms, Glan Laser Prisms.
- Beam-Divergent Elements: To control and manipulate light beams.
- Laser Gates: Employed in laser systems for various applications.
- Group Velocity Delay Compensators: For femtosecond lasers to manage pulse duration and timing.
Kingwin Optics provides high-quality optical calcite crystals and custom optical components suitable for advanced optical and laser applications. For more details or to inquire about our products, please visit our website.
