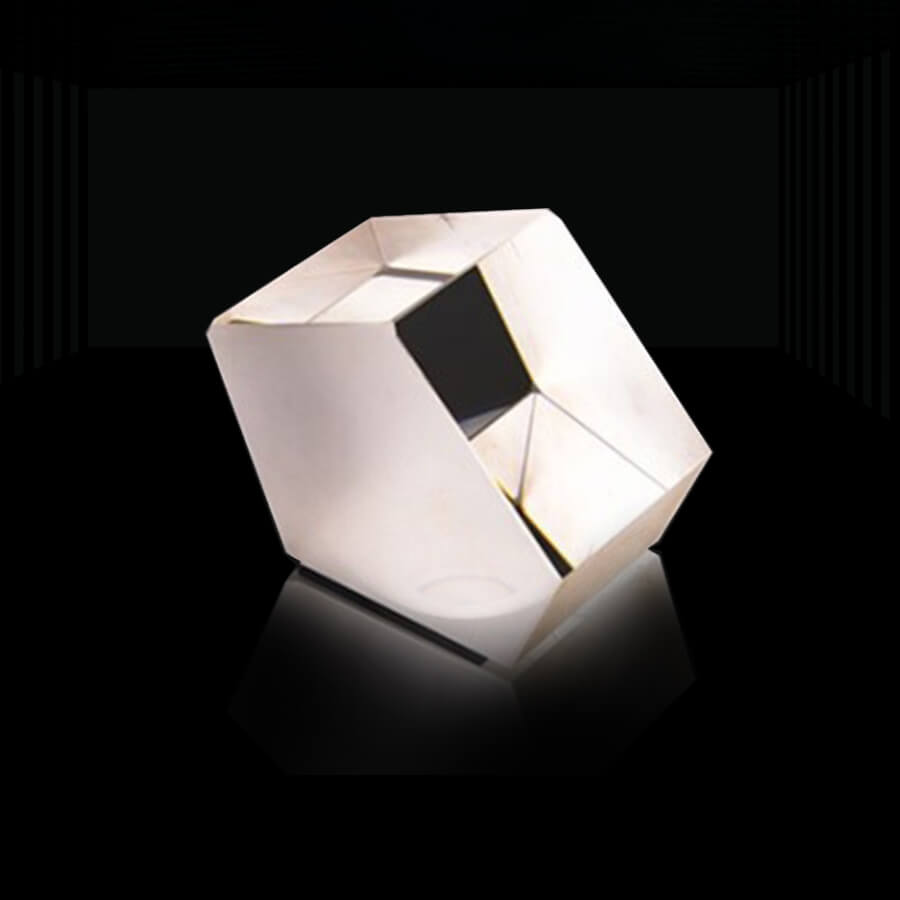

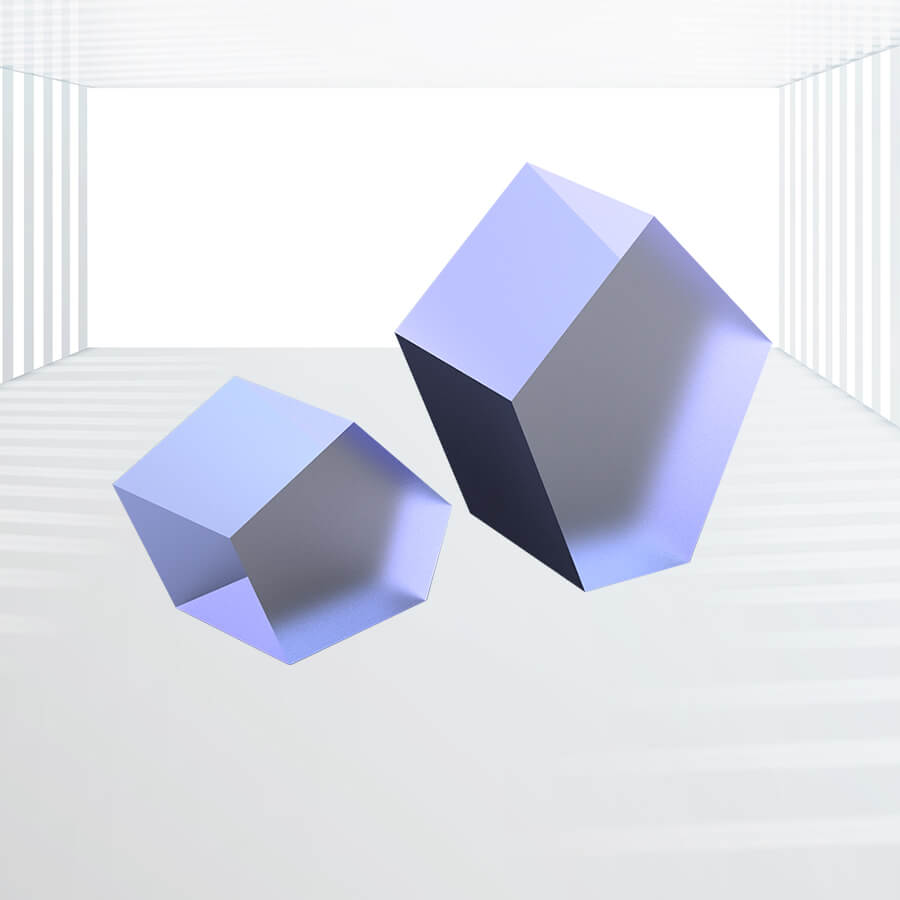

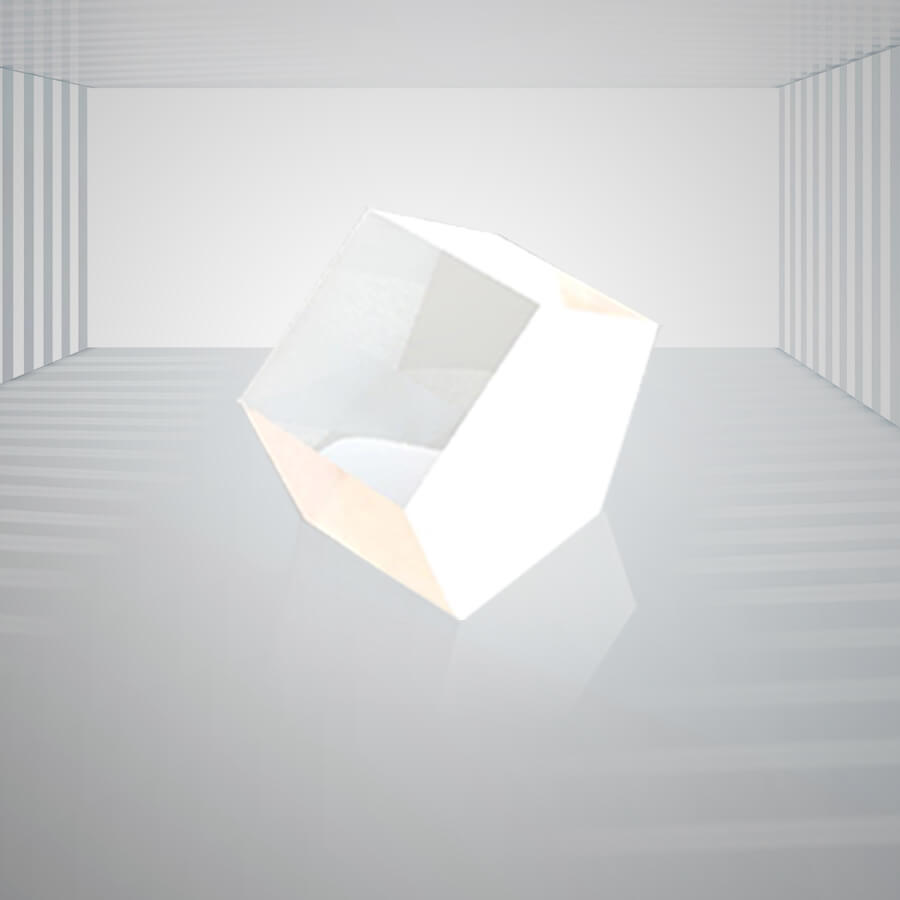

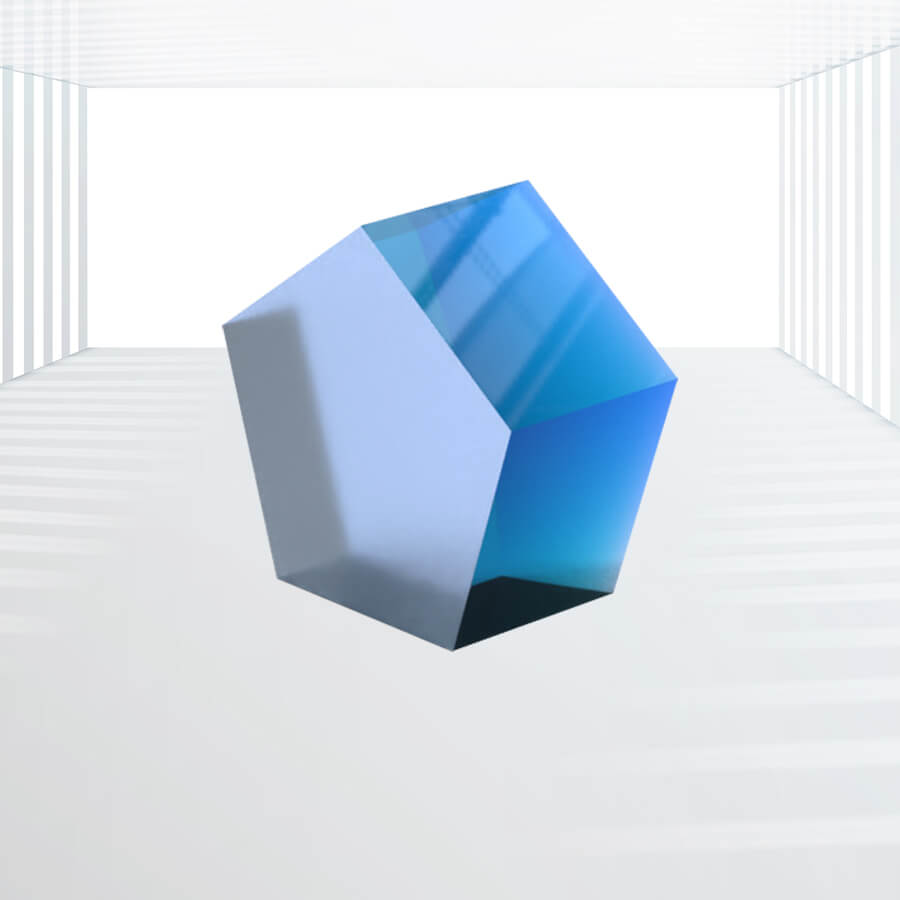

Penta Prisms
High Reflectivity: Equipped with advanced reflective coatings, penta prisms minimize light scattering and maximize optical transmission.
Accurate Beam Steering: Their precise geometry allows for the accurate redirection of light beams, essential in demanding optical applications.
Compact Design: Offering a space-saving solution, penta prisms facilitate the efficient integration into various optical systems.
Durability: Constructed from robust materials, these prisms withstand harsh conditions while maintaining consistent optical quality.
Applications: Optical Instrumentation, Laser Technology, Photography & Cinematography, Machine Vision & Automation, Medical Imaging, etc.
Penta Prisms, a type of optical component featuring a pentagonal shape with five planar surfaces, play a crucial role in manipulating the direction of light beams. Engineered for high reflectivity and precision, these prisms ensure minimal light loss and enable efficient optical performance.
Specifications:
| Material | N-BK7, UV Fused Silica |
| Surface Quality | 60/40 S/D |
| Dimension Tolerance | ±0.2mm |
| Flatness | <λ/4@632.8nm |
| Clear Aperture | >90% |
| Chamfer | Protective<0.5mmx45° |
| Angle Tolerance | <30arc seconds |
| Range of Size | / |
| Coating | Protected Aluminum reflective coating
Single Layer MgF2, AR coating or custom |
Features:
- High Reflectivity: Equipped with advanced reflective coatings, penta prisms minimize light scattering and maximize optical transmission.
- Accurate Beam Steering: Their precise geometry allows for the accurate redirection of light beams, essential in demanding optical applications.
- Compact Design: Offering a space-saving solution, penta prisms facilitate the efficient integration into various optical systems.
- Durability: Constructed from robust materials, these prisms withstand harsh conditions while maintaining consistent optical quality.
Applications:
- Optical Instrumentation: Widely employed in telescopes, microscopes, and other optical tools for precise beam manipulation.
- Laser Technology: Integral to laser systems, penta prisms direct laser beams with pinpoint accuracy.
- Photography & Cinematography: Found in advanced camera setups, enhancing imaging capabilities through innovative light redirection.
- Machine Vision & Automation: Utilized in machine vision systems to optimize lighting and image capture, driving precision and reliability in automation processes.
- Medical Imaging: Aid in medical devices like endoscopes, contributing to accurate diagnosis and effective treatment through precise light and image redirection.
Kingwin Optics specializes in providing custom penta prisms tailored to meet specific application requirements. Our penta prisms offer a wide operating wavelength range, spanning from the UV to the IR spectrum.
