Pixel Level Mosaic Filters

High Integration: Organizes multiple micrometer-scale spectral channels into a mosaic pattern, providing intensive integration of spectral and photometric functions.

Simultaneous Multispectral Processing: Divides the field of view into miniature areas, each assigned different spectral channels, allowing for efficient and simultaneous processing of multispectral data.

Precise Optical Control: The rich and delicate division of spectral channel areas enables precise control over the optical characteristics of images.

Miniaturization and Lightweight Design: Suitable for use in imaging spectrometers, facilitating a compact and lightweight design.

Applications: Camouflage Identification, Precision Agriculture, Geological Survey, Medical Monitoring, etc.

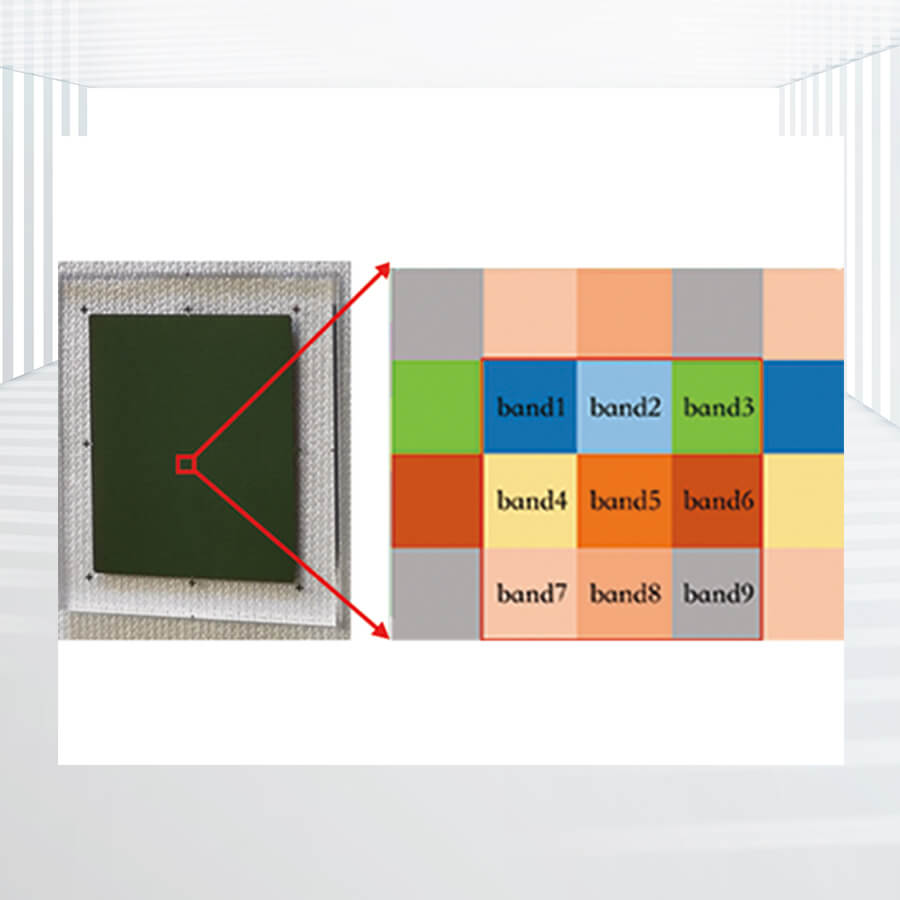

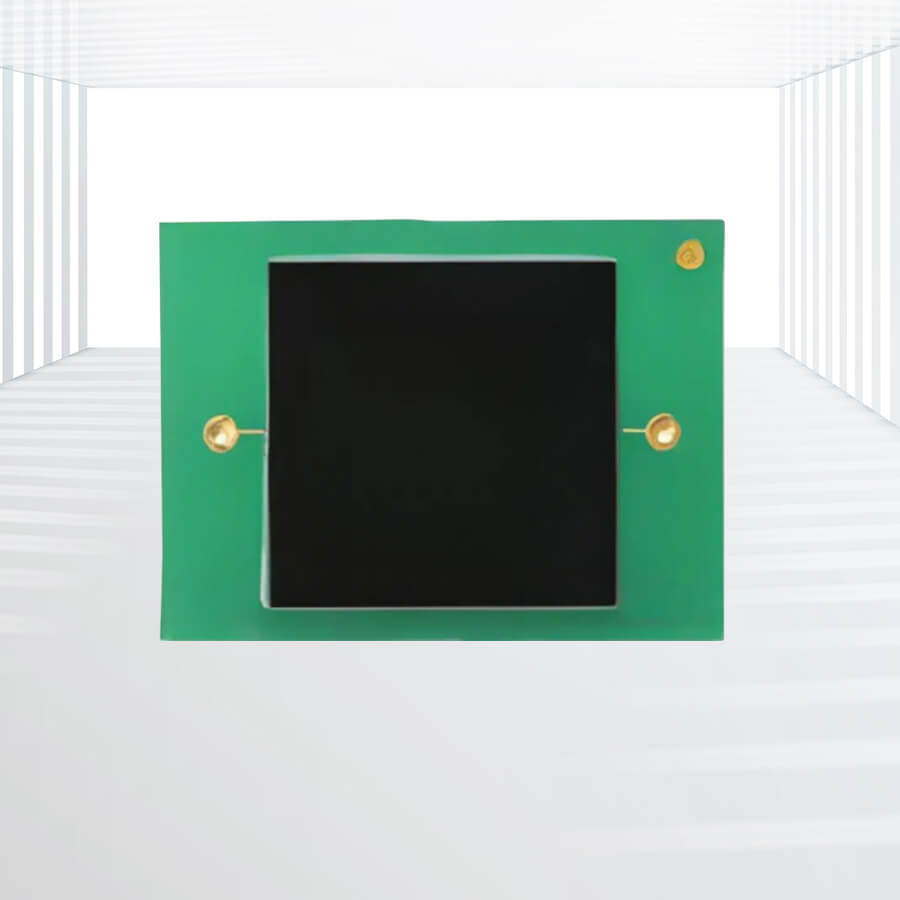

Pixel Level Mosaic Filters, or Mosaic Filters, are advanced multispectral filters that intricately integrate spectral and photometric functions. These filters are designed by arranging multiple micrometer-scale spectral channels into spectral periods that mimic the RGB color filter pattern, creating a mosaic across the filter surface. This design allows the entire field of view of a sensor or imaging system to be divided into numerous miniature areas, each assigned different spectral channels, enabling simultaneous and efficient processing of information from multiple spectral ranges.

Specifications:

Wavelength Range 450-1650nm
Peak Transmission Rate ≥60%
FWHM <10-40
Number of Spectral Channels 9 or 16
Single Channel Size(µm) 10/11/15/20
Size 9.60×7.68 11.264×11.264 12.80×10.24 22.528×22.528 or customized



Key Features:

  • High Integration: Organizes multiple micrometer-scale spectral channels into a mosaic pattern, providing intensive integration of spectral and photometric functions.
  • Simultaneous Multispectral Processing: Divides the field of view into miniature areas, each assigned different spectral channels, allowing for efficient and simultaneous processing of multispectral data.
  • Precise Optical Control: The rich and delicate division of spectral channel areas enables precise control over the optical characteristics of images.
  • Miniaturization and Lightweight Design: Suitable for use in imaging spectrometers, facilitating a compact and lightweight design.

Applications:

  • Camouflage Identification: Enhances the detection and analysis of camouflage materials.
  • Precision Agriculture: Improves monitoring and analysis of agricultural fields for better crop management.
  • Geological Survey: Aids in detailed geological analysis and mapping.
  • Medical Monitoring: Enhances precision in medical diagnostics and monitoring.

Kingwin Optics’ pixel level mosaic filters offer unparalleled integration and performance for high-precision applications, from camouflage identification and precision agriculture to geological surveys and medical monitoring. With both standard and custom options available, these filters provide the flexibility and reliability needed for advanced multispectral imaging systems, pushing the boundaries of spectral imaging capabilities.
