Pixel Level Stepped Filters
Stepped Pattern Design: Ensures integer multiple sizing of spectral channels to match detector pixel size, providing full coverage and efficient spectral information capture.
Enhanced Resolution and Quality: Reduces spectral imaging loss due to aberrations, ensuring consistent spectral response under uniform conditions.
Compact and High-Precision: Provides high-spectral resolution in a compact design, ideal for demanding imaging and industrial environments.
Applications: Hyperspectral Imaging, Remote Sensing, Biomedical Imaging, Industrial Inspection, etc.

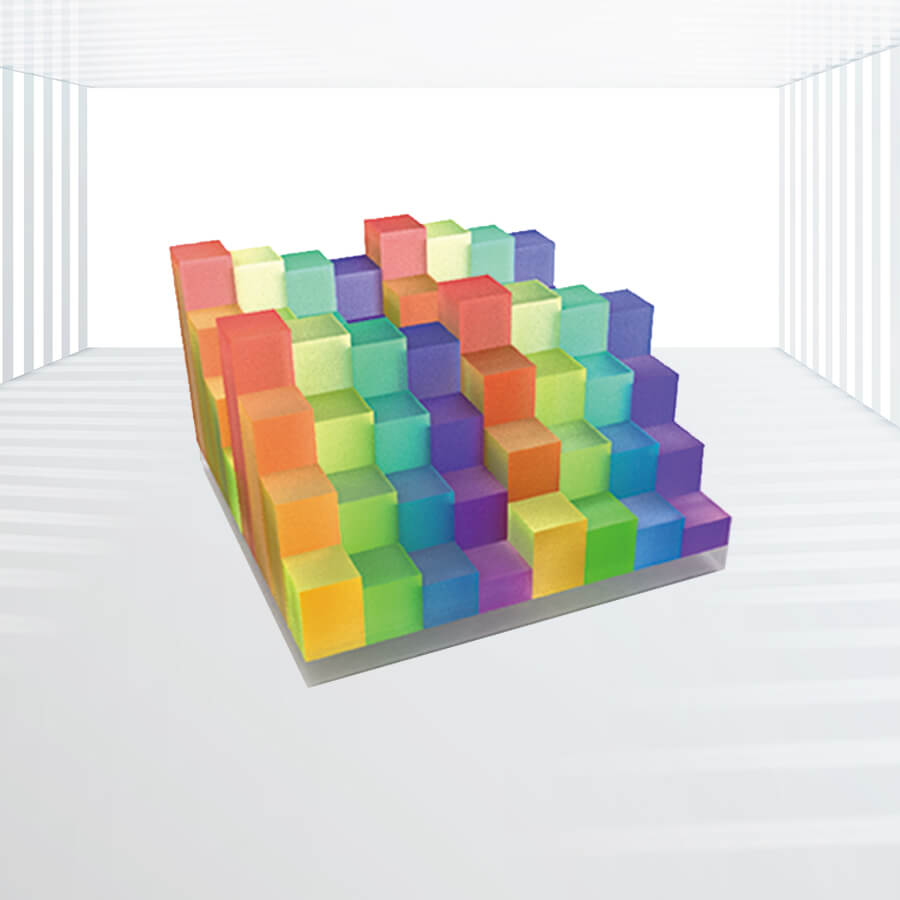

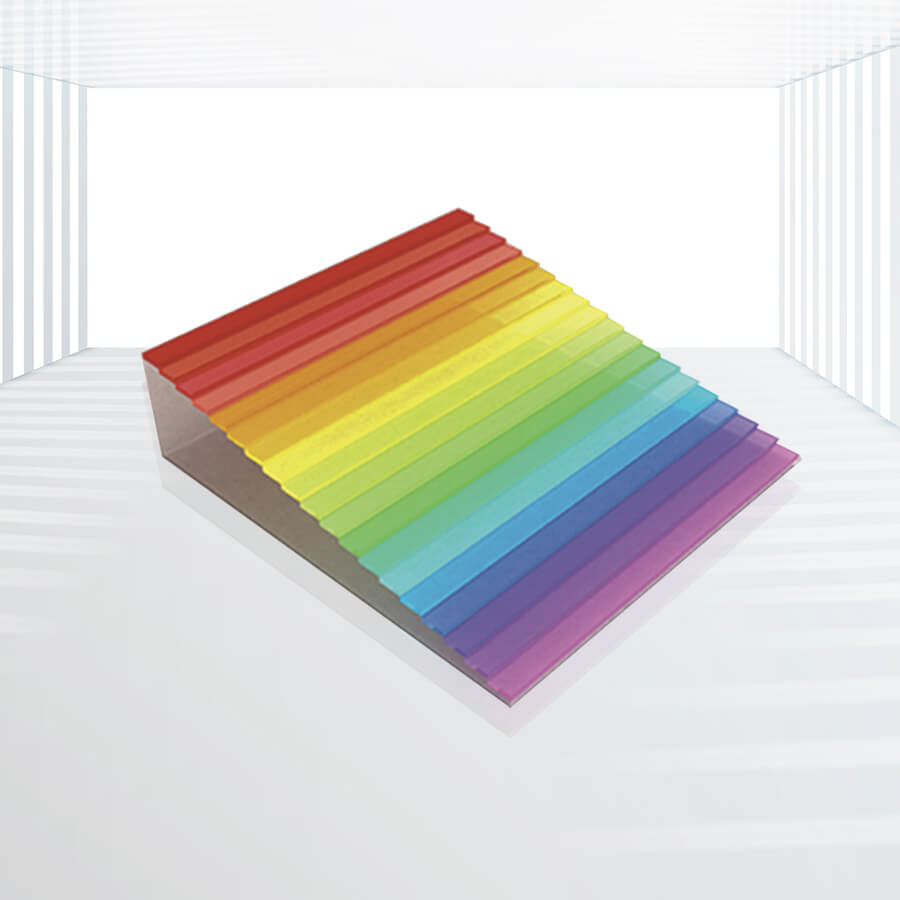

Pixel Level Stepped Filters, also known as Pixel Level Stepped Hyperspectral Filters, are specialized optical filters engineered to divide the field of view of an imaging system into distinct spectral bands using a stepped pattern. This design ensures that each spectral channel in the column direction is an integer multiple of the detector pixel size, while in the row direction, it matches the size of the detector imaging surface. This configuration provides full coverage of the detector imaging surface, enabling efficient filtering and capturing of all spectral information in the image.
Specifications:
| Wavelength Range (nm) | 1150-1650nm |
| Peak Transmission Rate | ＞75% |
| Number of Spectral Channels | 32 or 64 |
| FWHM (nm) | ＜40 or ＜15 |
| Single Channel Size (μm) | 320 or 240 or 15 |
| Filter Size (mm) | 9.60×7.68 or 12.8×10.24 |
Key Features:
- Stepped Pattern Design: Ensures integer multiple sizing of spectral channels to match detector pixel size, providing full coverage and efficient spectral information capture.
- Enhanced Resolution and Quality: Reduces spectral imaging loss due to aberrations, ensuring consistent spectral response under uniform conditions.
- Compact and High-Precision: Provides high-spectral resolution in a compact design, ideal for demanding imaging and industrial environments.
Applications:
- Hyperspectral Imaging: Enhances the resolution and quality of hyperspectral images for detailed analysis.
- Remote Sensing: Improves data accuracy in environmental monitoring and geographical mapping.
- Biomedical Imaging: Facilitates precise imaging for medical diagnostics and research.
- Industrial Inspection: Ensures high-quality imaging for quality control and inspection processes.
Kingwin Optics’ pixel level stepped filters offer unparalleled integration and performance for advanced spectral imaging applications. With both standard and custom options available, these filters provide the flexibility and reliability needed for high-precision imaging systems, pushing the boundaries of spectral imaging capabilities. Their compact design, high-precision filtering prowess, and high-spectral resolution make them ideal for demanding laboratory and industrial environments.
