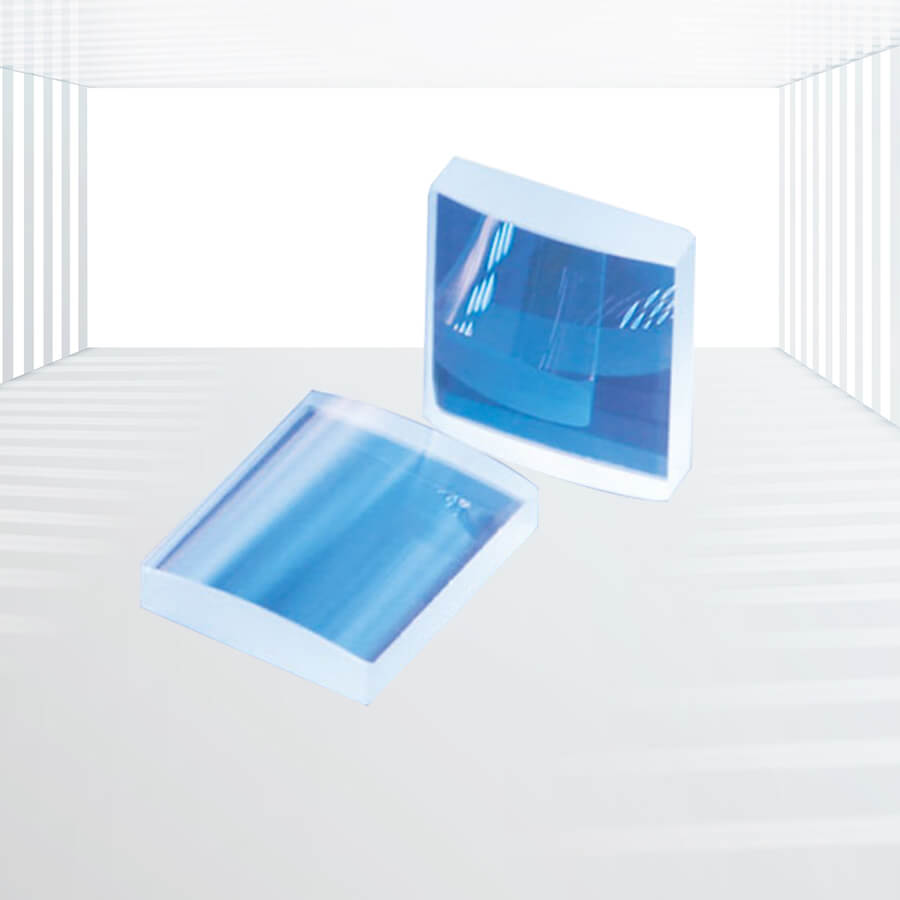

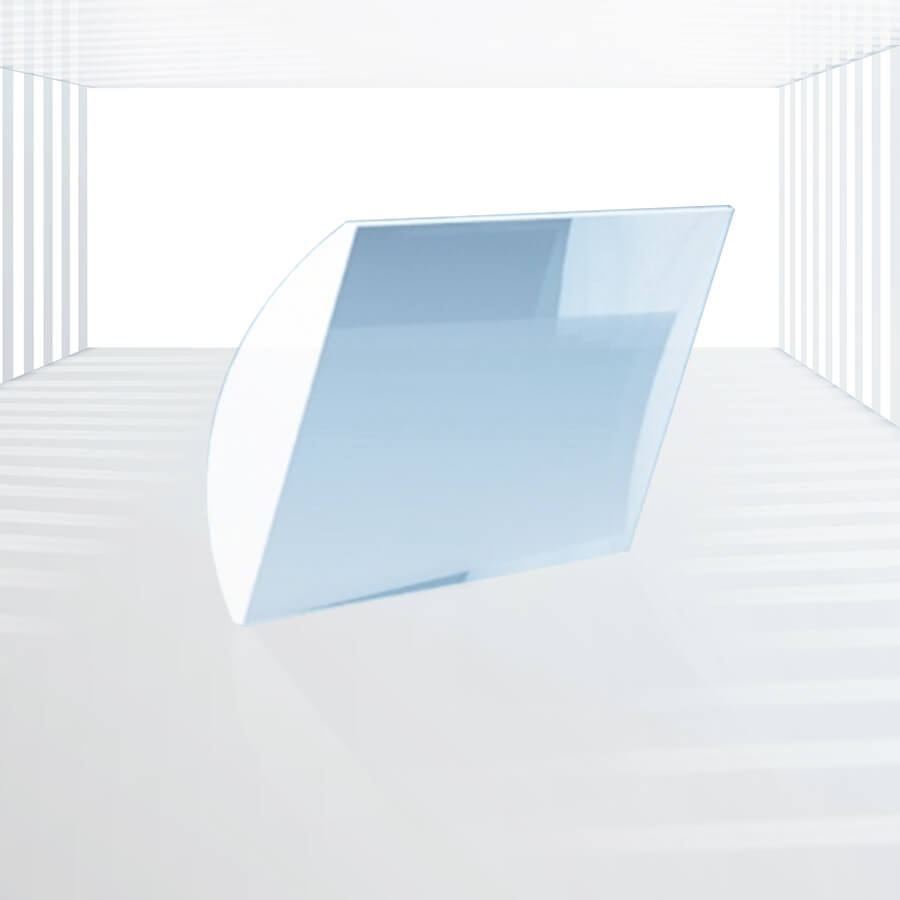

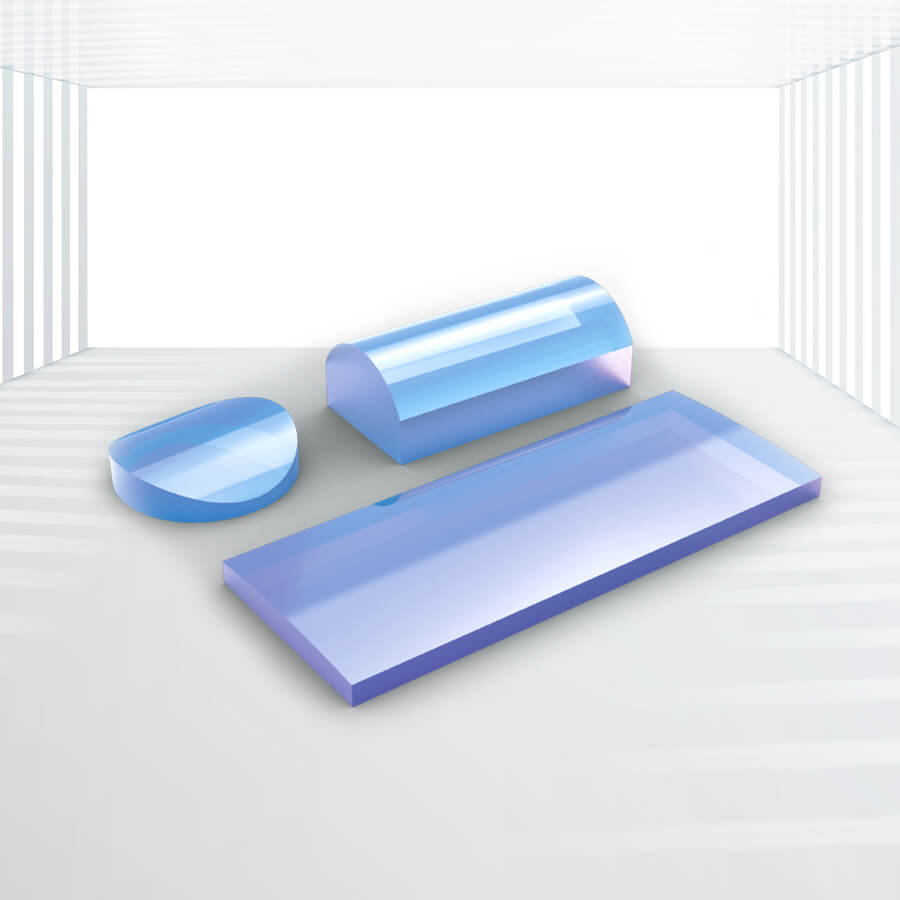

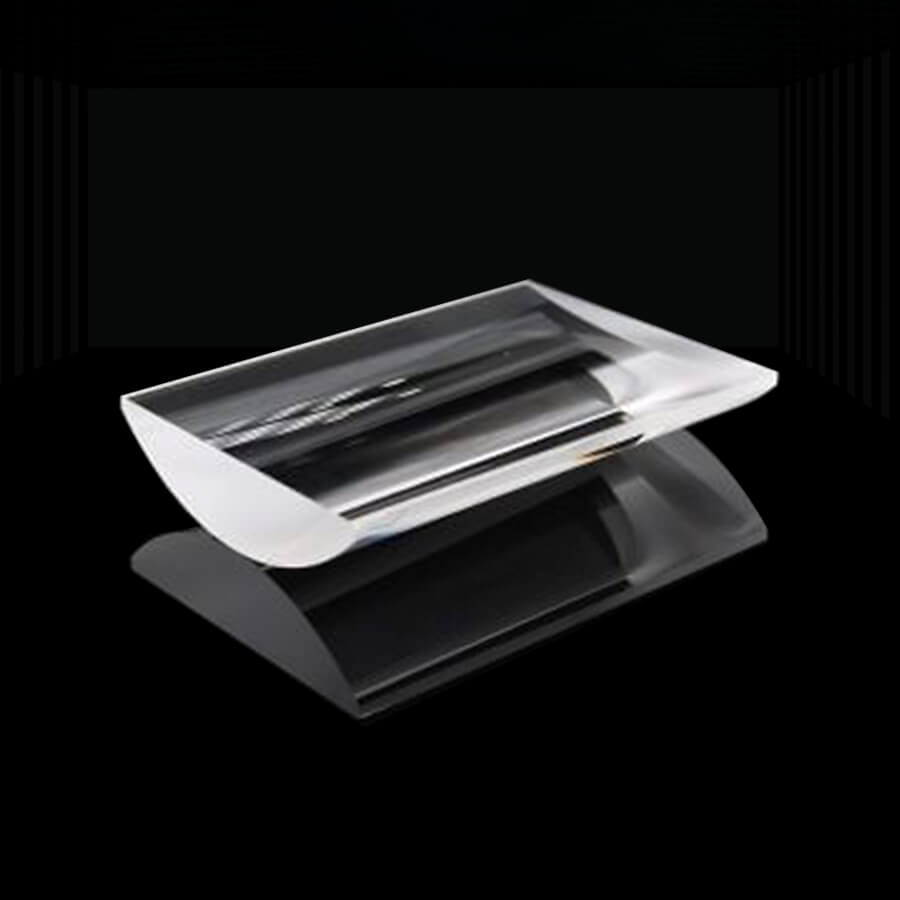

Plano-Convex Cylindrical Lens
High Optical Quality: Superior materials like N-BK7 ensure high optical homogeneity and transmission.
Versatility: Suitable for a wide range of applications, including laser focusing and beam shaping.
Customization: Extensive options for coatings, materials, and dimensions to meet specific requirements.
Precision: Tight tolerances and stringent inspection processes guarantee high performance and reliability.
Reputation: Kingwin Optics is recognized globally for its engineering expertise and commitment to quality.
Applications: Beam Condensing, Laser Diode Coupling, Aspect Ratio Modulation, Laser Scanners and Dye Lasers, Energy Receivers, Spectroscopy, Anamorphic Beam Shaping, etc.
A Plano-Convex Cylindrical Lens is essentially a transparent cylinder with one flat surface and one curved surface, resulting in a positive focal length. Its primary function is to condense a matrix of laser beams into a single line when focusing inside a detector. This characteristic also helps modulate the aspect ratio of images. Like its plate plano-convex counterpart, a plano-convex cylindrical lens performs best at infinite absolute conjugate ratios and becomes less effective when the ratios are below 5:1. The key difference is that a plate PCX lens diverges light in two dimensions, while a cylindrical PCX lens expands the light beam in one dimension.
Specifications:
| Type | Plano-Convex Cylindrical Lenses |
| Material | N-BK7 |
| Clear Aperture | >90% |
| Size Tolerance | +0/-0.1mm |
| Thickness Tolerance | ±0.2mm |
| Surface Irregularity | λ/2 @ 633 nm |
| Surface Quality | 60/40 S/D |
| Paraxial Focal Length | ±2% @587.6nm |
| Chamfer | 0.2mm x 45 degree |
| Centering Error | <3 arcmin |
Advantages:
- High Optical Quality: Superior materials like N-BK7 ensure high optical homogeneity and transmission.
- Versatility: Suitable for a wide range of applications, including laser focusing and beam shaping.
- Customization: Extensive options for coatings, materials, and dimensions to meet specific requirements.
- Precision: Tight tolerances and stringent inspection processes guarantee high performance and reliability.
- Reputation: Kingwin Optics is recognized globally for its engineering expertise and commitment to quality.
Applications:
- Beam Condensing: Converts a two-dimensional light beam into a linear laser line.
- Laser Diode Coupling: Focuses slit input from laser diodes.
- Aspect Ratio Modulation: Changes the aspect ratio of images.
- Laser Scanners and Dye Lasers: Used in various laser applications.
- Spectroscopy: Enhances spectroscopic measurements.
- Energy Receivers: Used in linear detectors for energy collection.
- Anamorphic Beam Shaping: Corrects elliptical laser beams into circular shapes using a pair of cylindrical lenses positioned orthogonally.
Kingwin Optics provides high-quality Plano-Convex Cylindrical Lenses suitable for various optical applications. With extensive customization options and rigorous quality control, these lenses meet the demands of researchers and clients worldwide.
