Polarization Beam Combiner
Non-Fiber-Based Design: Utilizes polarization beamsplitter cubes and waveplates rather than fiber-based components.
High Damage Threshold: Suitable for high power applications, ensuring durability and reliability.
Tight Tolerance Control: Ensures precision and optimal performance.
Excellent Transmission: Guarantees optimized working efficiencies for laser systems.
Customizable Specifications: Includes a variety of dimensions and coatings to meet specific requirements.
Applications: Output Power Scaling, Laser Systems, etc.

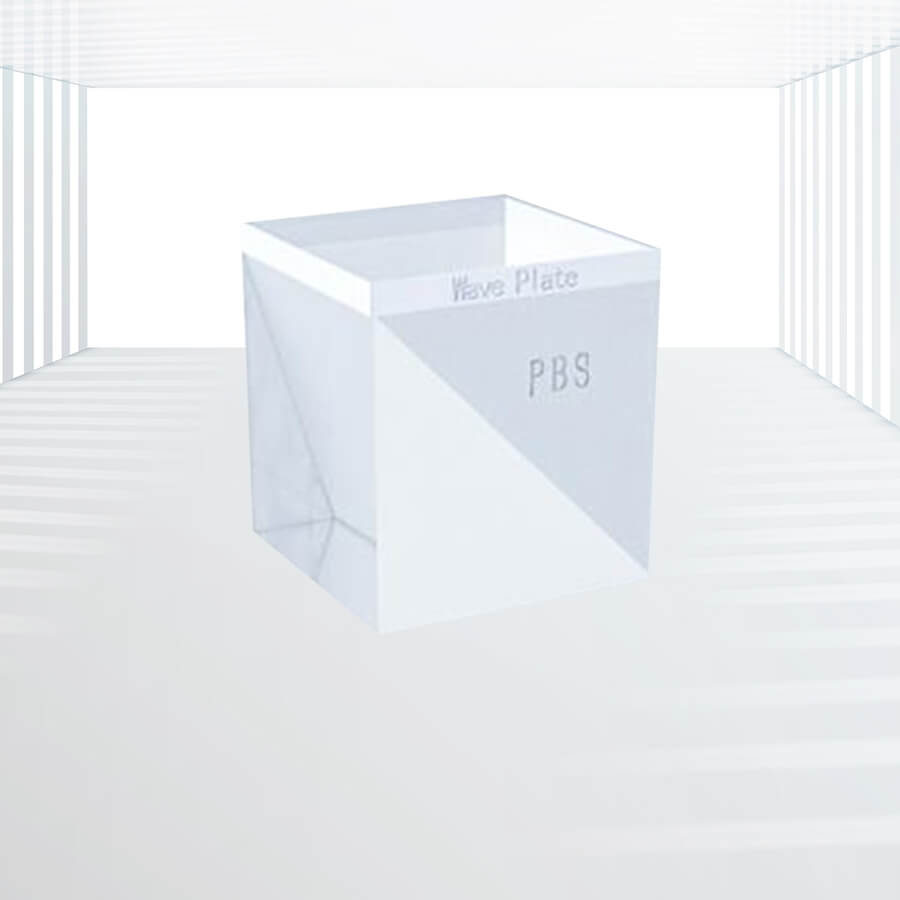

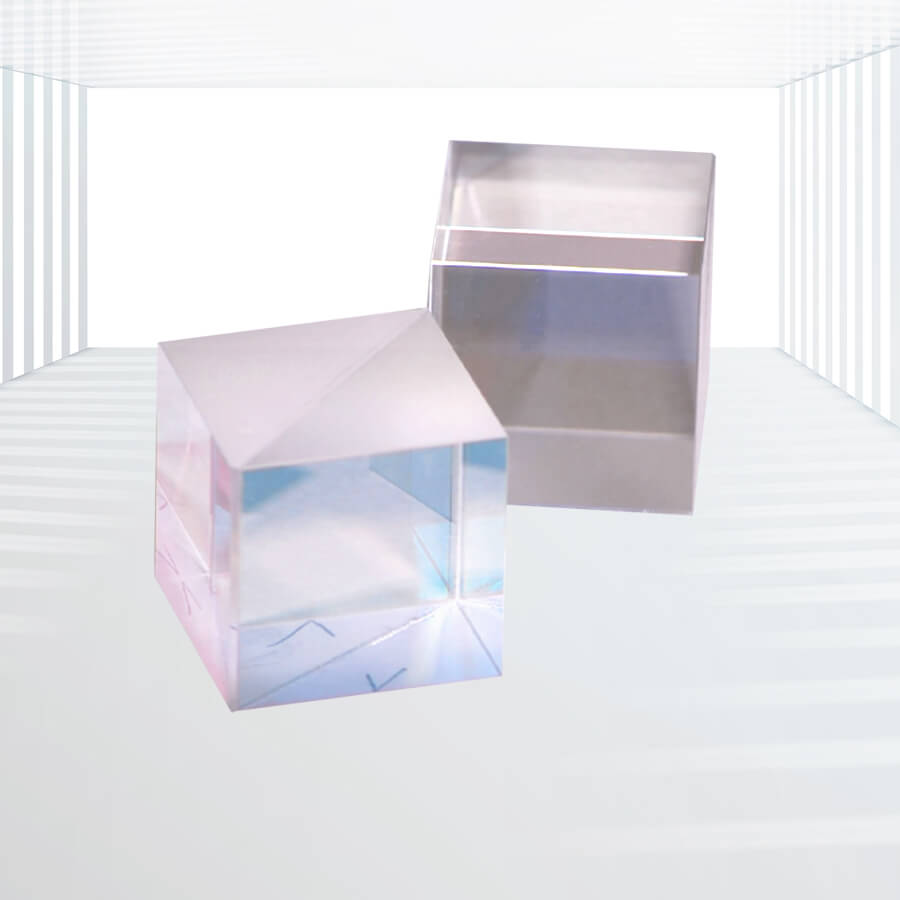

Kingwin Optics’ Polarization Beam Combiner is designed to either converge two perpendicular polarizations into one fiber or separate fiber light into two perpendicular polarizations. This device is composed of a half-waveplate or dual-wavelength waveplate and a polarization beam splitter (PBS) cube. The PBS cubes divide orthogonal polarizations, while the waveplates act as phase retarders.
Specifications:
| Materials | N-BK7/H-K9/N-SF11/UV Fused Silica/Corning 7980/Single Crystal Quartz/MgF2 |
| Side Lengths | 0.8mm, 1mm, 3mm, 5mm, 10mm, 20mm, 30mm, etc. |
| Working Wavelengths | 400-700nm; 808nm; 1064; 1310; 1490; 1550nm; 2000nm, etc. |
| Coatings | AR Coating, Beamsplitter Coating, Au AR Coating, Ag AR Coating, Al AR Coating |
| Surface Quality | 10/5, 20/10, 40/20, 60/40 |
| Surface Flatness | λ/2, λ/4, λ/8, λ/10, etc. |
| Beam Deviation Angle | ±10”, ±30”, ±1’ |
Features:
- Non-Fiber-Based Design: Utilizes polarization beamsplitter cubes and waveplates rather than fiber-based components.
- High Damage Threshold: Suitable for high power applications, ensuring durability and reliability.
- Tight Tolerance Control: Ensures precision and optimal performance.
- Excellent Transmission: Guarantees optimized working efficiencies for laser systems.
- Customizable Specifications: Includes a variety of dimensions and coatings to meet specific requirements.
Applications:
- Output Power Scaling: Ideal for scaling the output power of fiber lasers and various other lasers.
- Laser Systems: Enhances the performance and efficiency of laser systems by managing polarization states effectively.
Kingwin Optics provides highly customizable polarization beam combiners that cater to the needs of high-power laser applications, ensuring precision, durability, and optimal performance.
