Potassium Tantalate (KTaO3) Crystals and Substrates

Versatile Transmission Range: Effective across a broad spectrum, from UV to IR, enhancing its utility in optical and electronic applications.

High Dielectric Constant: Benefits applications requiring high-performance capacitors and other dielectric devices.

Ferroelectric and Piezoelectric Properties: Enables advanced functionalities in memory devices, sensors, and actuators.

High Melting Point: Ensures stability and durability in high-temperature applications.

Applications: Ferroelectric Devices, Substrates for Thin Film Growth, Optical Components, Capacitors and Microwave Devices, Waveguides, Sensors and Actuators, etc.

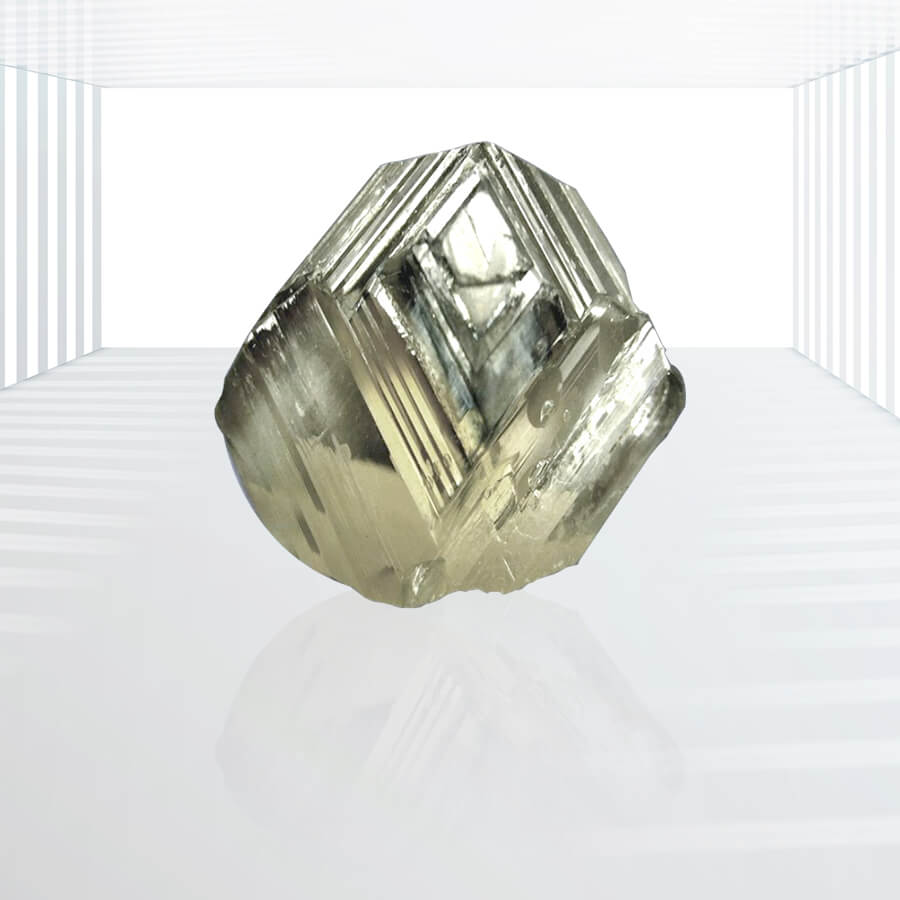

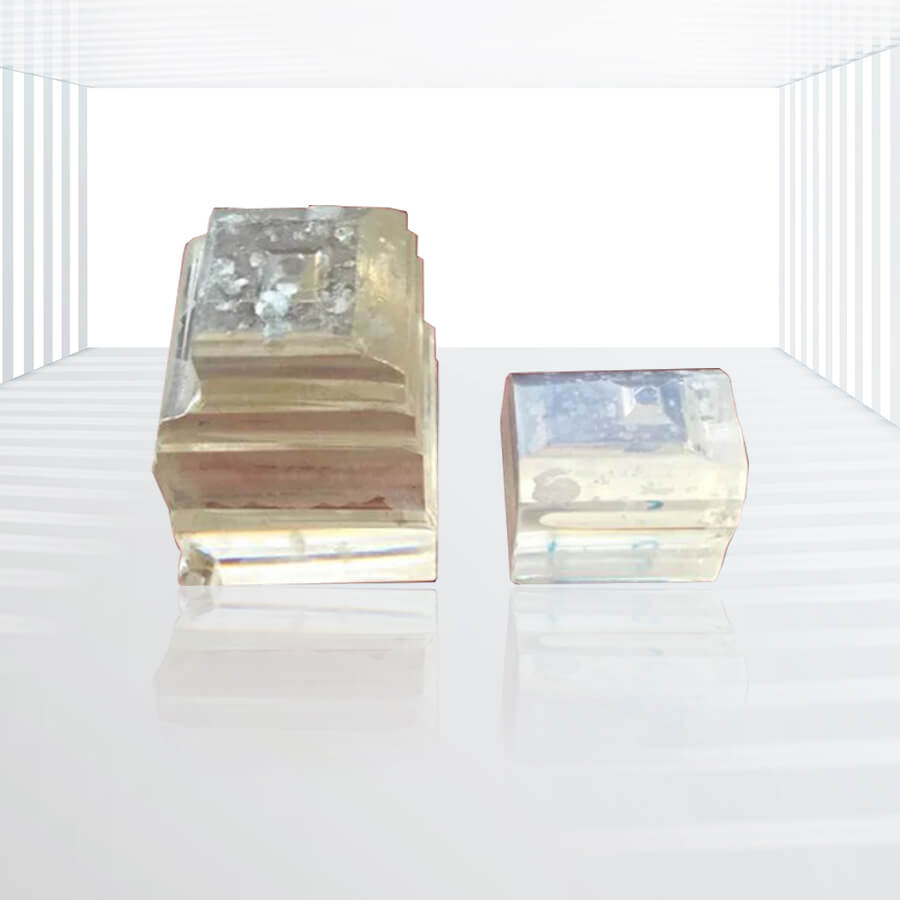

Potassium Tantalate (KTaO3) is a perovskite crystal with a cubic lattice structure, known for its exceptional properties that make it suitable for a wide range of advanced applications.

Specifications:

Molecular formula KTaO3 (KT)
Point group m3m
Unit cell parameters 0.3984nm
Melting point 1352.2℃
Density 7.025 g/cm3
Mohs hardness 6
Growth method Tirafa
Refractive rate 2.226@633nm,   2.152@1539nm
Coefficient of thermal expansion 4.027*10-6/K)
Specific heat (room temperature JK-1 g-1) 0.378
Transparent band (nm). 380~4000
Conventional orientation <100>; <110>; <111>

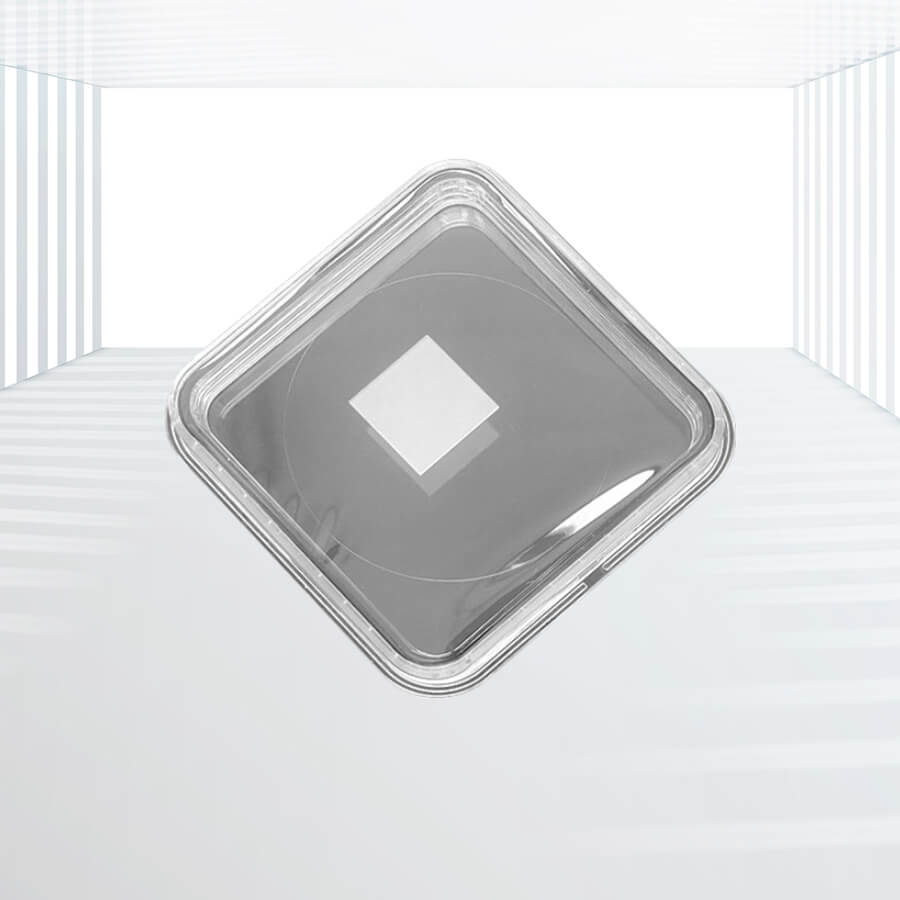

Regular size 20x20x0.5mm; 10x10x0.5mm, 5x5x0.5mm, or according to customer requirements
polished Single throw, double throw, Ra< 5A



Advantages:

  • Versatile Transmission Range: Effective across a broad spectrum, from UV to IR, enhancing its utility in optical and electronic applications.
  • High Dielectric Constant: Benefits applications requiring high-performance capacitors and other dielectric devices.
  • Ferroelectric and Piezoelectric Properties: Enables advanced functionalities in memory devices, sensors, and actuators.
  • High Melting Point: Ensures stability and durability in high-temperature applications.

Applications:

  • Ferroelectric Devices: Memory Devices: Utilized in ferroelectric memory devices due to its ability to switch polarization under an external electric field.
  • Substrates for Thin Film Growth: Perovskite Materials: Ideal for the epitaxial growth of thin films, including complex oxides and high-temperature superconductors.
  • Optical Components: Wide Transmission Range: Suitable for optical applications that require transmission across UV to IR wavelengths.
  • Capacitors and Microwave Devices: High-Performance Capacitors: Due to its high dielectric constant.
  • Waveguides: Optical Waveguides: Used in various waveguide applications due to its optical properties.
  • Sensors and Actuators: Piezoelectric Sensors: Used in devices that convert mechanical stress into electrical signals.

Kingwin Optics provides high-quality Potassium Tantalate (KTaO3) crystals and wafers, leveraging their unique properties for diverse and advanced applications in electronics, optics, and materials science.
