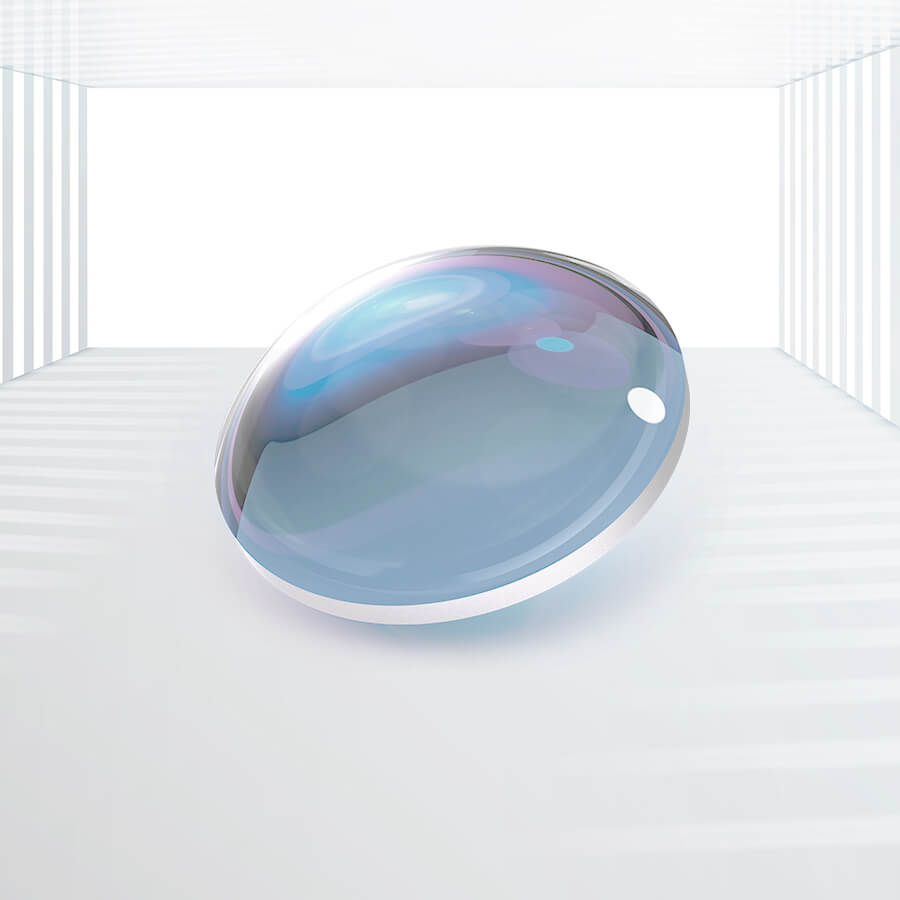

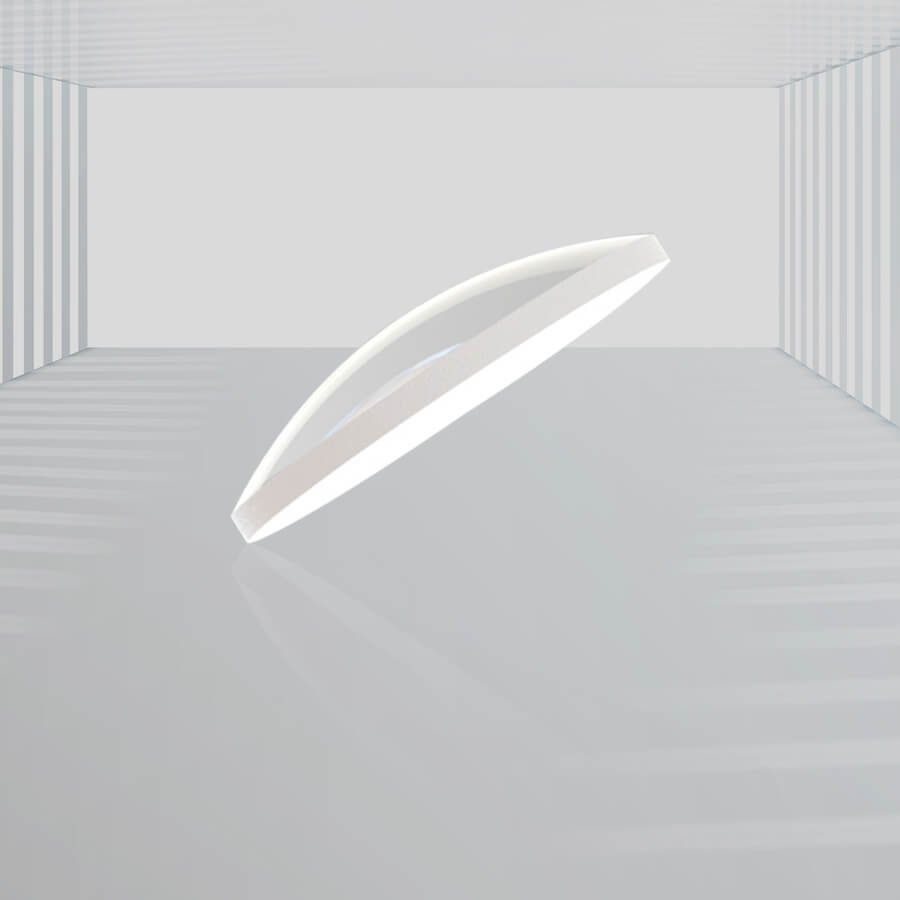

Precision Polished Aspheric Lenses
Wide Transmission Range:
Lenses are available with a transmission range extending from UV to NIR.
Variety of Diameters:
Available diameters range from 5mm to 390mm.
Preforms:
Options include plano-convex/plano-concave lenses, ball/half lenses, meniscus lenses, biconvex/biconcave lenses, and achromatic lenses.
Custom Coatings:
Uncoated substrates.
Broadband Anti-reflection (BBAR) coatings: Average reflection below 0.5% over a certain wavelength range.
Laser line V-coating: Higher transmission with average reflection below 0.25% at a narrower wavelength range.
MgF2 AR coatings: Average reflection below 1.5%, offering a competitive price.
Applications: Optical Communication, Consumer Electronics, Scientific Research, etc.
Kingwin Optics offers precision polished custom aspheric lenses made from various materials, including optical glass (e.g., N-BK7, Fused Silica), Germanium, Zinc Selenide, and Silicon. These lenses are manufactured using advanced techniques such as Computer Numerical Control (CNC) precision polishing and grinding, and Magnetorheological Finishing (MRF), ensuring tight geometric control and high beam quality. For non-glass materials, single-point diamond turning (SPDT) techniques are employed for stringent precision control.
Specifications:
| Material | BK7, fused silica, optical glass, Ge, ZnSe, Silicon |
| Surface Quality | 10/5 S/D to 40/20 S/D (uncoated) |
| Clear Aperture | >90% |
| Diameter Range | 5-390mm |
| Diameter Tolerance | +0.0/-0.03mm |
| Protective Chamfers | 0.3mm max@45° |
| Thickness Tolerance | ±0.02mm |
| EFL Tolerance | ≤0.1% |
| Asphere Figure Error P-V | <0.65 µm |
| Surface Form Deviation RMS | ≤0.5 µm |
| Centration | <30″ |
Key Features:
1.Wide Transmission Range:
- Lenses are available with a transmission range extending from UV to NIR.
2.Variety of Diameters:
- Available diameters range from 5mm to 390mm.
3.Preforms:
- Options include plano-convex/plano-concave lenses, ball/half lenses, meniscus lenses, biconvex/biconcave lenses, and achromatic lenses.
4.Custom Coatings:
- Uncoated substrates.
- Broadband Anti-reflection (BBAR) coatings: Average reflection below 0.5% over a certain wavelength range.
- Laser line V-coating: Higher transmission with average reflection below 0.25% at a narrower wavelength range.
- MgF2 AR coatings: Average reflection below 1.5%, offering a competitive price.
Applications:
1.Optical Communication:
- Fiber Optic Coupling: Aspheric lenses are used to couple light efficiently into optical fibers, reducing signal loss and enhancing data transmission.
- Endoscopes: They provide high-resolution images in medical endoscopy by reducing aberrations and improving light transmission.
2.Consumer Electronics:
- Smartphones: Aspheric lenses are used in smartphone cameras to improve image quality and reduce the number of lens elements, leading to thinner camera modules.
- Virtual Reality (VR) Headsets: They help in reducing distortions and improving the visual experience in VR headsets.
3.Scientific Research:
- Femtosecond Lasers: High-precision aspheric lenses are used in ultrafast laser systems to achieve high-quality beam shaping and focusing.
- Spectroscopy: These lenses improve the performance of spectroscopic instruments by minimizing aberrations.
Kingwin Optics’ Aspheric Lenses offer superior optical performance by reducing aberrations and enabling more compact designs. With a wide range of materials, precise manufacturing techniques, and custom coating options, our aspheric lenses are ideal for various high-performance optical applications.
