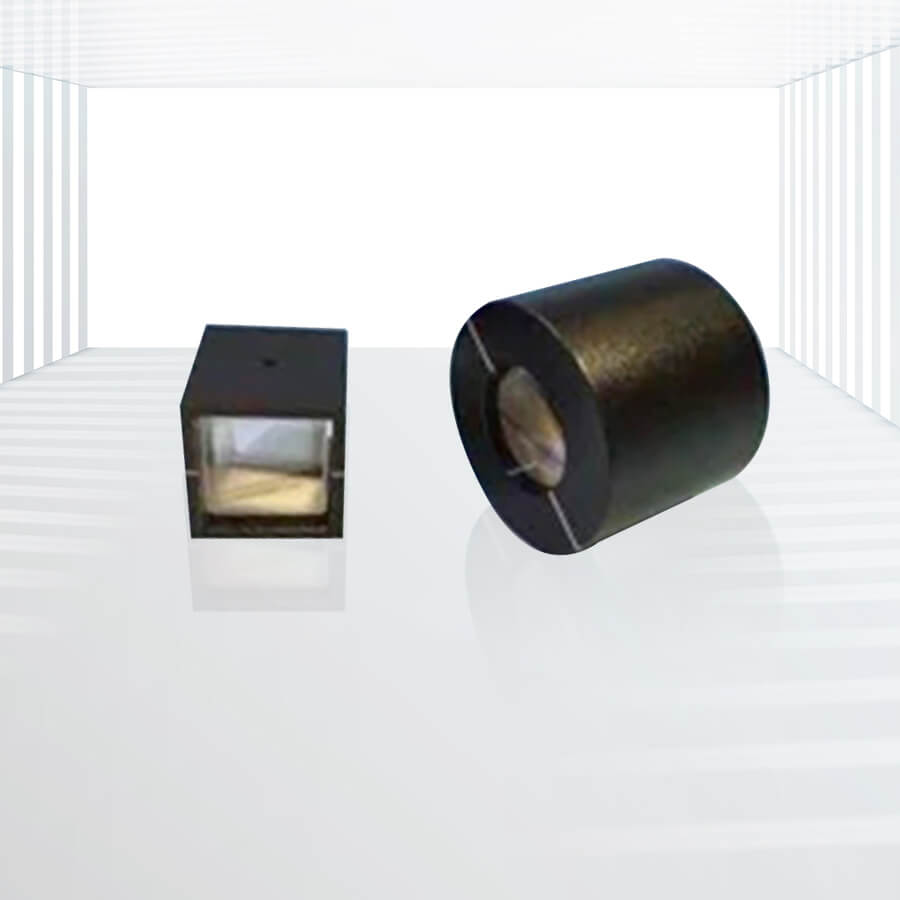

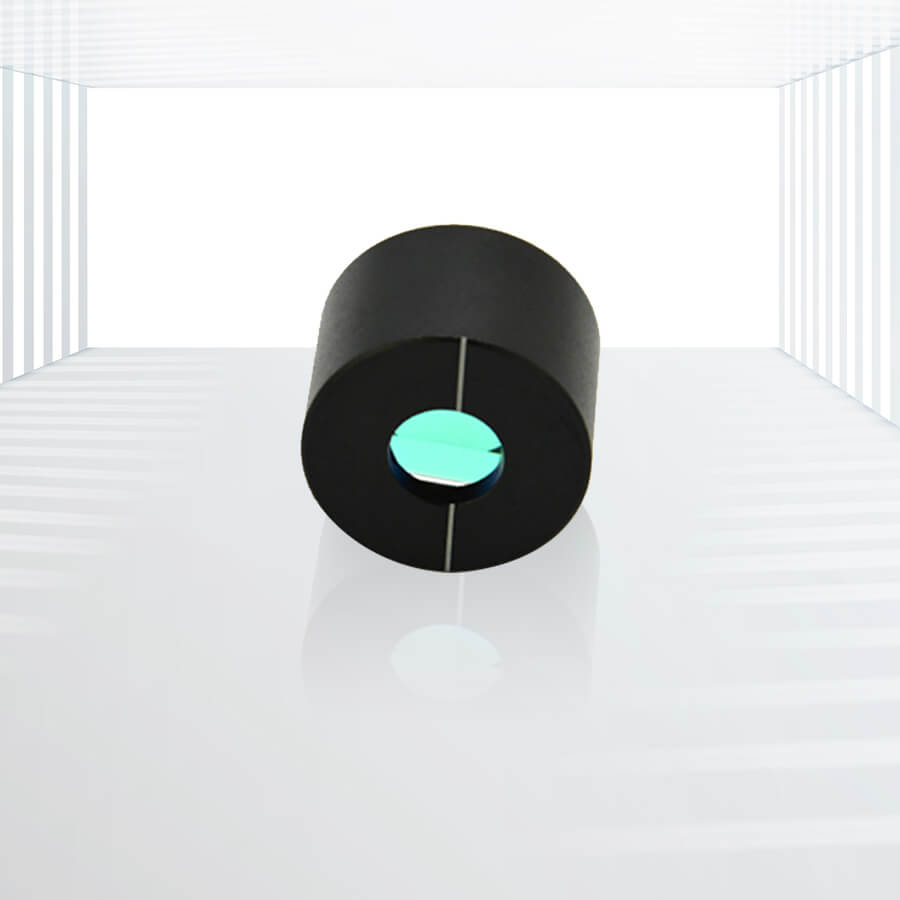

Rochon Prism
Enhanced Polarization Control: The Rochon Prism provides precise control over the polarization of light, allowing for accurate adjustments and optimizations in optical systems.
Wide Spectral Range: Its ability to handle a broad spectrum of light makes it suitable for use in a variety of applications, from visible to infrared wavelengths.
High Efficiency: The prism’s design ensures minimal loss of light during polarization separation, resulting in high overall system efficiency.
Durability and Stability: Manufactured with high-quality materials, the Rochon Prism is built to withstand the rigors of daily use and maintain its performance over time.
Easy Integration: The prism’s compact size and standard mounting options make it easy to integrate into existing optical systems or use as a standalone component.
Applications: Superior Performance, High-Quality Materials, Versatile Application, Compact Design, Easy to Use, etc.
Rochon prisms are usually composed of two prisms of the same negative uniaxial crystal (e.g., YVO4, quartz, calcite or α-BBO) with parallel optical axes to each other, and the prisms are connected by gluing or photoglue processes. This structure allows the prism to handle the incident efficiently.
Specifications:
| Item | MgF2 | Alpha-BBO | Quartz | YVO4 |
| Wavelength Range | 130-7000nm | 190-3500nm | 200-2300nm | 500-4000nm |
| Extinction Ratio | <5×10-5 | <5×10-6 | <5×10-5 | <5×10-6 |
| Surface Quality | 20/10 S/D | |||
| Beam Deviation | < 3 arc minutes | |||
| Wavefront Distortion | <λ/4@633nm | |||
| Damage Threshold | >200MW/cm2@1064nm, 20ns, 20Hz | |||
| Coating | P Coating or AR Coating | |||
| Mount | Black Anodized Aluminium | |||
Features:
- Enhanced Polarization Control: The Rochon Prism provides precise control over the polarization of light, allowing for accurate adjustments and optimizations in optical systems.
- Wide Spectral Range: Its ability to handle a broad spectrum of light makes it suitable for use in a variety of applications, from visible to infrared wavelengths.
- High Efficiency: The prism’s design ensures minimal loss of light during polarization separation, resulting in high overall system efficiency.
- Durability and Stability: Manufactured with high-quality materials, the Rochon Prism is built to withstand the rigors of daily use and maintain its performance over time.
- Easy Integration: The prism’s compact size and standard mounting options make it easy to integrate into existing optical systems or use as a standalone component.
Applications:
- Superior Performance: The Rochon Prism from Kingwin Optics is crafted with precision to ensure optimal performance in polarizing light beams. Its design allows for efficient separation of light into its orthogonal polarization components, making it a valuable tool in optical systems.
- High-Quality Materials: Manufactured using top-grade optical materials, our Rochon Prism guarantees durability and long-term stability. Its precise construction ensures minimal wavefront error and high transmission efficiency.
- Versatile Application: With its ability to handle a broad spectrum of light, the Rochon Prism is suitable for use in various optical setups. It can be easily integrated into existing systems or used as a standalone component for specific applications.
- Compact Design: The prism’s compact size makes it ideal for use in space-constrained optical systems without compromising on performance.
- Easy to Use: Designed for user convenience, the Rochon Prism features standard mounting options for easy integration into optical setups. Its robust design ensures stable operation even in demanding environments.
Our Rochon Prism is designed to excel in a wide range of applications, including but not limited to optical communications, laser systems, imaging equipment, and scientific research equipment. Its unique properties make it ideal for any application that requires precise control of light polarization.
