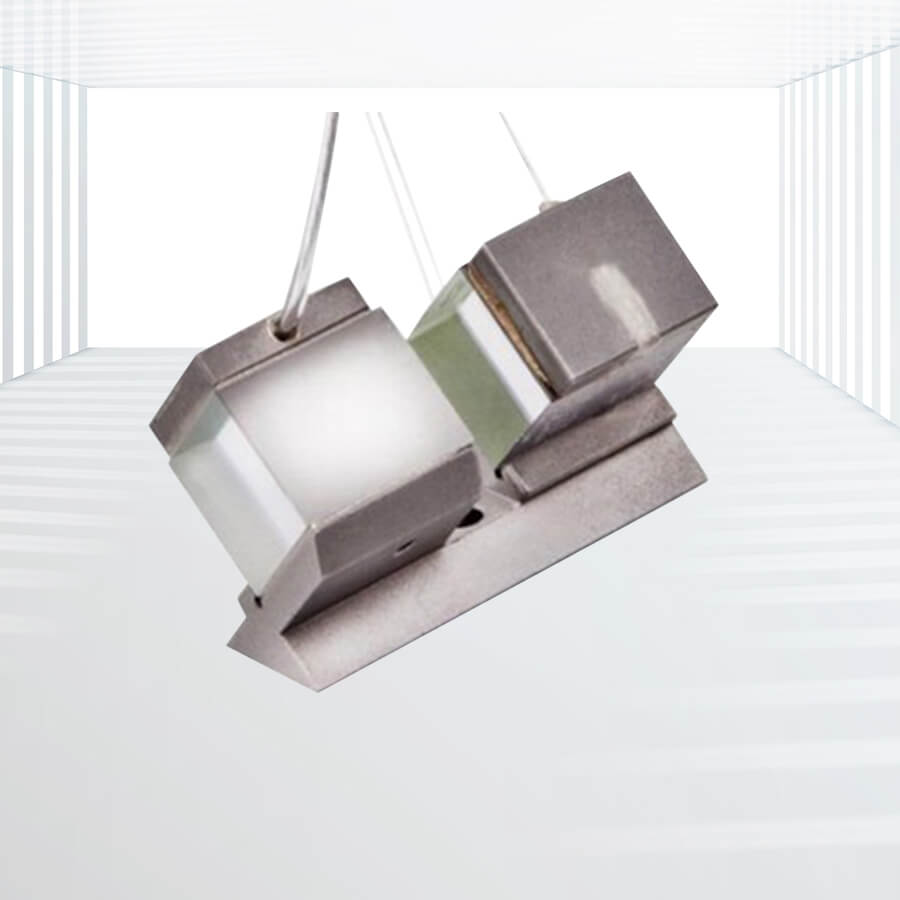

RTP Q-Switch

High Damage Threshold: 600 MW/cm² at 10 ns, 10 Hz at 1064 nm.

Large Nonlinear Optical and Electro-Optical Coefficients: Enhances performance in modulation and nonlinear optical processes.

No Piezoelectric Ringing: Ensures stable operation without signal distortion.

Low Half-Wave Voltage: Efficient and low-voltage operation.

Applications: High-Power Lasers, Laser Ranging and Laser Radar, Medical Lasers, Industrial Manufacturing, Laser Power/Phase Modulation, Pulse Picking, etc.

RTP (RbTiOPO4) crystals are isomorphs of KTP and are utilized in both nonlinear and electro-optical applications. Known for their high damage thresholds and large nonlinear optical and electro-optical coefficients, RTP crystals are an excellent choice for high-power laser applications. They offer advantages such as no piezoelectric ringing and resistance to dampness, while also requiring a low half-wave voltage for operation.

Specifications:

Dimensional Tolerance W(+/-0.1) x H(+/-0.1) x L(+0.5/-0.1) mm
Parallelism ≤5″
Surface Quality 20/10 S/D
Flatness λ/10@633nm
Transmitted Wavefront Distortion λ/6@633nm
Extinction Ratio >20dB
Coating AR@1064nm(R<0.2%), or Custom
Damage Threshold 600MW/cm² 10ns 10Hz at 1064nm



Features:

  • High Damage Threshold: 600 MW/cm² at 10 ns, 10 Hz at 1064 nm.
  • Large Nonlinear Optical and Electro-Optical Coefficients: Enhances performance in modulation and nonlinear optical processes.
  • No Piezoelectric Ringing: Ensures stable operation without signal distortion.
  • Low Half-Wave Voltage: Efficient and low-voltage operation.

Applications:

  • High-Power Lasers: Suitable for applications requiring high peak power output.
  • Laser Ranging and Laser Radar: Effective in distance measurement and radar systems.
  • Medical Lasers: Utilized in various medical treatments.
  • Industrial Manufacturing: Applied in laser systems for manufacturing processes.
  • Laser Power/Phase Modulation: Ideal for modulating laser power and phase.
  • Pulse Picking: Capable of selecting and managing laser pulses.

Kingwin Optics Offerings:

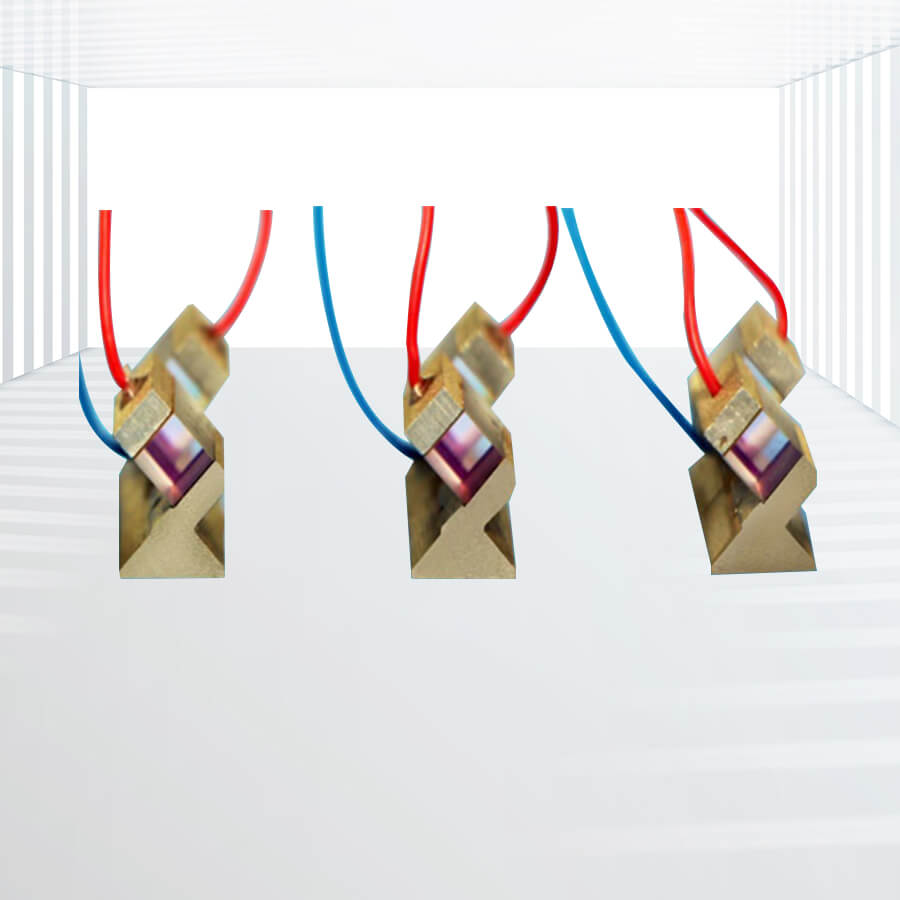

  • Standard RTP Q-Switches: Available in dimensions from 2x2x5 mm to 10x10x5 mm.
  • Custom RTP Q-Switches: Custom dimensions and specifications available upon request.
  • Coatings: Standard 1064 nm anti-reflection coating (R < 0.2%) or other custom coatings.
  • Nonlinear Optical Applications: RTP crystals suitable for a wide range of nonlinear optical applications.

Kingwin Optics provides high-quality RTP Q-Switches and crystals tailored for high-performance and high-power applications. For more information or to check the availability of RTP Q-Switches and crystals, please visit our website.
