Slow Axis Collimators
Beam Shaping: SAC-Lenses reshape the elliptical beam emitted by diode lasers into a more circular or symmetric profile, making it easier to focus or collimate further downstream in optical instruments.
Improved Beam Quality: By reducing the divergence angle along the slow axis, SAC-Lenses enhance the overall quality of the laser output, resulting in a high-quality, symmetric beam profile.
Beam Collimation: In addition to shaping the beam profile, SAC-Lenses collimate the beam along the slow axis, ensuring that the beams remain parallel and maintaining beam integrity over long distances.
Divergence Control: SAC-Lenses effectively control the overall divergence of the laser beam by reducing divergence along the slow axis, leading to better focusing and increased range for applications such as laser cutting or engraving.
Applications: Laser Materials Processing, Medical Applications, Optical Instrumentation, Laser Engraving and Marking, etc.

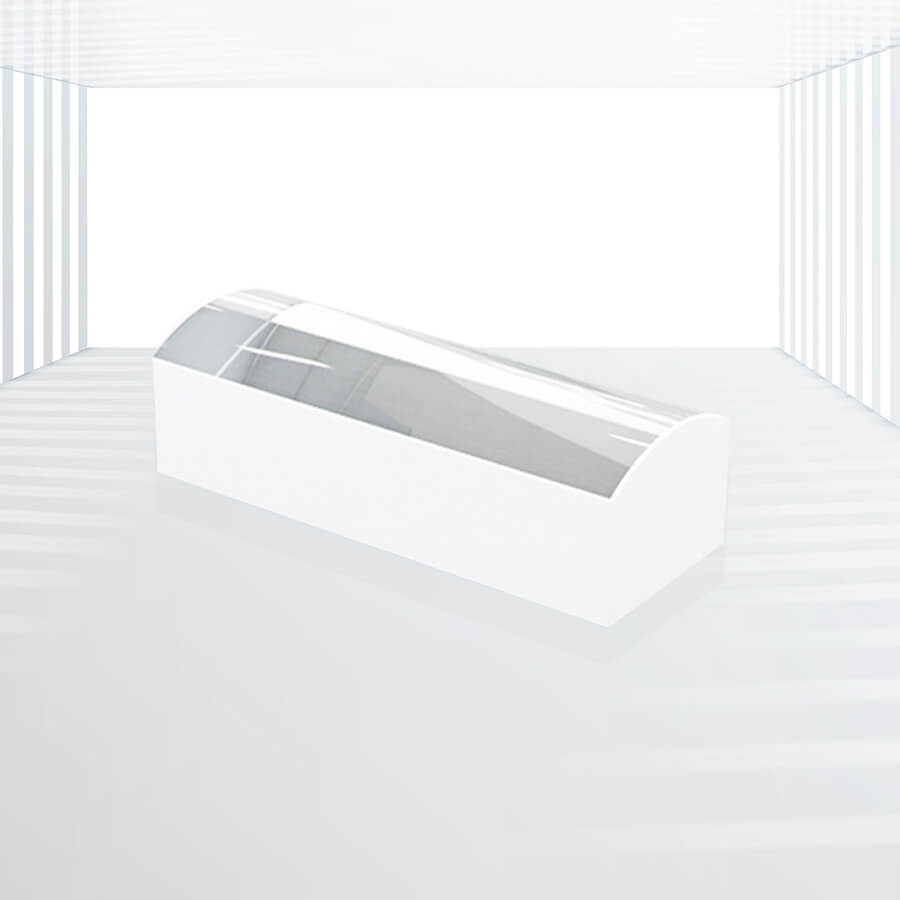

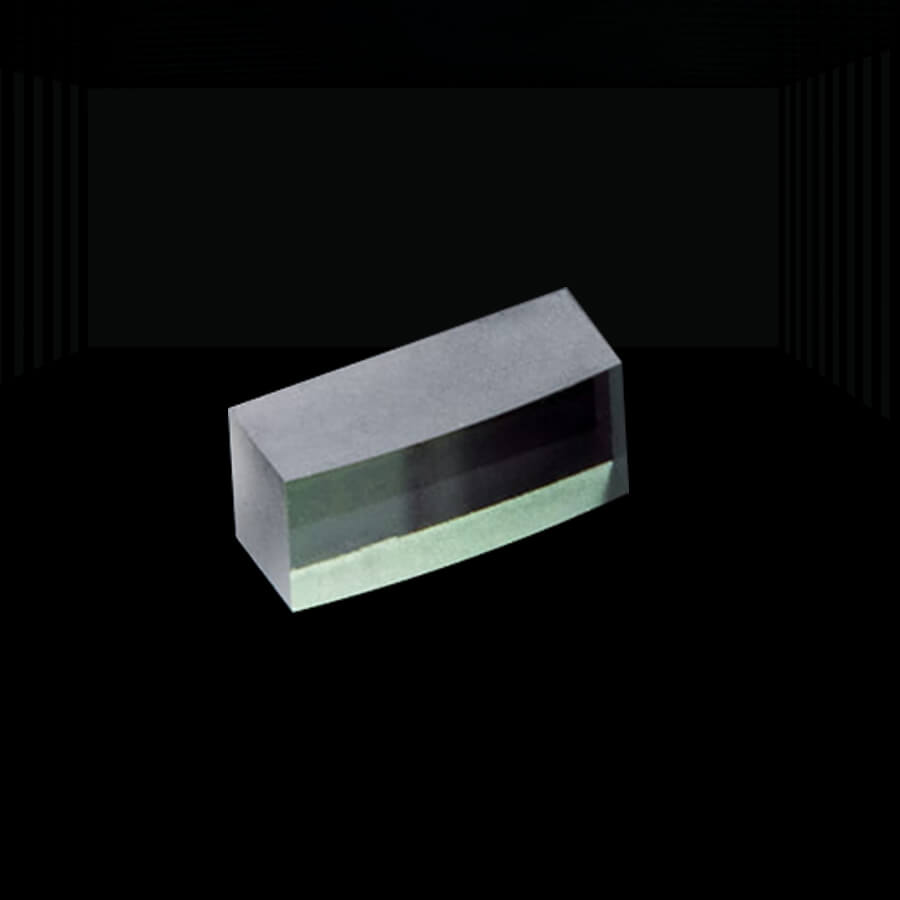

Slow Axis Collimators (SAC-Lenses) are specialized optical components designed for use in lasers, particularly diode lasers. Their primary function is to shape and control the output beam, transforming it from an asymmetric profile to a more symmetrical one.
Specifications:
| Materials | Optical Glass |
| Coating Wavelength Range | 790-990nm |
| Coating | BBAR Coating (790-990nm) |
| Coating Specification | Ravg<1.0%@790-990nm |
| Design Wavelength | 808nm |
| Height Tolerance | ±0.05mm |
| Length Tolerance | ±0.05mm |
| Dimension | Custom |
| Surface Flatness | λ/4 |
| Transmission | >99% |
Features:
- Beam Shaping: SAC-Lenses reshape the elliptical beam emitted by diode lasers into a more circular or symmetric profile, making it easier to focus or collimate further downstream in optical instruments.
- Improved Beam Quality: By reducing the divergence angle along the slow axis, SAC-Lenses enhance the overall quality of the laser output, resulting in a high-quality, symmetric beam profile.
- Beam Collimation: In addition to shaping the beam profile, SAC-Lenses collimate the beam along the slow axis, ensuring that the beams remain parallel and maintaining beam integrity over long distances.
- Divergence Control: SAC-Lenses effectively control the overall divergence of the laser beam by reducing divergence along the slow axis, leading to better focusing and increased range for applications such as laser cutting or engraving.
Applications:
- Laser Materials Processing: SAC-Lenses are essential for applications that require a high-quality, symmetric beam profile, such as laser cutting, welding, and marking.
- Medical Applications: The improved beam quality and collimation provided by SAC-Lenses make them ideal for medical applications like laser surgery and therapy.
- Optical Instrumentation: SAC-Lenses are used in optical instruments to shape and control the laser beam, ensuring precise and accurate measurements.
- Laser Engraving and Marking: The ability of SAC-Lenses to control divergence and improve beam quality makes them suitable for laser engraving and marking applications.
Kingwin Optics offers Custom Slow Axis Collimators (SAC-lenses) with high-precision fabrication, resulting in low scattering and crosstalk, and featuring AR coatings. Our products are manufactured in a clean environment with strict inspection procedures to minimize deviation from published standards. Our SAC-Lenses are optimized for collimating individual emitters of a laser bar and are compatible with various laser bars and laser stacks, capable of handling high power densities. We offer flexible custom designs tailored to specific requirements, and recommend combined usage with our Fast-Axis-Collimators for optimal performance.
