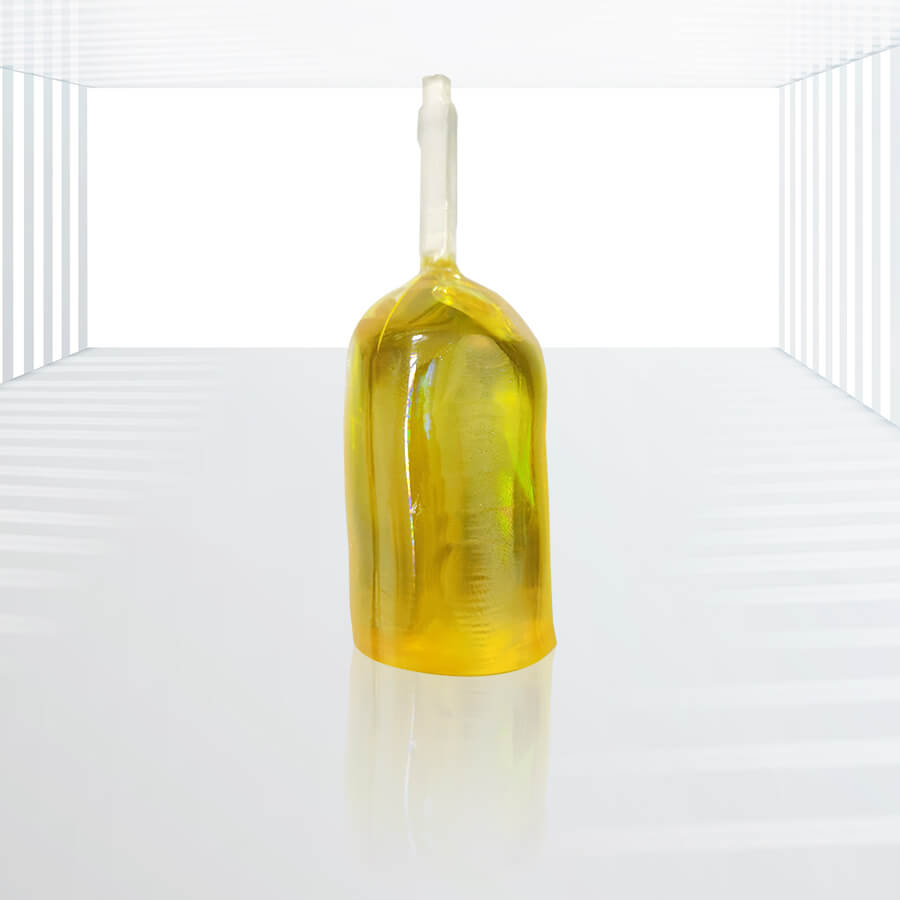

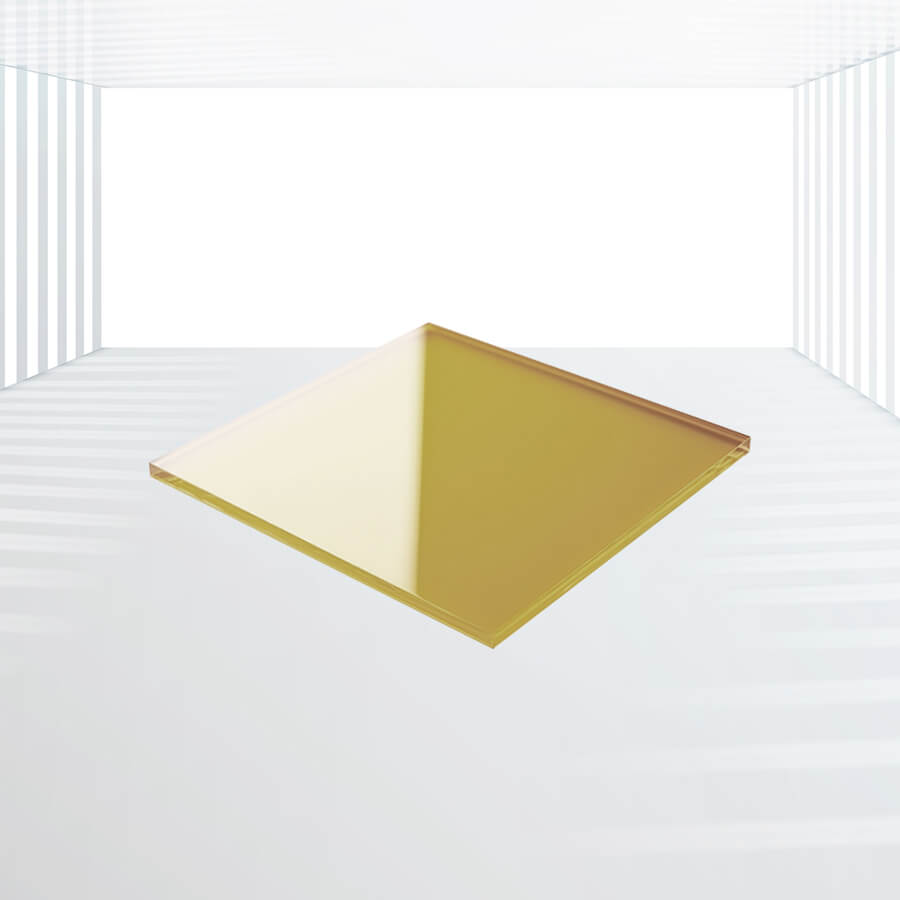

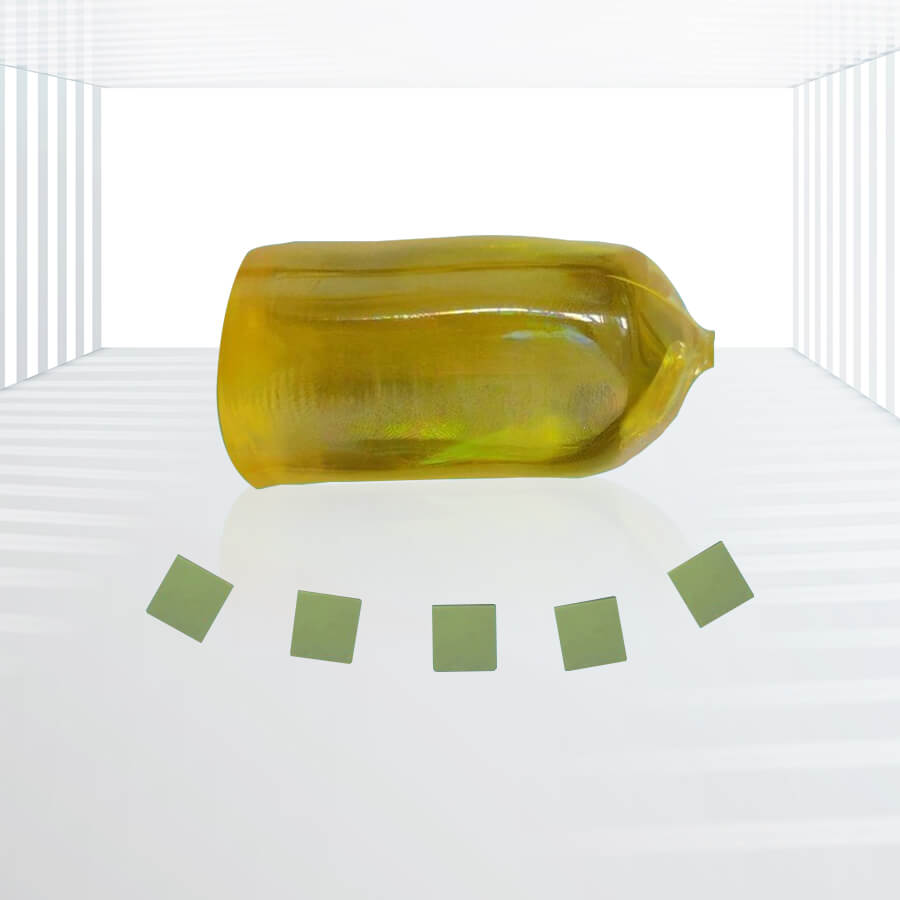

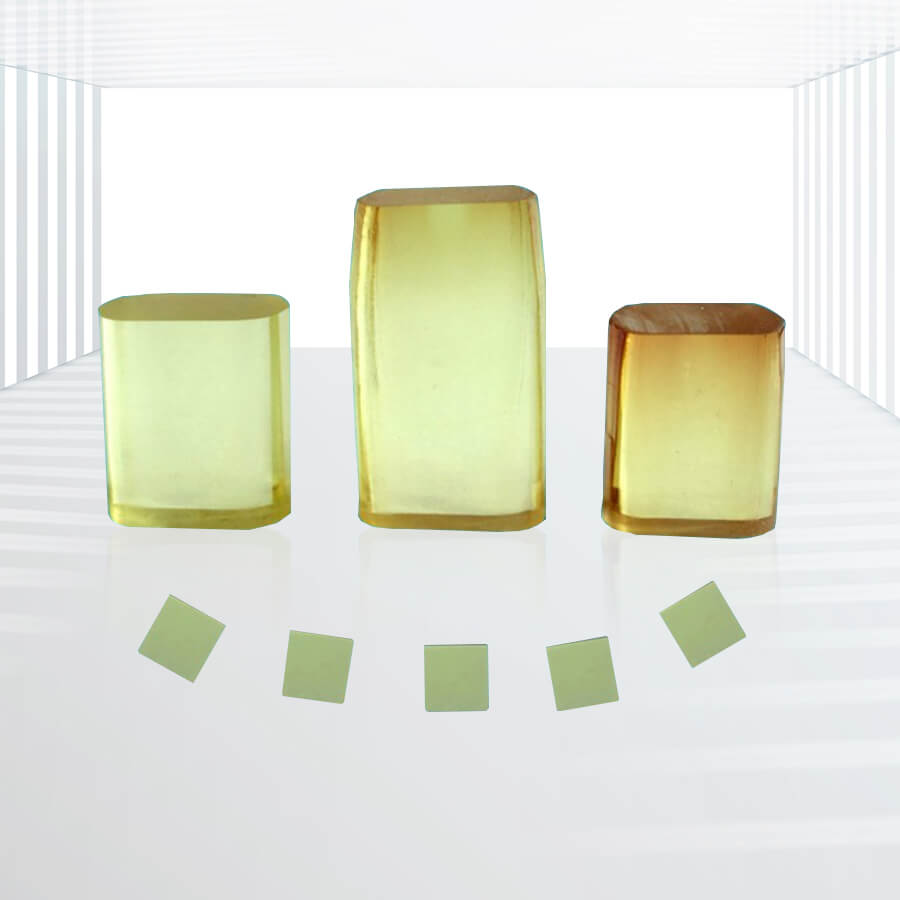

SrLaAlO4 (Strontium Lanthanum Aluminate) Crystal Wafers
Perovskite Structure: Shares similarities with SrTiO3 but offers a more stable structure with fewer defects.
Lattice Match: Excellent compatibility with high-temperature superconductors like Yttrium Barium Copper Oxide (YBCO), facilitating the growth of high-Tc superconducting films.
Thermal Expansion: Lower thermal expansion coefficients compared to other perovskite crystals, which improves lattice matching and reduces stress during film growth.
Dielectric Properties: Low dielectric constants make it superior for microwave and high-frequency applications.
Applications: High-Temperature Superconductors, Microwave and High-Frequency Devices, Epitaxial Growth, Advanced Material Research, etc.
Strontium Lanthanum Aluminate (SrLaAlO4) is a perovskite crystal noted for its stability and suitability for various advanced applications.
Specifications:
Main performance parameters | |
crystal system | square |
Growth method | Tirafa |
Lattice constant | a=3.756Å c=12.63 Å |
Melting point (°C) | 1650 |
density | 5.92(g/cm3) |
hardness | 6-6.5(mohs) |
The dielectric constant ε | ~ 22 |
size | 10×3,10×5,10×10,15×15,,20×15,20×20, |
Ф15,Ф20,Ф1″,Ф2″ | |
thickness | 0.5mm,1.0mm |
polished | Single-sided or double-sided |
Crystal orientation | <001> |
Plane orientation accuracy: | ±0.5° |
Edge Orientation Accuracy: | 2° (up to 1° for special requirements) |
Beveled wafers | Wafers with edge-oriented crystal planes inclined at specific angles (1°-45°) can be processed according to specific needs |
Ra: | ≤5Å(5µm×5µm) |
wrap | Class 100 clean bag, Class 1000 clean room |
Key Features:
- Perovskite Structure: Shares similarities with SrTiO3 but offers a more stable structure with fewer defects.
- Lattice Match: Excellent compatibility with high-temperature superconductors like Yttrium Barium Copper Oxide (YBCO), facilitating the growth of high-Tc superconducting films.
- Thermal Expansion: Lower thermal expansion coefficients compared to other perovskite crystals, which improves lattice matching and reduces stress during film growth.
- Dielectric Properties: Low dielectric constants make it superior for microwave and high-frequency applications.
Applications:
- High-Temperature Superconductors: Ideal for growing YBCO and other perovskite structure superconducting films, thanks to its excellent lattice match and stability.
- Microwave and High-Frequency Devices: The low dielectric constant makes it advantageous for applications involving microwaves and high-frequency electronics.
- Epitaxial Growth: Suitable for epitaxial growth processes where stable substrates are required.
- Advanced Material Research: Used in research settings for developing and studying new materials and thin films.
Kingwin Optics provides custom Strontium Lanthanum Aluminate (SrLaAlO4) crystal wafers designed to meet the demanding needs of high-temperature superconductors and high-frequency applications. Our custom wafers are crafted to support cutting-edge research and development, ensuring high-quality substrates for a variety of advanced technologies.
