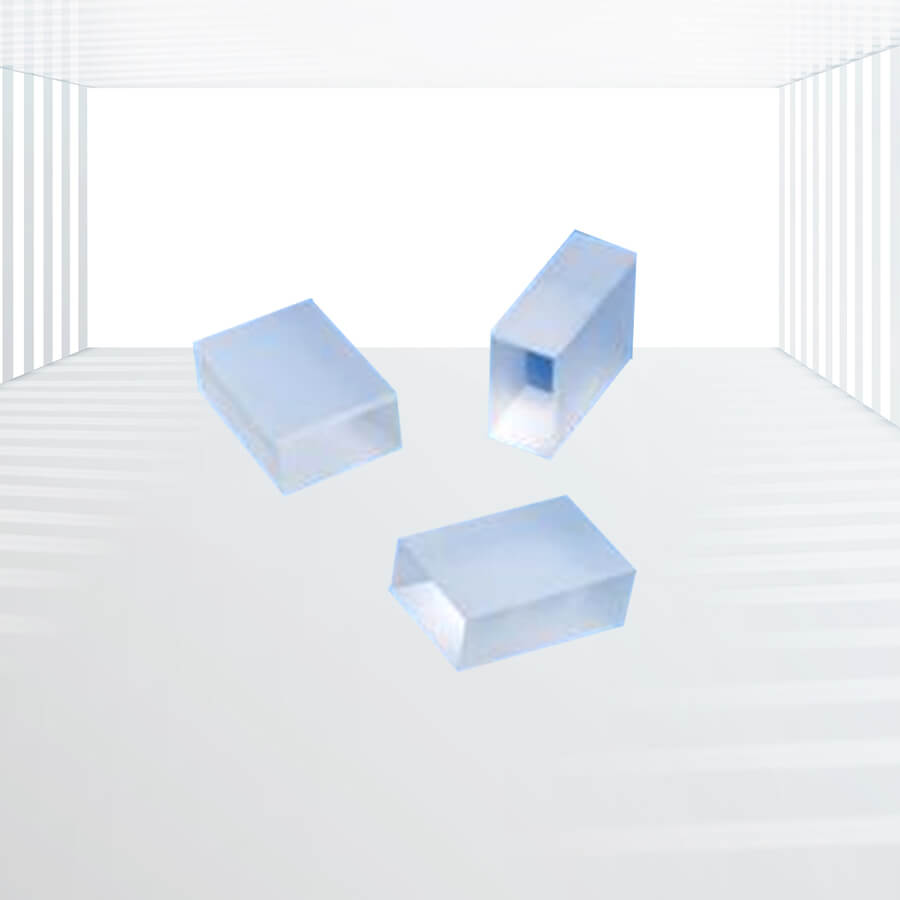

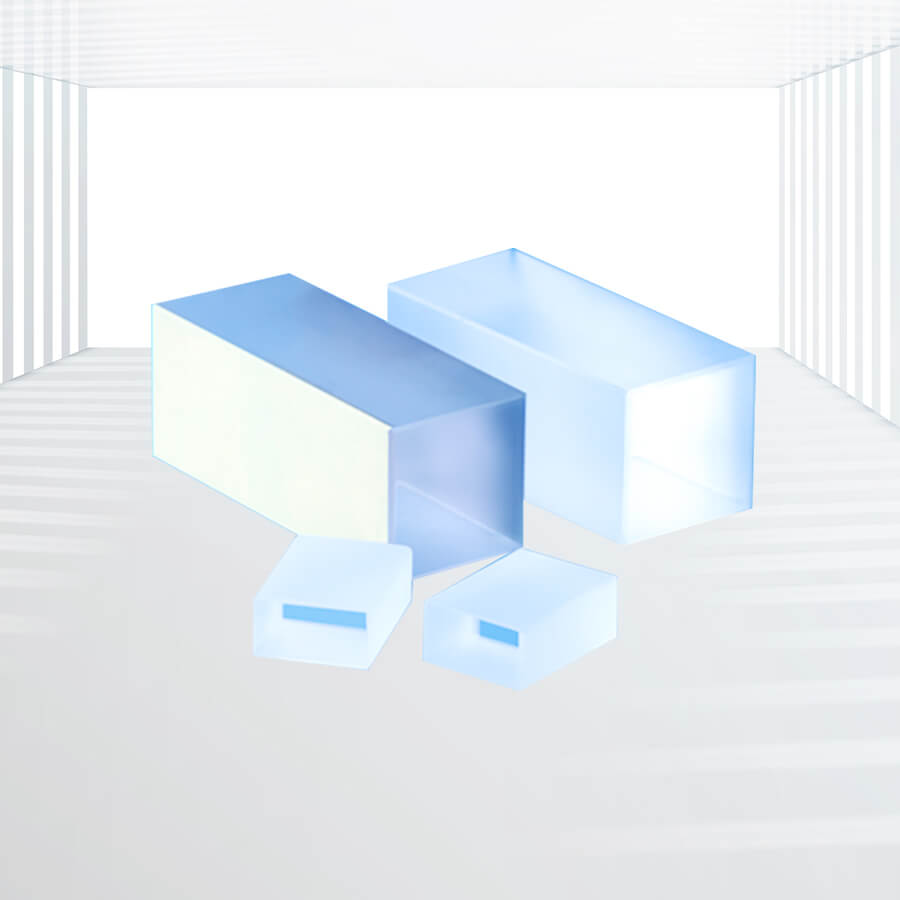

TSAG Crystals
Higher Performance: TSAG crystals exhibit stronger functionalities compared to TGG crystals.
Verdet Constants: High Verdet constants indicate the material’s strong ability to induce Faraday rotation.
Thermal Stability: Low thermal-induced birefringence ensures stable performance under varying thermal conditions.
Mechanical Strength: TSAG crystals have excellent mechanical characteristics, making them suitable for high-power lasers.
Wide Transmission Range: TSAG crystals have a broad transmission range from 400nm to 1600nm, covering both visible (VIS) and near-infrared (NIR) zones.
Compact Designs: The material properties allow for the design of compact and efficient optical devices.
Applications: Faraday Optical Isolators, Faraday Rotators and Circulators, Scintillators, etc.
TSAG crystal is an advanced magneto-optical material used in the manufacturing of Faraday optical isolators for next-generation fiber lasers. Faraday isolators are essential optical elements that mitigate undesirable feedback in lasers with continuous waves and repetitive pulses, which can cause detrimental thermal effects.
Specifications:
| Orientation | Within ±15 arc min |
| Extinction Ratio | >30dB |
| Length Tolerance | ±0.2mm |
| Diameter Tolerance | +0mm/-0.05mm |
| Surface Flatness | <λ/10@633nm |
| Surface Quality | 10/5 S/D |
| Wavefront Distortion | <λ/8 |
| Parallelism | 3 arc min |
| Perpendicularity | <5 arc min |
| AR Coating | Ravg0.3% @1064nm |
| Chamfer | 0.1mm, 45° |
Advantages:
- Higher Performance: TSAG crystals exhibit stronger functionalities compared to TGG crystals.
- Verdet Constants: High Verdet constants indicate the material’s strong ability to induce Faraday rotation.
- Thermal Stability: Low thermal-induced birefringence ensures stable performance under varying thermal conditions.
- Mechanical Strength: TSAG crystals have excellent mechanical characteristics, making them suitable for high-power lasers.
- Wide Transmission Range: TSAG crystals have a broad transmission range from 400nm to 1600nm, covering both visible (VIS) and near-infrared (NIR) zones.
- Compact Designs: The material properties allow for the design of compact and efficient optical devices.
Applications:
- Faraday Optical Isolators: Essential for high-power fiber lasers to prevent feedback that can cause thermal damage.
- Faraday Rotators and Circulators: Used in optical systems to manage the direction of light and prevent back reflections.
- Scintillators: Utilized in integrated radiation detectors and scintillation screens for detecting and measuring ionizing radiation.
Kingwin Optics offers Czochralski-grown precision-polishing TSAG Crystals for Optical Isolators, Faraday Rotators, and Circulators. The Crystals are of superior surface quality (10/5 S/D) and furnished with transmission rate AR coatings. We are capable of growing TSAG crystals with large apertures and distinguished qualities.
