YSZ (Yttria Stabilized Zirconia) Crystals and Substrates

Moderate Cost: YSZ substrates offer a cost-effective solution for various applications.

Wear-Resistance: The material exhibits high wear resistance, making it suitable for demanding applications.

Good Match with Oxides: YSZ substrates have good compatibility with multiple single and multiplication oxides, allowing for versatile use in different applications.

Early Application in Superconducting Thin Films: YSZ was one of the earliest materials used for stabilizing high-temperature superconducting thin films of YBCO.

Applications: Solid Oxide Fuel Cells (SOFCs), Thermal Barrier Coatings (TBCs), Oxygen Sensors, Medical Implants, Electronics, etc.

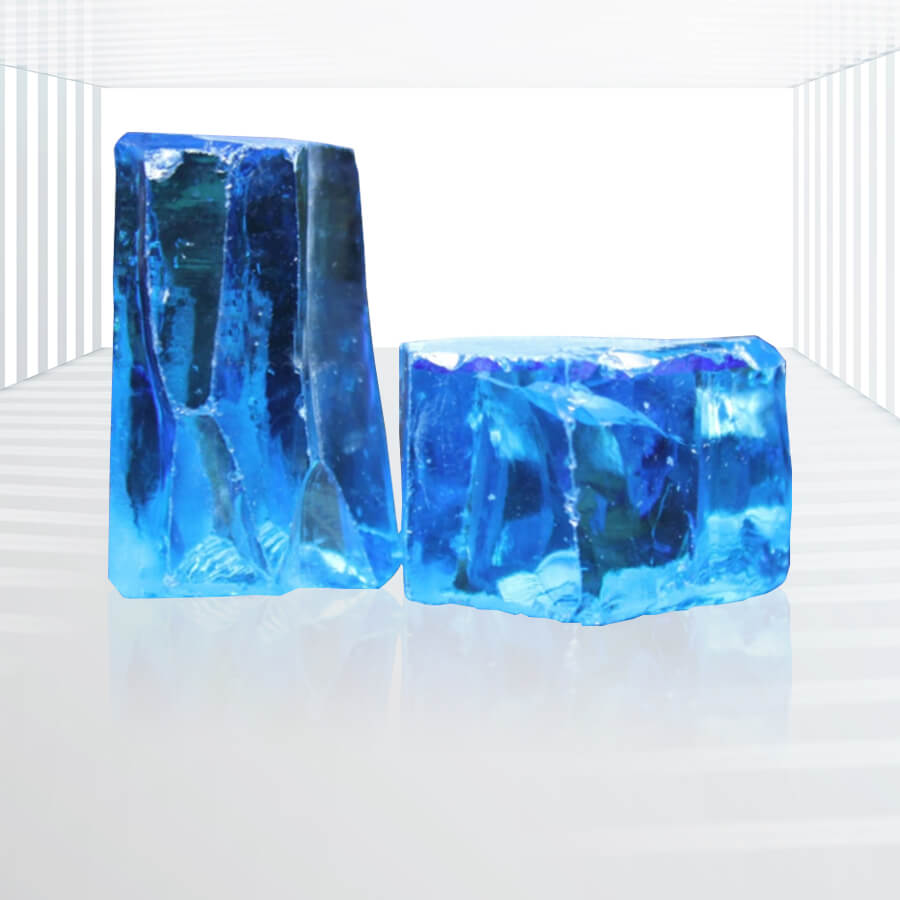

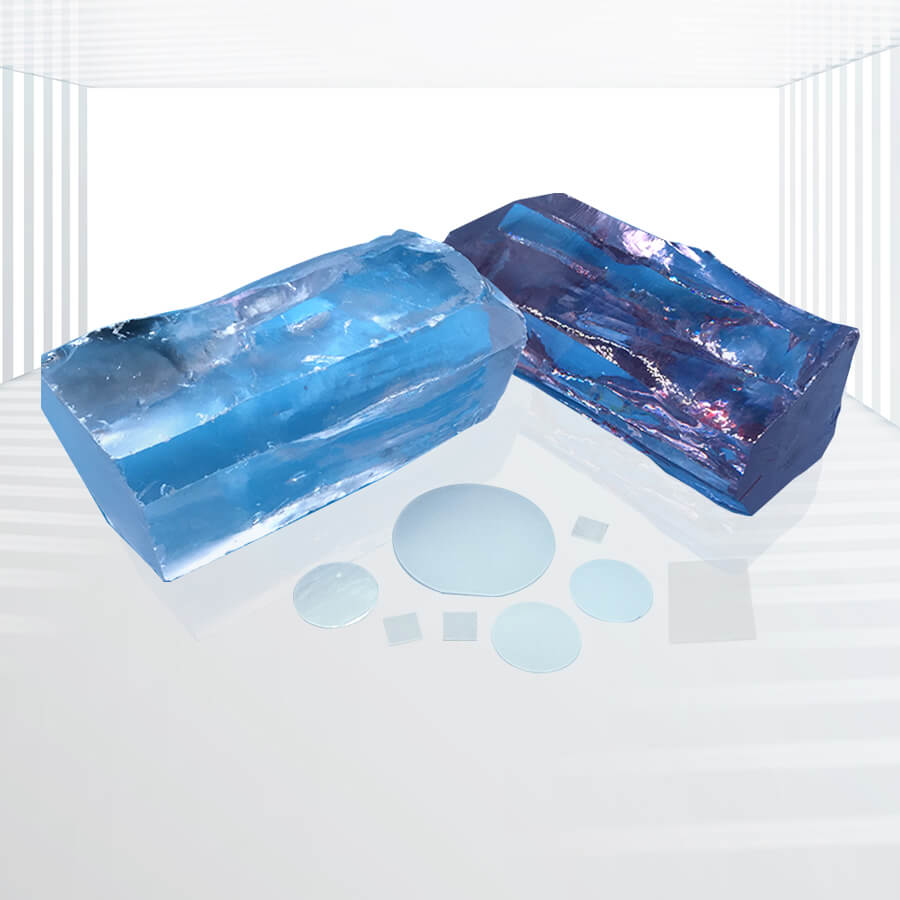

Kingwin Optics’ Yttria Stabilized Zirconia (YSZ) single-crystal substrate is a high-quality material manufactured by adding 8-13 mol% of Yttrium to Zirconium Oxide (Zirconia) melts. This addition acts as a stabilizer, preventing the Zirconia from breaking up during the cooling process. The resulting YSZ single crystals offer moderate cost, excellent wear-resistance, and good compatibility with multiple single and multiplication oxides.

Specifications:

Molecular formula KTaO3 (KT)
Point group m3m
Unit cell parameters 0.3984nm
Melting point 1352.2℃
Density 7.025 g/cm3
Mohs hardness 6
Growth method Tirafa
Refractive rate 2.226@633nm,   2.152@1539nm
Coefficient of thermal expansion 4.027*10-6/K)
Specific heat (room temperature JK-1 g-1) 0.378
Transparent band (nm). 380~4000
Conventional orientation <100>; <110>; <111>
Regular size 20x20x0.5mm; 10x10x0.5mm, 5x5x0.5mm, or according to customer requirements
polished Single throw, double throw, Ra< 5A



Key Benefits:

  • Moderate Cost: YSZ substrates offer a cost-effective solution for various applications.
  • Wear-Resistance: The material exhibits high wear resistance, making it suitable for demanding applications.
  • Good Match with Oxides: YSZ substrates have good compatibility with multiple single and multiplication oxides, allowing for versatile use in different applications.
  • Early Application in Superconducting Thin Films: YSZ was one of the earliest materials used for stabilizing high-temperature superconducting thin films of YBCO.

Applications:

  • Solid Oxide Fuel Cells (SOFCs): Electrolytes: YSZ is commonly used as an electrolyte material in SOFCs due to its high ionic conductivity and stability at elevated temperatures, enabling efficient energy conversion.
  • Thermal Barrier Coatings (TBCs): Aerospace and Power Generation: YSZ is used as a coating material to protect components from high temperatures, extending the lifespan of turbine blades and other critical parts.
  • Oxygen Sensors: Automotive and Industrial Applications: YSZ is used in oxygen sensors for monitoring and controlling combustion processes, ensuring optimal performance and emissions control.
  • Medical Implants: Dental and Orthopedic Applications: Due to its biocompatibility and mechanical properties, YSZ is used in dental crowns, hip replacements, and other medical implants.
  • Electronics: Substrates for Thin Film Growth: YSZ substrates are used for the epitaxial growth of thin films in electronic devices, including high-temperature superconductors and ferroelectric materials.

Kingwin Optics offers high-quality Yttria Stabilized Zirconia (YSZ) crystals and substrates, catering to a wide range of applications in energy, electronics, healthcare, and industrial sectors. Their unique properties make them indispensable in advancing technology and improving performance across various fields.
